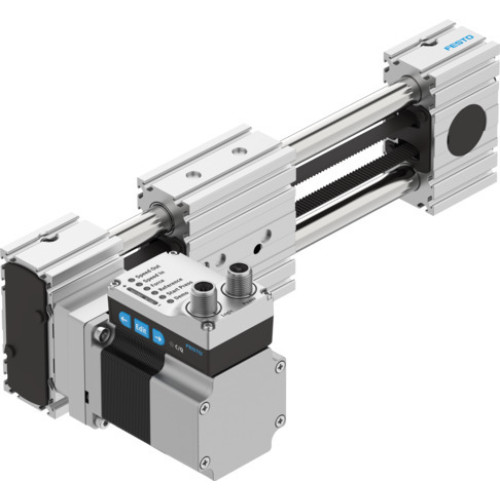

ELGE-TB-35-200-0H-ST-M-H1-PLK-AA-AT-FR Toothed belt axis unit

Manufacturer's No: ELGE-TB-35-200-0H-ST-M-H1-PLK-AA-AT-FR     Manufacturer: Festo
ELGE-TB-35-200-0H-ST-M-H1-PLK-AA-AT-FR Toothed belt axis unit

Availability Back Order

£1,024.04
  • Toothed belt axis unit
  • Effective diameter of drive pinion: 18.46 mm
  • Working stroke: 200 mm
  • Size: 35
  • Toothed-belt stretch: 0.094%
  • Toothed-belt pitch: 2 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED
  • Max. acceleration: 8.5 m/s²
  • Max. speed: 1.08 m/s
  • Repetition accuracy: ±0.1 mm
  • Features of digital logic outputs: Configurable, not galvanically isolated
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA, max. current consumption: 5300 A, logic: 0.3 A
  • Nominal voltage DC: 24 V, nominal current: 5.3 A
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Power supply: Plugs, M12x1, T-coded according to EN 61076-2-111, 4 pins/wires, connection pattern: 995989
  • Approvals: RCM trademark, KC mark: KC-EMV, CE mark: EU EMC Directive, EU RoHS Directive, UKCA marking: UK instructions for EMC, UK RoHS instructions
  • Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP20, protection class: III
  • Ambient temperature: 0°C to 50°C, power must be reduced by 2% per K at ambient temperatures above 30°C
  • Max. force: Fy: 50 N, Fz: 50 N
  • Max. moment: Mx: 2.5 Nm, My: 8 Nm, Mz: 8 Nm
  • Max. feed force: Fx: 50 N
  • Reference value effective load, horizontal: 2.8 kg
  • Feed constant: 58 Y13
  • Reference service life: 5000 km, maintenance interval: Life-time lubrication
  • Additional moving mass per 10 mm stroke: 0.31 g
  • Product weight: 2990 g
  • Number of digital logic outputs 24 V DC: 2, number of digital logic inputs: 2
  • Specification logic input: Based on IEC 61131-2, type 1, working range: 24 V
  • IO-Link, SIO-Mode support: Yes
  • Features of logic input: Configurable, not galvanically isolated
  • IO-Link, Protocol version: Device V 1.1, communication mode: COM3 (230.4 kBaud), Port class: A, Number of ports: Device 1
  • IO-Link, Process data length IN/OUT: 2 bytes, content: Move in/out 1 bit, Quit Error 1 bit, Move intermediate 1 bit, State Device/In/Intermediate/Move/Out 1 bit, 32-bit force/position/speed
  • IO-Link, Min. cycle time: 1 ms, Data storage required: 500 KB
  • Max. cable length: 15 m outputs/inputs, 20 m with IO-Link® operation
  • Switching logic for outputs/inputs: PNP (positive switching)
  • IO-Link, connection technology: Plugs
  • Logic interface, connection type: Plug, technology: M12x1, A-coded according to EN 61076-2-101, 8 pins/wires, plug pattern: 992264
  • Type of mounting: Profile mounting
  • Material profile: Anodised wrought aluminium alloy, RoHS-compliant
  • Material drive cover: Anodised wrought aluminium alloy
  • Material pulleys: High-alloy stainless steel
  • Material slide: Anodised wrought aluminium alloy
  • Material toothed belt clamping piece: Beryllium bronze
  • Material toothed belt: Polychloroprene with glass filament and nylon coating

Accessories

ZBH-7-B Centring sleeve

Product Code - 8146544
Price £1.32
Back Order


Product

Manufacturer Material ID -
ELGE-TB-35-200-0H-ST-M-H1-PLK-AA-AT-FR
Net Weight -
2.83kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
