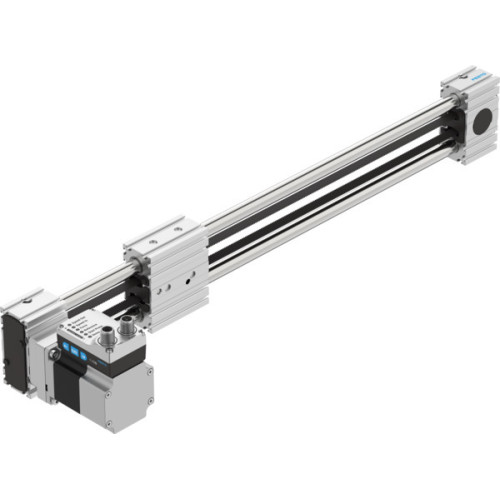

ELGE-TB-35-500-0H-ST-M-H1-PLK-AA-AT-FR Toothed belt axis unit

Manufacturer's No: ELGE-TB-35-500-0H-ST-M-H1-PLK-AA-AT-FR     Manufacturer: Festo
ELGE-TB-35-500-0H-ST-M-H1-PLK-AA-AT-FR Toothed belt axis unit

Availability Back Order

£1,048.62
  • ELGE-TB-35-500-0H-ST-M-H1-PLK-AA-AT-FR Toothed belt axis unit
  • Effective diameter of drive pinion: 18.46 mm
  • Working stroke: 500 mm
  • Size: 35
  • Toothed-belt stretch: 0.094%
  • Toothed-belt pitch: 2 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder and proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature and integrated precise CMOS temperature sensor
  • Additional functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. acceleration: 8.5 m/s²
  • Max. speed: 1.2 m/s
  • Repetition accuracy: ±0.1 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA
  • Max. current consumption: 5.3 A
  • Nominal voltage DC: 24 V
  • Parameterisation interface: IO-Link and user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Power supply: Plugs, M12x1, T-coded according to EN 61076-2-111, 4 pins/wires, pattern 995989
  • Approvals: RCM trademark, KC-EMV, CE mark to EU EMC Directive and EU RoHS Directive, UKCA marking to UK instructions for EMC and UK RoHS instructions
  • Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0-90%
  • Degree of protection: IP20, Protection class: III
  • Ambient temperature: 0°C to 50°C, reduce power by 2% per K above 30°C
  • Max. forces and moments: Fy: 50 N, Fz: 50 N, Mx: 2.5 Nm, My: 8 Nm, Mz: 8 Nm, Fx: 50 N
  • Reference values: Effective load, horizontal: 2.8 kg, Feed constant: 58 Y13, Service life: 5000 km
  • Additional details: Maintenance-free, product weight: 3740 g
  • Logic inputs and outputs: 2 digital logic outputs, 2 digital logic inputs, PNP switching logic
  • IO-Link features: SIO-Mode support, configurable inputs and outputs, Device V 1.1 protocol version, COM3 communication mode, Port class A, 1 port, various process data content
  • Cable lengths: 15 m for outputs, 15 m for inputs, 20 m with IO-Link® operation
  • Material details: Anodised wrought aluminium alloy profile mounting, RoHS-compliant materials, high-alloy stainless steel pulleys, beryllium bronze toothed belt clamping piece, polychloroprene toothed belt with glass filament and nylon coating

Accessories

ZBH-7-B Centring sleeve

Product Code - 8146544
Price £1.32
Back Order


Product

Manufacturer Material ID -
ELGE-TB-35-500-0H-ST-M-H1-PLK-AA-AT-FR
Net Weight -
3.55kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability Back Order

£1,048.62
