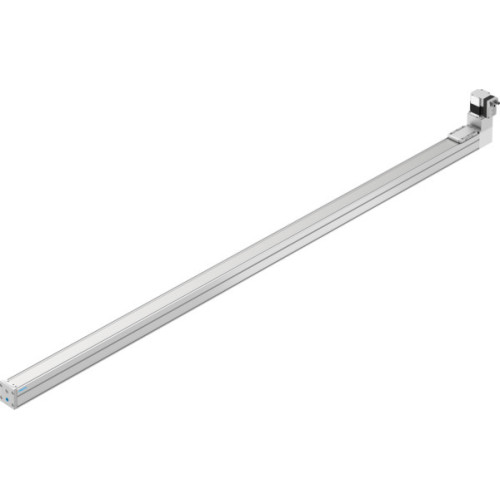

ELGS-TB-KF-60-1800-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-60-1800-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-TB-KF-60-1800-ST-M-H1-PLK-AA Toothed belt axis unit

Availability Back Order

£1,400.44
  • Toothed belt axis unit ELGS-TB-KF-60-1800-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 24.83 mm
  • Working stroke: 1800 mm
  • Size: 60
  • Toothed-belt stretch: 0.124%
  • Toothed-belt pitch: 3 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing
  • Max. acceleration: 6 m/s²
  • Max. speed: 1.3 m/s
  • Repetition accuracy: ±0.1 mm
  • Features of digital logic outputs: Configurable, not galvanically isolated
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA
  • Max. current consumption: 5.3 A
  • Nominal voltage DC: 24 V
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Max. force Fy: 3641 N, Fz: 3641 N, total axis: 600 N (Fy), 1800 N (Fz)
  • Max. moment Mx: 29.1 Nm, My: 31.8 Nm, Mz: 31.8 Nm, total axis: 29.1 Nm (Mx), 31.8 Nm (My, Mz)
  • Max. feed force Fx: 65 N
  • Reference value effective load, horizontal: 4 kg
  • Torsional mass moment of inertia It: 29800 Y12
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 482 g, for 0 mm stroke: 482 g
  • Weight of slide: 139 g, product weight: 10695 g
  • Dynamic deflection: 0.05% of the axis length, max. 0.5 mm
  • Static deflection: 0.1% of the axis length
  • Number of digital logic outputs 24 V DC: 2, number of digital logic inputs: 2
  • IO-Link support, SIO-Mode: Yes
  • IO-Link, Protocol version: Device V 1.1, communication mode: COM3 (230.4 kBaud)
  • IO-Link, Number of ports: 1, Process data length OUT: 2 bytes, IN: 2 bytes
  • IO-Link, Min. cycle time: 1 ms, Data storage required: 500 KB
  • Max. cable length: 15 m (outputs, inputs), 20 m with IO-Link operation
  • Switching logic for outputs, inputs: PNP (positive switching)
  • Material: End cap - Painted die-cast aluminium, profile - Anodised wrought aluminium alloy, cover tape - Stainless steel strip, drive cover - Painted die-cast aluminium, guide slide and rail - Tempered steel, pulleys - High-alloy stainless steel, slide - Die-cast aluminium, toothed belt - Polychloroprene with glass fibre

Accessories

ZBH-5-B Centring sleeve

Product Code - 8146543
Price £1.32
Back Order


Product

Manufacturer Material ID -
ELGS-TB-KF-60-1800-ST-M-H1-PLK-AA
Net Weight -

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
