787-1644

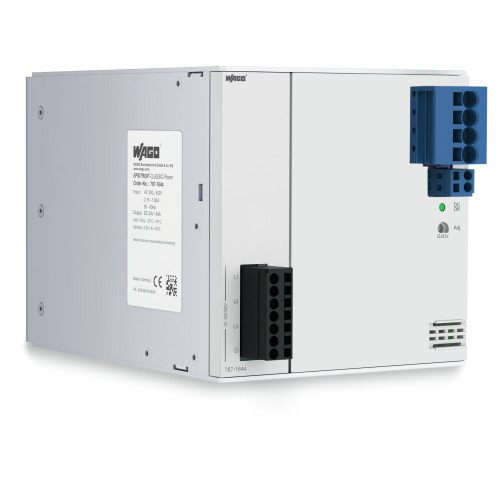

Primary switch mode power supply 3-phase 24 VDC 40 A DC OK contact TopBoost

Manufacturer's No: 787-1644     Manufacturer: WAGO
Primary switch mode power supply 3-phase 24 VDC 40 A DC OK contact TopBoost

Availability Available to order

£395.256
List Price £494.07
  • Switched-mode power supply
  • Classic design
  • 3-phase input
  • 24 VDC output voltage
  • 40 A output current
  • TopBoost feature
  • DC OK contact

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order


Product

Manufacturer Material ID -
787-1644
Net Weight -
2.80kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
23 Volt
Degree of protection (IP rating) -
IP20
Depth -
198 Millimetre
Height -
127 Millimetre
Max. output current 1 -
40 Ampere
Modular version -
Nominal value output current 1 -
40 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
960 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
320 Volt
Rated supply voltage at AC 60 Hz -
320 Volt
Rated supply voltage at DC -
450 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
126 Millimetre
Width in number of modular spacings -
7
