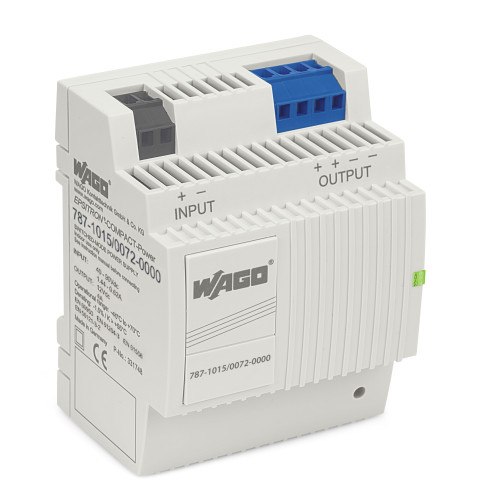

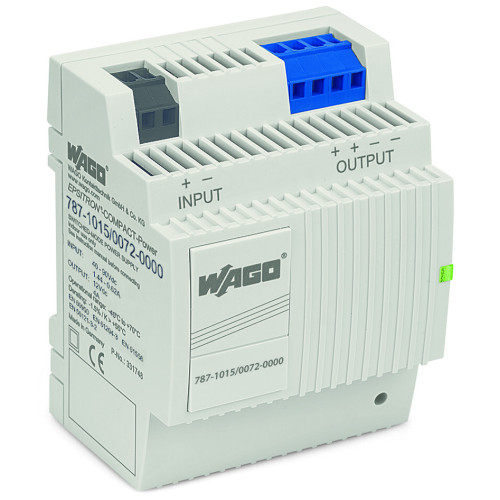

787-1015/072-000

DC/DC converter with high-voltage symbol, black for 5 terminal blocks, yellow

Manufacturer's No: 787-1015/072-000     Manufacturer: WAGO
DC/DC converter with high-voltage symbol, black for 5 terminal blocks, yellow

Availability Back Order

POA
  • DC/DC Converter
  • Compact design
  • Input voltage: 72 VDC
  • Output voltage: 12 VDC
  • Output current: 4 A
  • Galvanically isolated


Product

Manufacturer Material ID -
787-1015/072-000
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
32121701

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
12 Volt
Degree of protection (IP rating) -
IP20
Depth -
89 Millimetre
Height -
89 Millimetre
Max. output current 1 -
4 Ampere
Modular version -
Nominal value output current 1 -
4 Ampere
Nominal value output voltage 1 -
12 Volt
Output voltage stabilized -
Power output -
48 Watt
Rail mounting possible -
Rated supply voltage at DC -
40 Volt
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
DC
Width -
72 Millimetre
Width in number of modular spacings -
4

Availability Back Order

POA
