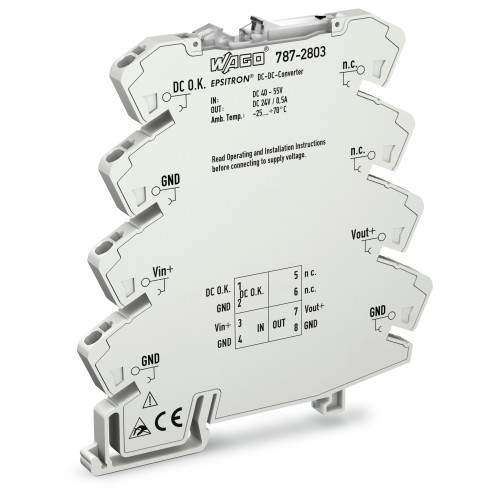

787-2803

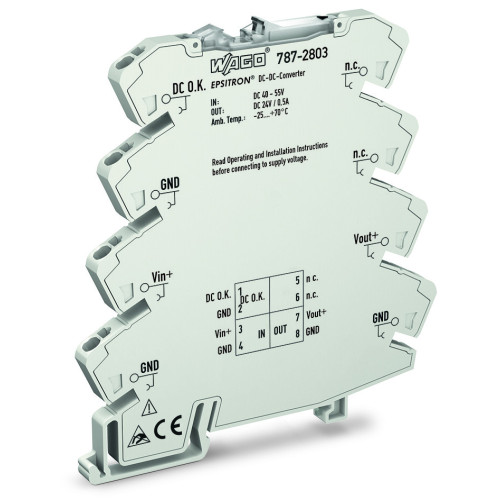

DC/DC Converter, 48 VDC input voltage, 24 VDC output voltage, 0.5 A output current, DC OK contact

Manufacturer's No: 787-2803     Manufacturer: WAGO
DC/DC Converter, 48 VDC input voltage, 24 VDC output voltage, 0.5 A output current, DC OK contact

Availability Back Order

POA
  • Input voltage: 48 VDC
  • Output voltage: 24 VDC
  • Output current: 0.5 A
  • Features DC OK contact

Accessories



Product

Manufacturer Material ID -
787-2803
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121701

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
94 Millimetre
Height -
94 Millimetre
Max. output current 1 -
0.5 Ampere
Nominal value output current 1 -
0.5 Ampere
Nominal value output voltage 1 -
24 Volt
Power output -
12 Watt
Rail mounting possible -
Rated supply voltage at DC -
40 Volt
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
DC
Width -
6 Millimetre
Width in number of modular spacings -
0.33

Availability Back Order

POA
