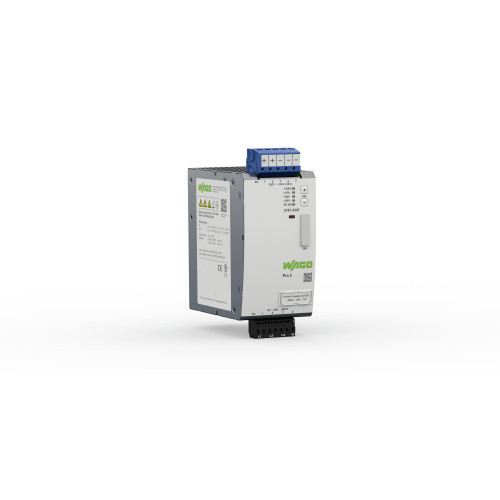

2787-2347

Power supply; Pro 2; 3-phase; 24 VDC output voltage; 20 A output current; TopBoost + PowerBoost; communication capability

Manufacturer's No: 2787-2347     Manufacturer: WAGO
Power supply; Pro 2; 3-phase; 24 VDC output voltage; 20 A output current; TopBoost + PowerBoost; communication capability

Availability Back Order

£236.264
List Price £295.33
  • Power supply for industrial use
  • Pro 2 model
  • 3-phase input
  • 24 VDC output voltage
  • 20 A output current
  • TopBoost + PowerBoost features
  • Communication capability

Accessories



Product

Manufacturer Material ID -
2787-2347
Net Weight -
1.40kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
130 Millimetre
Height -
130 Millimetre
Max. output current 1 -
20 Ampere
Modular version -
Nominal value output current 1 -
20 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
480 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
340 Volt
Rated supply voltage at AC 60 Hz -
340 Volt
Rated supply voltage at DC -
480 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC
Width -
70 Millimetre
Width in number of modular spacings -
4

Availability Back Order

£236.264
List Price £295.33
