6D000019

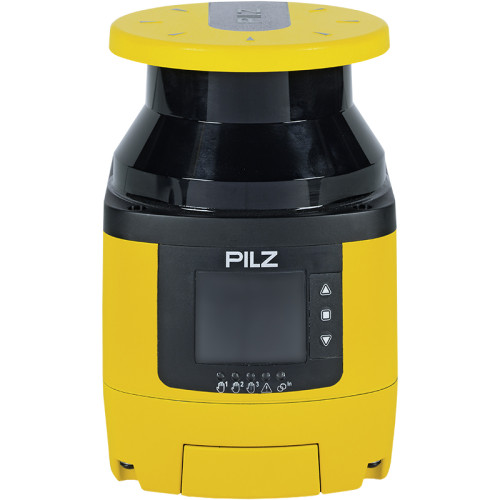

Master – model series connection for up to 3 subscribers 30 mm 40 mm 50 mm 70 mm

Manufacturer's No: PSEN sc M 5.5 08-17     Manufacturer: Pilz
Master – model series connection for up to 3 subscribers 30 mm 40 mm 50 mm 70 mm

Availability Back Order

£4,321.46
  • Master model with series connection for up to 3 subscribers
  • Detection capability: 30mm, 40mm, 50mm, 70mm, 150mm
  • Features: muting, partial muting, override, EDM, restart applications (EN ISO61496-3 compliant)
  • Suitable for vertical applications with reference markers
  • Measured data output (UDP) for monitoring
  • Fast replacement with exchangeable memory block
  • ROS and C++ interface available
  • Operating temperature: -10°C to +50°C
  • Safety zone: 5.5m
  • Expanded connection options (I/O)

Read more

  • 3 safety zones and 3 warning zones can run in parallel
  • 70 configurable zone sets

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN sc M 5.5 08-17
Net Weight -
1.53kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
IT
UNSPSC -
43201542

Technical Specification

Ambient temperature -
-10 Degrees celsius
Height of sensor -
152 Millimetre
Length of sensor -
112.5 Millimetre
Number of protected semiconductor outputs -
5
Reaction time -
62 Millisecond
Type of safety acc. IEC 61496-1 -
3
Voltage type -
DC
Width sensor -
102 Millimetre
Thumbnail of product picture -
Medien_800/Pictures_800/6D000019_800.jpg
Pilz

Availability Back Order

£4,321.46
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
