505220

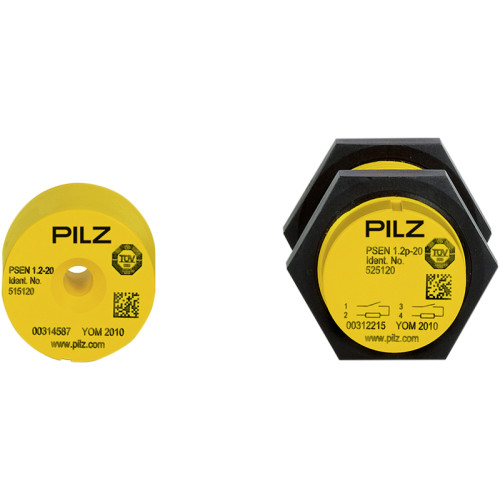

Magnetic safety switch 2 N/O, 4-pin M8 male connector, round M30 design IP67, operating distance 8 mm, PU = 1 piece with actuator.

Manufacturer's No: PSEN 1.2p-20/PSEN 1.2-20/8mm/ 1unit     Manufacturer: Pilz
Magnetic safety switch 2 N/O, 4-pin M8 male connector, round M30 design IP67, operating distance 8 mm, PU = 1 piece with actuator.

Availability Back Order

£64.53
  • Magnetic safety switch with 2 normally open contacts
  • 4-pin M8 male connector
  • Round M30 design
  • IP67 rated for dust and water resistance
  • Switching distance of 8 mm
  • Package includes 1 piece with actuator

Accessories



Product

Manufacturer Material ID -
PSEN 1.2p-20/PSEN 1.2-20/8mm/ 1unit
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Housing material -
Plastic
Suitable for safety functions -
Number of protected contact energized outputs -
2
Type of electric connection -
Connector M8
Type of switching output -
Dry reed contact
Construction type housing -
Cylinder, screw-thread
Protected switch distance OFF -
8 Millimetre
Protected switch distance ON -
26 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Diameter sensor -
30 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level e
Thumbnail of product picture -
Medien_800/Pictures_800/505220_800.jpg
Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
30 Millimetre
Length of sensor -
36 Millimetre
Switching distance -
0.5 Millimetre
Voltage type -
DC
Width sensor -
30 Millimetre
Pilz
