503224

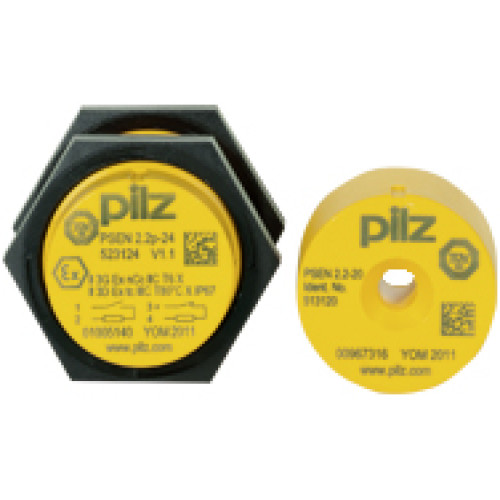

Magnetic safety switch 1NO/1NC, 4-pin M8 male connector with LED, round M30 design IP67, operating distance 8 mm PU = 1 piece with

Manufacturer's No: PSEN 2.2p-24/PSEN2.2-20/LED/8mm/ATEX     Manufacturer: Pilz
Magnetic safety switch 1NO/1NC, 4-pin M8 male connector with LED, round M30 design IP67, operating distance 8 mm PU = 1 piece with actuator, ATEX approval.

Availability Back Order

£92.65
  • Magnetic safety switch PSENmag with round actuator
  • ATEX certificate for hazardous environments
  • 4-pin M8 male connector for easy installation
  • Series connection for multiple switches
  • Includes 1 pair of CABLE/M8/CLIP for securing 1 M8 plug-in connector

Accessories



Product

Manufacturer Material ID -
PSEN 2.2p-24/PSEN2.2-20/LED/8mm/ATEX
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Housing material -
Plastic
Suitable for safety functions -
With status indication -
Number of protected contact energized outputs -
2
Type of electric connection -
Connector M8
Type of switching output -
Dry reed contact
Construction type housing -
Cylinder, screw-thread
Protected switch distance OFF -
8 Millimetre
Protected switch distance ON -
26 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Diameter sensor -
30 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level e
Ambient temperature -
-25 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
30 Millimetre
Length of sensor -
44.9 Millimetre
Switching distance -
0.5 Millimetre
Voltage type -
DC
Width sensor -
30 Millimetre
Pilz

Availability Back Order

£92.65
