542011

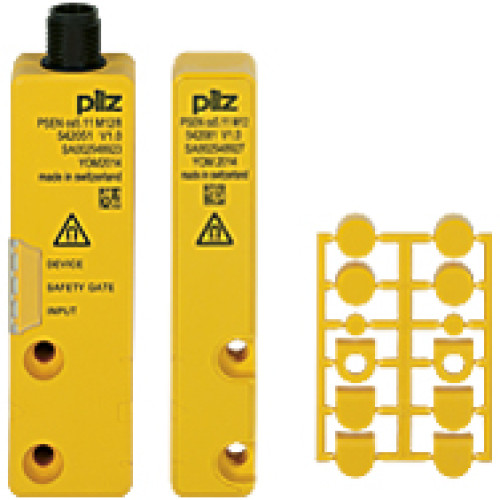

RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, IP67, 4 directions of actuation, Operating distance (directi

Manufacturer's No: PSEN cs5.11 M12/8/PSEN cs5.11 M12 1unit     Manufacturer: Pilz
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, IP67, 4 directions of actuation, Operating distance (direction of actuation square): 11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece

Availability In Stock

£117.17
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector
  • Supports SDD
  • IP67 rated for dust and water resistance
  • 4 actuation directions
  • Switching distance: 11 mm with actuator at square marking
  • Sao (operating distance): 8 mm
  • Sar (reliable operating distance): 20 mm
  • Includes 1 piece coded switch with actuator
  • Magnetic latching holding force: 30N

Accessories



Product

Manufacturer Material ID -
PSEN cs5.11 M12/8/PSEN cs5.11 M12 1unit
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
26.4 Millimetre
Length of sensor -
19 Millimetre
Width sensor -
101.6 Millimetre
Pilz

Availability In Stock

£117.17
