3SE54230CD201EB1

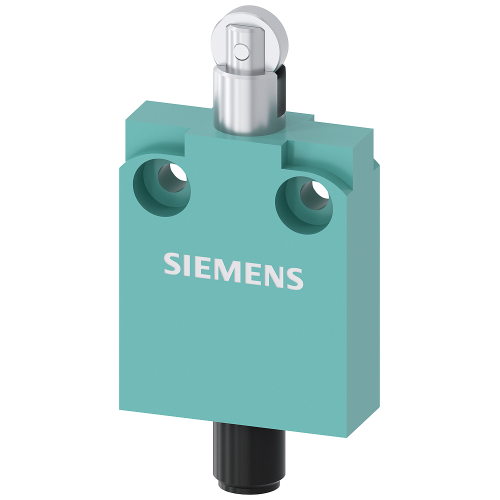

Plunger with roller, M12 plug connector on bottom of enclosure - 1NO+1NC snap-action contact, 10A (AC15)

Manufacturer's No: 3SE5423-0CD20-1EB1     Manufacturer: Siemens
Plunger with roller, M12 plug connector on bottom of enclosure - 1NO+1NC snap-action contact, 10A (AC15)

Availability Back Order

£56.57
  • Position switch with compact design, 40mm wide
  • Connector plug: M12
  • Snap-action contacts: 1 NO + 1 NC
  • Roller plunger

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3SE5423-0CD20-1EB1
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Metal
Type of electric connection -
Plug-in connection M12
Degree of protection (IP) -
IP67
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
16 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
70 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 230 V -
3 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 230 V -
0.27 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of control element -
Roller cam
Type of interface for safety communication -
None
Width sensor -
40 Millimetre

Availability Back Order

£56.57
