3SE54230CN201EA2

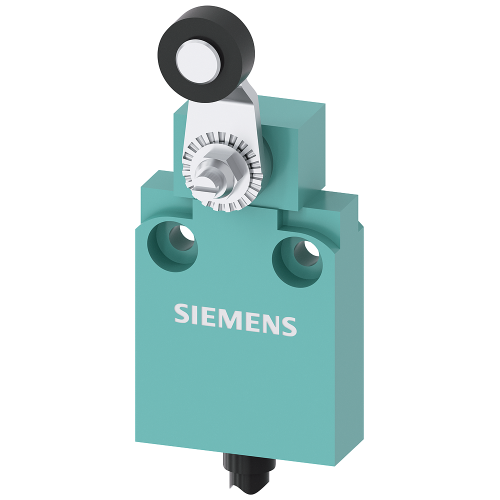

Twist lever with roller, 2m moulded cable with bottom cable exit - 1NO+1NC snap-action contact, 10A (AC15)

Manufacturer's No: 3SE5423-0CN20-1EA2     Manufacturer: Siemens
Twist lever with roller, 2m moulded cable with bottom cable exit - 1NO+1NC snap-action contact, 10A (AC15)

Availability Back Order

£57.67
  • Position switch with snap-action contacts
  • Compact design: 40 mm wide
  • Connection cable: 2 m
  • Twist lever with 1 normally open (NO) and 1 normally closed (NC) contact

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3SE5423-0CN20-1EA2
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Metal
Degree of protection (IP) -
IP67
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
16 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
95 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 230 V -
3 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 230 V -
0.27 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of control element -
Rotary lever
Type of electric connection -
Other
Type of interface for safety communication -
None
Width sensor -
40 Millimetre

Availability Back Order

£57.67
