3SE51220LD02

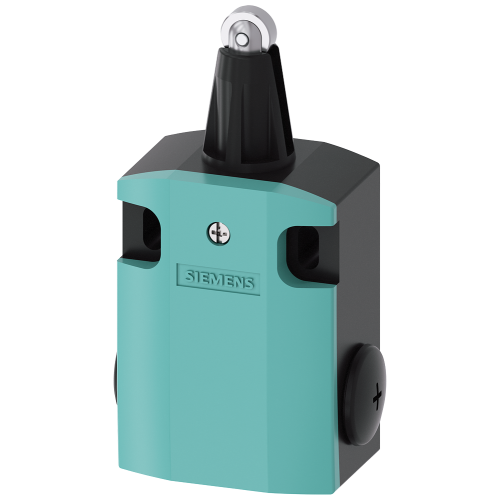

Metal plunger, with 13mm metal roller - 1NO+2NC snap-action contact, 6A (AC15)

Manufacturer's No: 3SE5122-0LD02     Manufacturer: Siemens
Metal plunger, with 13mm metal roller - 1NO+2NC snap-action contact, 6A (AC15)

View 3D

Availability Back Order

£52.94
  • Metal enclosure with a width of 56 mm
  • 3x device connections (M20x1.5)
  • 1 Normally Open (NO) / 2 Normally Closed (NC) quick action contacts
  • Roller plunger with a 13 mm Stainless steel roller

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3SE5122-0LD02
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Metal
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Type of electric connection -
Cable entry metrical
Type of control element -
Roller cam
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
37.8 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
116.5 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
56 Millimetre

Availability Back Order

£52.94
