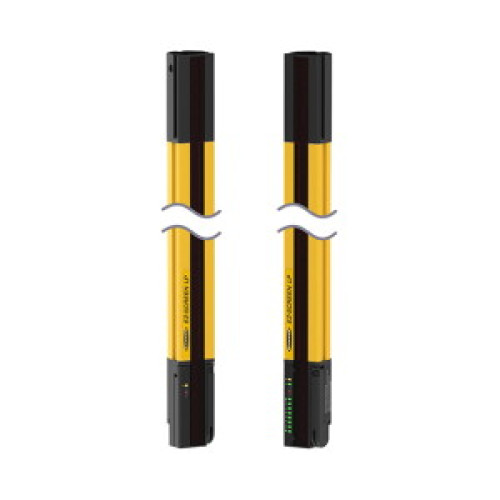

Safety Light Curtain, Emitter/Receiver Pair

Manufacturer's No: SLPP14-1810P88     Manufacturer: Turck Banner
Safety Light Curtain, Emitter/Receiver Pair

Availability Available to order

POA
  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. range: 7000 mm
  • Resolution: 14 mm
  • Scan field: 1810 mm (L1)
  • Operating voltage: 24 VDC ± 15%
  • Cable length: 0.3 m, with M12 × 1 connector
  • Protection class: IP65
  • Flat housing without blind zone
  • Adjustments via DIP switch
  • Reducible resolution and blanking function

Read more

  • Personnel safety category 4, PL e acc. to EN ISO 13849-1:2008
  • Type 4 acc. to IEC 61496-1, -2
  • SIL 3 to IEC 61508


Product

Manufacturer Material ID -
SLPP14-1810P88
Net Weight -
5.92kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32151804

Technical Specification

-
Turck Banner
Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1807 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
43.5 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
1810 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
850 Nanometre
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner
