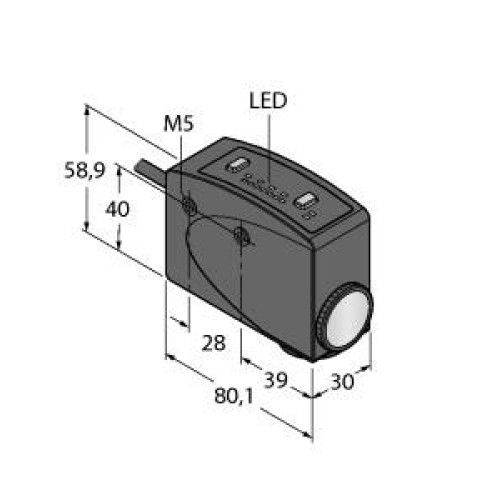

R58Register Mark Sensor, Input, 10-30 V dc, Output: Bipolar, 1 NPN, 1 PNP, Parallel Sensing Beam, 2 m Cable

Manufacturer's No: R58ECRGB1     Manufacturer: Turck Banner
R58Register Mark Sensor, Input, 10-30 V dc, Output: Bipolar, 1 NPN, 1 PNP, Parallel Sensing Beam, 2 m Cable

Availability Available to order

£384.17
  • Photoelectric Sensor
  • Color Mark Sensor
  • Switching Output
  • Operating Voltage: 10-30 VDC
  • Max. Range: 10 mm
  • Focal Distance: 10 mm
  • Cable Length: 2 m, 5-wire, PVC
  • Protection Class: IP67
  • Programmed via 2 Teach Buttons
  • 8-Segment LED Display

Read more

  • Adjustable On/Off Delay: 30 ms
  • Automatic Selection of Red, Green, and Blue Light
  • Parallel Scan Field Relative to Housing Axis
  • Optics Rotatable by 90°
  • PNP/NPN Switching Output
  • Switching Behavior Adjustable (NO/NC)
  • Teach Input


Product

Manufacturer Material ID -
R58ECRGB1
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
58.9 Millimetre
Housing material -
Other
Length of sensor -
80.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
No load current -
75 Milliampere
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
30 Millimetre
Turck Banner

Availability Available to order

£384.17
