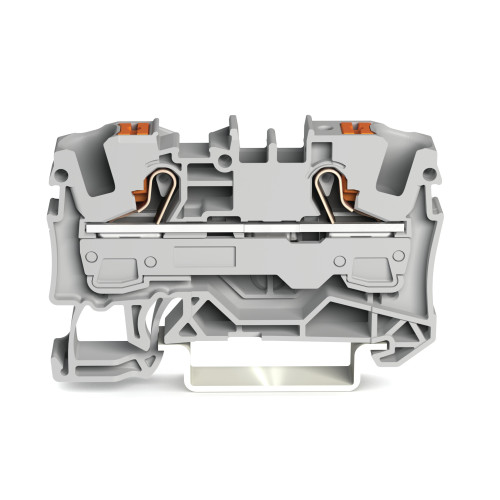

2206-1201

2-conductor through terminal block, with push-button, 6 mm², gray

Manufacturer's No: 2206-1201     Manufacturer: WAGO
2-conductor through terminal block, with push-button, 6 mm², gray

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.50

£1.1175
List Price £1.49
  • Terminal block with push-button
  • 2-conductor design
  • Accommodates wires up to 6 mm²
  • Features a test port
  • Side and center marking for easy identification
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes Push-in CAGE CLAMP® technology
  • Color: Gray

Accessories

Seperator plate, 2 mm thick, oversized, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-1293
Price £0.345
List Price £0.46
In Stock

Seperator plate, 2 mm thick, oversized, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-1294
Price £0.3675
List Price £0.49
Available to order

Jumper, from 1 to 3, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-433
Price £0.8025
List Price £1.07
Available to order

Jumper, from 1 to 4, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-434
Price £1.52
List Price £1.49
Available to order

Jumper, from 1 to 5, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-435
Price £2.02
Available to order

Step-down jumper, from 2016/2010 to 2010/2006/2004/2002 series, from 2216/2210 to 2210/2206/2204/2202 series, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-499
Price £1.005
List Price £1.34
Available to order

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Available to order

Ferrule Sleeve for 1 mm / AWG 18 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Available to order

Ferrule Sleeve for 4 mm / AWG 12 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Available to order

Ferrule Sleeve for 6 mm / AWG 10 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-208
Price £0.16
In Stock

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-192
Price £0.1875
List Price £0.25
Available to order

Test plug adapter, for 4 mm Ø test plugs, for testing TOPJOB®S rail-mounted terminal blocks, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-174
Price £3.6375
List Price £4.85
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-193
Price £0.195
List Price £0.26
Available to order

Lockout cap, for wire insertion and actuating opening, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-191
Price £0.2775
List Price £0.37
Available to order

Star point jumper, 3-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-405/011-000
Price £1.88
Available to order


Product

Manufacturer Material ID -
2206-1201
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Length -
57.3 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
7.5 Millimetre
Height at lowest possible mounting height -
32.9 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Depth -
32.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
57.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
41 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7.5 Millimetre
