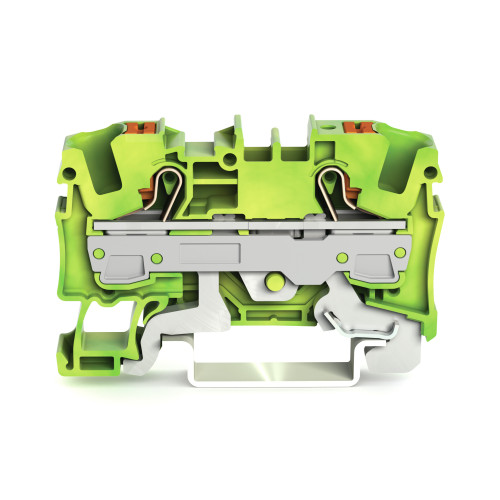

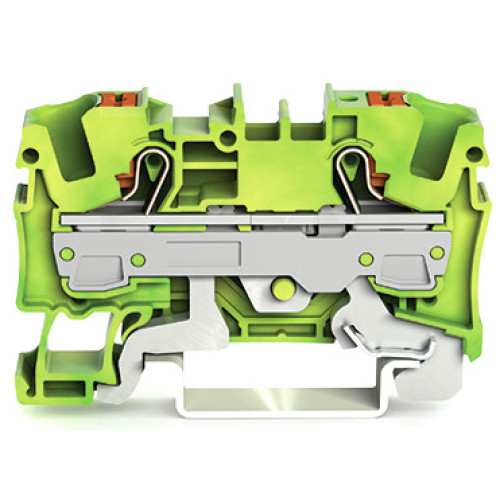

2206-1207

2-conductor ground terminal block; with push-button; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and

Manufacturer's No: 2206-1207     Manufacturer: WAGO
2-conductor ground terminal block; with push-button; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; green-yellow

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£2.655
List Price £3.54
  • 2-conductor ground terminal block
  • Push-button feature
  • Accommodates wires up to 6 mm²
  • Includes a test port
  • Side and center marking for easy identification
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes Push-in CAGE CLAMP® technology
  • Color: green-yellow

Accessories

Separator Plate, 2 mm Thick Oversized Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2006-1293
Price £0.3375
List Price £0.45
In Stock

Separator Plate, 2 mm Thick Oversized Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2006-1294
Price £0.36
List Price £0.48
Back Order

1 - 3 push-in type insulated jumper bar, 41A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2006-433
Price £0.7875
List Price £1.05
Back Order

1 - 4 push-in type insulated jumper bar, 41A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2006-434
Price £1.1175
List Price £1.49
Back Order

1 - 5 push-in type insulated jumper bar, 41A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2006-435
Price £1.98
Back Order
Price £0.09
Back Order

Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Back Order
Price £0.09
Back Order
Price £0.09
Back Order

Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Back Order
Price £0.16
In Stock

Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide; orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-191
Price £1.09
Back Order

TOPJOBS Group Marker Carrier, Snap-On Type For Jumper Slot 10 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-192
Price £0.1875
List Price £0.25
Back Order

TOPJOBS Group Marker Carrier, Snap-On Type For Jumper Slot 15 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-193
Price £0.195
List Price £0.26
Back Order

Lockout cap; for wire insertion and actuating opening; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2006-191
Price £0.27
List Price £0.36
Back Order

Star point jumper insulated 3-way (1-3-5) light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2006-405/011-000
Price £1.85
Back Order

Cover carrier; Type 3

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 709-169
Price £1.77
Back Order


Product

Manufacturer Material ID -
2206-1207
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Length -
57.3 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
7.5 Millimetre
Height at lowest possible mounting height -
32.9 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Depth -
32.9 Millimetre
Height -
57.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7.5 Millimetre

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£2.655
List Price £3.54
