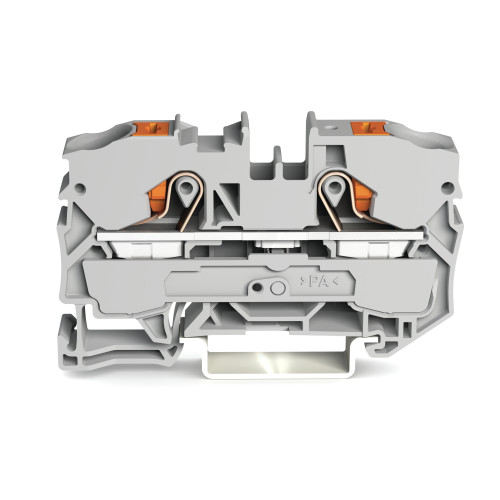

2210-1201

2-conductor through terminal block; with push-button; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 a

Manufacturer's No: 2210-1201     Manufacturer: WAGO
2-conductor through terminal block; with push-button; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; gray

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£1.4325
List Price £1.91
  • Terminal block with push-button
  • 2-conductor design
  • Accommodates wire size up to 10 mm²
  • Features a test port
  • Side and center marking for easy identification
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes Push-in CAGE CLAMP® technology
  • Color: Gray

Accessories

End And Intermediate Plate, 1 mm Thick Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-1292
Price £0.33
List Price £0.44
Back Order

Push-In Type Jumper Bar, Insulated 3-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-403
Price £1.02
List Price £1.36
Back Order

Push-In Type Jumper Bar, Insulated 4-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-404
Price £1.5375
List Price £2.05
Back Order

Push-In Type Jumper Bar, Insulated 5-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-405
Price £2.055
List Price £2.74
Back Order

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 57 A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-433
Price £1.60
Back Order

1 - 4 push-in type insulated jumper bar, 57A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-434
Price POA
Back Order

1 - 5 push-in type insulated jumper bar, 57A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-435
Price POA
Back Order

Finger guard; touchproof cover protects unused conductor entries; yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-100
Price £0.195
List Price £0.26
Back Order

Step-down jumper; from 2016/2010 to 2010/2006/2004/2002 series; from 2216/2210 to 2210/2206/2204/2202 series; insulated; light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2016-499
Price £0.99
List Price £1.32
Back Order
Price £0.15
Back Order

Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-287
Price £0.15
Back Order
Price £0.29
Back Order

Ferrule; Sleeve for 10 mm² / AWG 8; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-289
Price £0.36
Back Order

Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide; orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-191
Price £1.09
Back Order

TOPJOBS Group Marker Carrier, Snap-On Type For Jumper Slot 10 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-192
Price £0.1875
List Price £0.25
Back Order

TOPJOBS Group Marker Carrier, Snap-On Type For Jumper Slot 15 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-193
Price £0.195
List Price £0.26
Back Order

Star point jumper insulated 3-way (1-3-5) light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-405/011-000
Price POA
Back Order

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-549
Price POA
Back Order

Cover carrier; Type 3

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 709-169
Price £1.77
Back Order


Product

Manufacturer Material ID -
2210-1201
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Length -
67.6 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
10 Millimetre
Height at lowest possible mounting height -
36.9 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Depth -
36.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
67.6 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
57 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
10 Millimetre
