2010-511

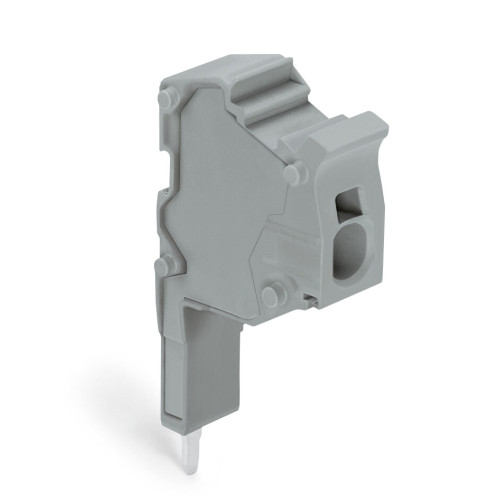

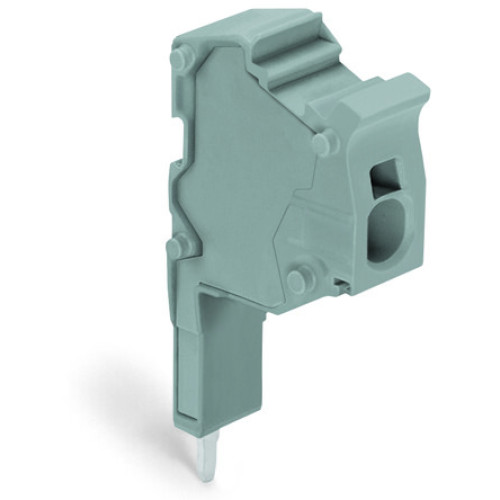

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 4,00 mm²; gray

Manufacturer's No: 2010-511     Manufacturer: WAGO
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 4,00 mm²; gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.4325
List Price £1.91
  • Modular TOPJOB®S connector
  • 1-pole
  • For jumper contact slot
  • 4.00 mm²
  • Color: Gray

Accessories

Price £0.09
Back Order
Price £0.09
Back Order

Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Back Order
Price £0.09
Back Order
Price £0.09
Back Order
Price £0.09
Back Order
Price £0.09
Back Order
Price £0.15
Back Order

Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Back Order

Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-287
Price £0.15
Back Order

End plate; for modular TOPJOB®S connector; 1.5 mm thick; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2004-541
Price £0.34
Back Order

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2010-549
Price POA
Back Order


Product

Manufacturer Material ID -
2010-511
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Width/grid dimension -
10 Millimetre
Connectable conductor cross section -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Model -
Pin insert
Number of poles -
1
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Tackable -
Total number of poles (without ground contact) -
1
Type of electric connection -
Spring clamp connection

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.4325
List Price £1.91
