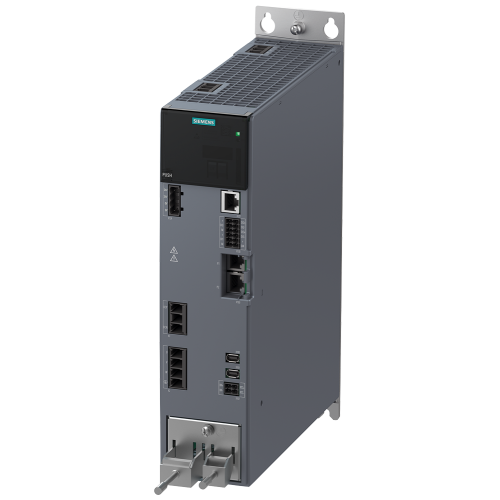

6SL32105HE120UF0

SINAMICS S210, IP20 / UL open type, FSB, A, 3 AC 200-480 V, 2,00 kW

Manufacturer's No: 6SL3210-5HE12-0UF0     Manufacturer: Siemens
SINAMICS S210, IP20 / UL open type, FSB, A, 3 AC 200-480 V, 2,00 kW

Availability Back Order

£1,465.13
  • Input voltage: 200-480 V AC, 3-phase, 45-66 Hz, 7.5 A
  • Output voltage: 0-550 V AC, 3-phase, 0-550 Hz, 7.0 A
  • Motor power: 2.0 kW
  • Degree of protection: IP20
  • Frame size: B, 70 x 322 x 223 mm (WxHxD)

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3210-5HE12-0UF0
Net Weight -
3.80kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
UNSPSC -
32121705

Technical Specification

Number of HW-interfaces other -
-
Mains frequency -
UN
Max. output frequency -
- Hertz
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
STATFLAG -
B
Degree of protection (IP rating) -
IP20
Application in industrial area permitted -
Depth -
222.8 Millimetre
Height -
280 Millimetre
Integrated breaking resistance -
Mains voltage -
200 Volt
Max. output at linear load at rated output voltage -
2 Kilowatt
Max. output at quadratic load at rated output voltage -
1.2 Kilowatt
Max. output voltage -
480 Volt
Nominal output current I2N -
7 Ampere
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
5
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
3
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of converter -
U converter
Width -
70 Millimetre
With PC connection -
