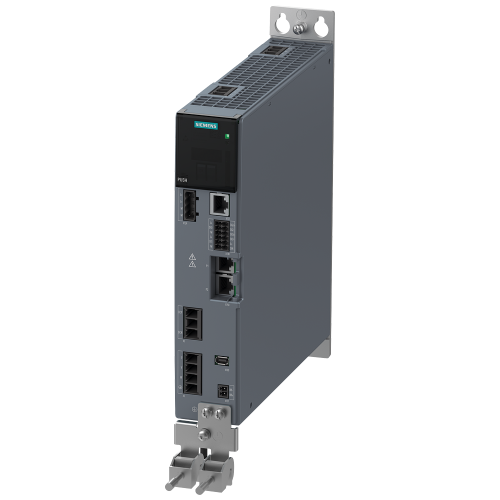

6SL32105HE110UF0

SINAMICS S210, 3 AC 200-480 V, 1,00 kW, IP20 / UL open type, FSA, A

Manufacturer's No: 6SL3210-5HE11-0UF0     Manufacturer: Siemens
SINAMICS S210, 3 AC 200-480 V, 1,00 kW, IP20 / UL open type, FSA, A

Availability Back Order

POA

This product has been superseded by

6SL53101BE110DF0

Please check compatibility before purchasing.

  • Input voltage: 200-480 V, 3AC, 3.8 A, 45-66 Hz
  • Output voltage: 0-input V, 3.0 A, 0-550 Hz
  • Motor power: 1.0 kW
  • Degree of protection: IP20
  • Frame size: A, 50 x 270 x 220 mm (WxHxD)

Accessories

Follow-up article

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3210-5HE11-0UF0
Net Weight -
2.60kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

Number of HW-interfaces other -
-
Max. output frequency -
- Hertz
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
STATFLAG -
B
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Application in industrial area permitted -
Depth -
222.8 Millimetre
Height -
231 Millimetre
Integrated breaking resistance -
Mains voltage -
200 Volt
Max. output at linear load at rated output voltage -
1 Kilowatt
Max. output at quadratic load at rated output voltage -
0.6 Kilowatt
Max. output voltage -
480 Volt
Nominal output current I2N -
3 Ampere
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
5
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
3
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of converter -
U converter
Width -
50 Millimetre
With PC connection -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6SL53101BE110DF0

Please check compatibility before purchasing.
