6SL32105HE135UF0

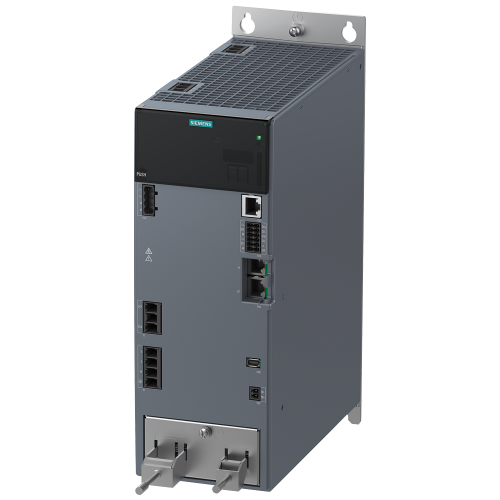

SINAMICS S210, IP20 / UL open type, FSC, A, 3 AC 200-480 V, 3,50 kW

Manufacturer's No: 6SL3210-5HE13-5UF0     Manufacturer: Siemens
SINAMICS S210, IP20 / UL open type, FSC, A, 3 AC 200-480 V, 3,50 kW

Availability Back Order

£1,934.61
  • Input voltage: 200-480 V AC, 3-phase
  • Input current: 12.5 A
  • Output voltage: 0 V AC
  • Output current: 9.0 A
  • Output frequency: 0-550 Hz
  • Motor power: 3.5 kW
  • Degree of protection: IP20
  • Frame size: C
  • Dimensions: 105 x 322 x 223 mm (WxHxD)

Accessories

Instructional video
Product video
Product video
Question and Answer (Q&A video)
Product video
Product video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
6SL3210-5HE13-5UF0
Net Weight -
5.70kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
UNSPSC -
32121705

Technical Specification

Number of HW-interfaces other -
-
Mains frequency -
UN
Max. output frequency -
- Hertz
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
STATFLAG -
B
Degree of protection (IP rating) -
IP20
Application in industrial area permitted -
Depth -
222.8 Millimetre
Height -
280 Millimetre
Integrated breaking resistance -
Mains voltage -
200 Volt
Max. output at linear load at rated output voltage -
3.5 Kilowatt
Max. output at quadratic load at rated output voltage -
2.1 Kilowatt
Max. output voltage -
480 Volt
Nominal output current I2N -
9 Ampere
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
5
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
3
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of converter -
U converter
Width -
105 Millimetre
With PC connection -

Availability Back Order

£1,934.61
