2020-107/000-037

1-conductor female plug with ground end module for insertion into carrier tbs

Manufacturer's No: 2020-107/000-037     Manufacturer: WAGO

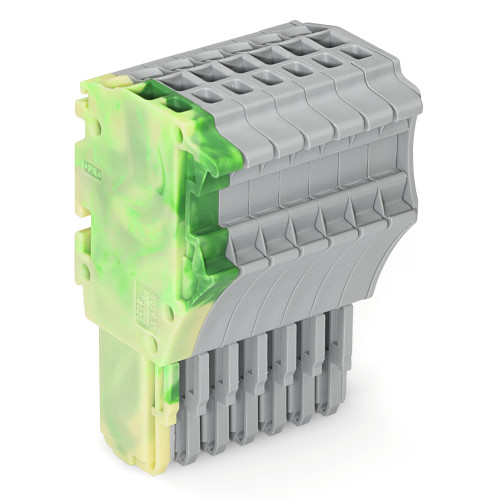

1-conductor female plug with ground end module for insertion into carrier tbs

Availability Back Order

POA

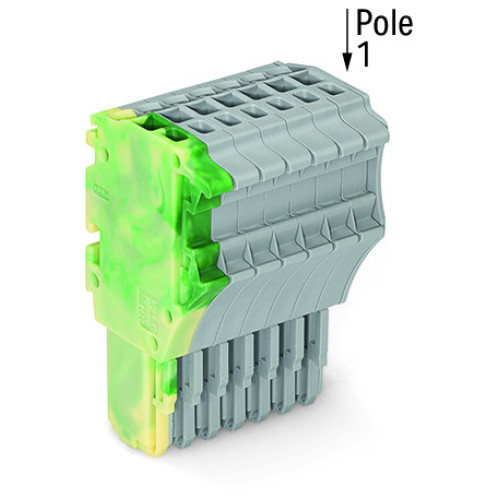

  • 1-conductor female connector
  • Push-in CAGE CLAMP® for easy and secure connection
  • 1.5 mm² wire capacity
  • Pin spacing of 3.5 mm
  • 7-pole connector
  • Color coded: green-yellow/gray

Accessories

Ferrule, Sleeve For 0.5 mm / Awg 22 Insulated White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Back Order

Locking Lever, Can Be Snapped On 1-Cond. Fem. Plugs 2 Poles And More Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2022-152
Price £0.1125
List Price £0.15
Back Order

Strain Relief Plate, Can Be Snapped On Tap-Off Modules 25 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 734-329
Price £0.40
Back Order

Locking Lever, Can Be Snapped On 1-Cond. Fem. Plugs 2 Poles And More Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2022-151
Price £0.1125
List Price £0.15
Back Order


Product

Manufacturer Material ID -
2020-107/000-037
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
20.7 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
3.5 Millimetre
Height at lowest possible mounting height -
39 Millimetre
Connection position -
Above
Colour -
Multi colour
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
40.5 Millimetre
Halogen free -
Height -
22.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
7
Operating temperature -
105 Degrees celsius
Rated current In -
13.5 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
25.2 Millimetre

Availability Back Order

POA
