3SU10501LB200AA0

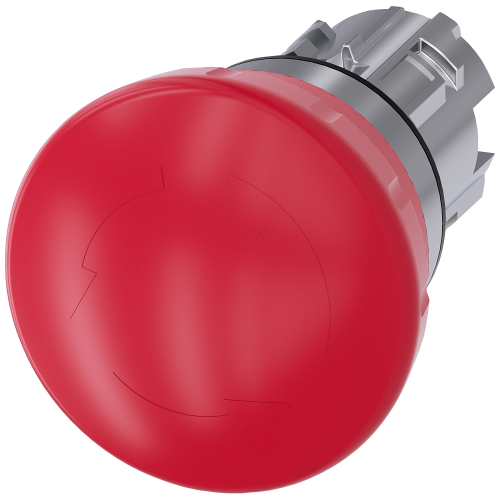

Emergency stop mushroom pushbutton, 22 mm, round, shiny metal, red, 40 mm, latching according to EN ISO 13850, rotate-to-unlatch

Manufacturer's No: 3SU1050-1LB20-0AA0     Manufacturer: Siemens
Emergency stop mushroom pushbutton, 22 mm, round, shiny metal, red, 40 mm, latching according to EN ISO 13850, rotate-to-unlatch

Availability On Request

POA
  • Emergency stop mushroom pushbutton - 22 mm diameter - Round shape - Shiny metal with red color - 40 mm in size - Latching mechanism according to EN ISO 13850 - Rotate-to-unlatch feature - Cannot be overruled for safety-related applications

  • SIRIUS ACT pushbuttons designed for controlling safety-related applications - Global product approvals - Available in four modern design lines of metal and plastic - Easy one-handed installation with innovative snap-on concept - Mounting holes do not require grooves due to integrated twist prevention - High degree of protection suitable for industrial and outdoor use - Resistant to dust, oils, and caustic solutions - Compatible with PROFINET, AS-Interface, and IO-Link for easy controller connection - Reduces wiring time and effort, minimizes errors, and offers flexibility

  • Versions available: - Mushroom diameter: 30/40/60 mm - Illuminated or non-illuminated - Pull-to-unlatch, rotate-to-unlatch, or key-operated release

  • Online Configurator for easy selection and ordering of devices, enclosures, and labels - Extensive documentation available - Manual, 3D data, and terminal diagram provided

  • Note: Single device, holders and modules to be ordered separately

Mandatory additional product

Selectable mandatory product

Accessories

Follow-up article

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1050-1LB20-0AA0
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Type of button -
UN
Colour front ring -
UN
Material front ring -
UN
Degree of protection (IP) -
IP67/IP69K
Colour button -
Red
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Diameter cap -
40 Millimetre
Height opening -
30.3 Millimetre
Hole diameter -
22.3 Millimetre
Suitable for emergency stop -
Switching function latching -
Unlocking method -
Turn-release
Width opening -
40 Millimetre
