506311

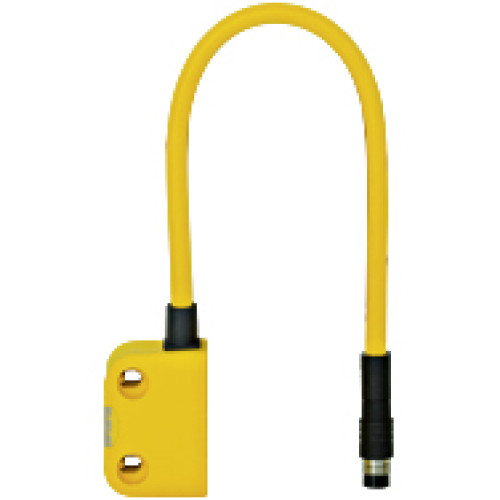

Magnetic safety switch 2 N/O, 1 signal contact N/O, square design, LED, IP67, operating distance depending on the actuator, for s

Manufacturer's No: PSEN ma1.4p-57/ 1switch     Manufacturer: Pilz
Magnetic safety switch 2 N/O, 1 signal contact N/O, square design, LED,  IP67, operating distance depending on the actuator, for series connection with PSEN ix1, height design 18 mm. PU = 1 actuator.

Availability Back Order

£68.42
  • Magnetic safety switch with 2 normally open contacts and 1 normally open auxiliary contact
  • Square design with LED indicator
  • IP67 rated for dust and water resistance
  • Operating distance varies based on the actuator
  • Compact height design of 18 mm
  • Intended for series connection with PSEN ix1
  • Package includes 1 sensor

Accessories



Product

Manufacturer Material ID -
PSEN ma1.4p-57/ 1switch
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
Number of semiconductor outputs with signalling function -
1
Number of protected contact energized outputs -
2
Type of electric connection -
Connector M8
Type of switching output -
Dry reed contact
Construction type housing -
Special construction
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Switching distance -
0 Millimetre
Voltage type -
DC
Width sensor -
26.4 Millimetre
Pilz

Availability Back Order

£68.42
