522120

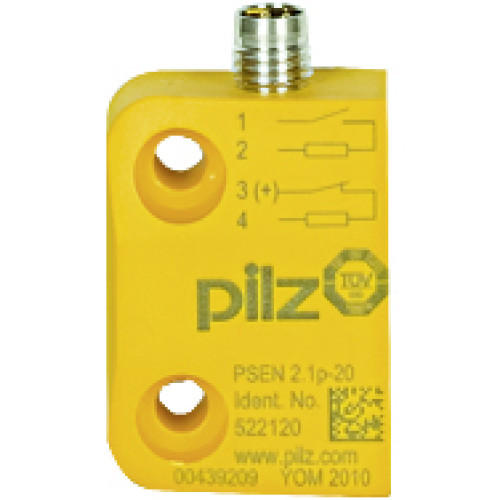

Magnetic safety switch 1NO/1NC, 4-pin M8 connector, square design, IP67 Operating distance 8 mm, height design 13 mm PU = 1 piece

Manufacturer's No: PSEN 2.1p-20/8mm/1switch     Manufacturer: Pilz
Magnetic safety switch 1NO/1NC, 4-pin M8 connector, square design, IP67 Operating distance 8 mm, height design 13 mm PU = 1 piece without actuator.

Availability Back Order

£46.35
  • Magnetic safety switch with 1 normally open (N/O) and 1 normally closed (N/C) contact
  • 4-pin M8 male connector
  • Square design with IP67 protection rating
  • Operating distance of 8 mm
  • Height design of 13 mm
  • Package includes 1 piece without actuator

Accessories



Product

Manufacturer Material ID -
PSEN 2.1p-20/8mm/1switch
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
Number of protected contact energized outputs -
2
Type of electric connection -
Connector M8
Type of switching output -
Dry reed contact
Construction type housing -
Special construction
Protected switch distance OFF -
8 Millimetre
Protected switch distance ON -
26 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Ambient temperature -
-25 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
36 Millimetre
Length of sensor -
13 Millimetre
Switching distance -
0.5 Millimetre
Voltage type -
DC
Width sensor -
26 Millimetre
Pilz
