524126

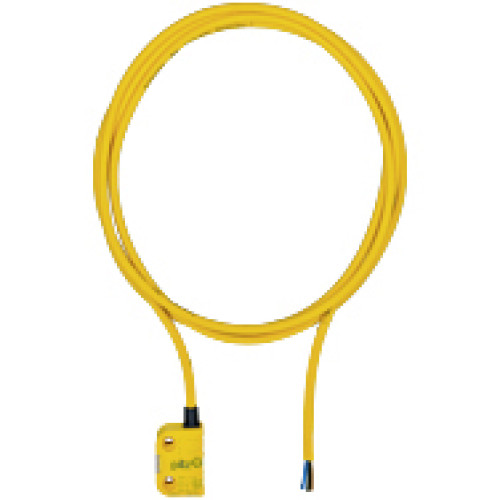

Magnetic safety switch 2 N/O, square design, with 5 m cable (PUR) IP6K9K, operating distance 8 mm, height design 13 mm PU = 1 piec

Manufacturer's No: PSEN 1.1a-20 /8mm/5m/1switch     Manufacturer: Pilz
Magnetic safety switch 2 N/O, square design, with 5 m cable (PUR) IP6K9K, operating distance 8 mm, height design 13 mm PU = 1 piece without actuator.

Availability Back Order

£61.50
  • Magnetic safety switch with 2 normally open contacts
  • Square design with a height of 13 mm
  • 5-meter PUR cable
  • IP69K rated for high-pressure washdown
  • Operating distance of 8 mm
  • Sold as a single piece without actuator
  • Certified by TÜV, EAC, UL, and ECOLAB

Accessories



Product

Manufacturer Material ID -
PSEN 1.1a-20 /8mm/5m/1switch
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
Number of protected contact energized outputs -
2
Type of electric connection -
Cable
Type of switching output -
Dry reed contact
Construction type housing -
Special construction
Protected switch distance OFF -
8 Millimetre
Protected switch distance ON -
26 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
36 Millimetre
Length of sensor -
13 Millimetre
Switching distance -
0.5 Millimetre
Voltage type -
DC
Width sensor -
26 Millimetre
Pilz

Availability Back Order

£61.50
