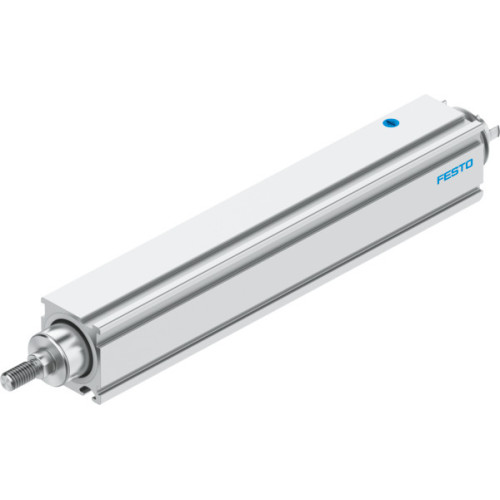

EPCC-BS-25-25-2P-A Electric cylinder

Manufacturer's No: EPCC-BS-25-25-2P-A     Manufacturer: Festo
EPCC-BS-25-25-2P-A Electric cylinder

Availability Back Order

£392.71
  • Electric cylinder EPCC-BS-25-25-2P-A
  • Size: 25 with 25mm stroke
  • Piston rod thread: M6
  • Spindle diameter: 6mm with 2mm pitch
  • Torsional backlash at piston rod: +/- 1 degree
  • Type of motor: Stepper and servo motor
  • Position detection: Via proximity switch
  • Design: Electric cylinder with ball screw drive
  • Max. acceleration: 5 m/s²
  • Max. rotational speed: 4000 RPM

Read more

  • Max. speed: 0.133 m/s
  • Repetition accuracy: ±0.02 mm
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0-95%, non-condensing
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 60°C
  • Max. radial force at drive shaft: 30 N
  • Max. feed force: 75 N
  • Mass moment of inertia: 0.0056 KGC per metre of stroke
  • Maintenance interval: Life-time lubrication
  • Material housing: Wrought aluminium alloy, smooth anodised
  • Material piston rod: High-alloy stainless steel
  • Material spindle nut: Steel
  • Material spindle: Rolled steel
  • RoHS-compliant materials
  • Note: Product suitable for use in battery production, excluding metals with more than 1% copper, zinc, or nickel by mass

Accessories



Product

Manufacturer Material ID -
EPCC-BS-25-25-2P-A
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
Festo

Availability Back Order

£392.71
