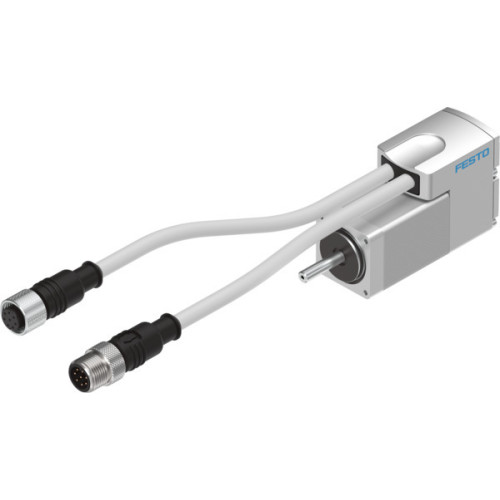

EMMS-ST-28-L-SE Stepper motor

Manufacturer's No: EMMS-ST-28-L-SE     Manufacturer: Festo
EMMS-ST-28-L-SE Stepper motor

Availability Back Order

£369.26
  • Model: EMMS-ST-28-L-SE
  • Stepper Motor without gearing or brake
  • Ambient Temperature: -10°C to 50°C
  • Storage Temperature: -20°C to 70°C
  • Relative Air Humidity: 0% to 85%
  • Conforms to Standard: IEC 60034
  • Insulation Protection Class: B
  • Temperature Class: B (EN 60034-1)
  • Rating Class: S1 (EN 60034-1)
  • Degree of Protection: IP65

Read more

  • Electrical Connector System: Plug
  • RoHS-Compliant Materials
  • Corrosion Resistance Class: 1 (Low corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Approvals: RCM Trademark, c UL us - Recognized (OL), CE Mark (EU EMC Directive, EU RoHS Directive), UKCA Marking (UK EMC Instructions, UK RoHS Instructions)
  • Nominal Operating Voltage: 48V DC
  • Motor Holding Torque: 0.09 Nm
  • Max. Rotational Speed: 6000 RPM
  • Stepper Angle for Complete Step: 1.8°
  • Stepping Angle Tolerance: ±5%
  • Nominal Motor Current: 1.4A
  • Voltage Constant, Phase: 6 V/Hz
  • Phase Winding Resistance: 2.3 Ohm
  • Phase Winding Inductance: 1.4 mH
  • Mass Moment of Inertia of Rotor: 0.018 kgcm²
  • Total Mass Moment of Inertia of Output: 0.018 kgcm²
  • Product Weight: 295g
  • Permissible Axial Shaft Load: 7N
  • Permissible Radial Shaft Load: 20N
  • Rotor Position Sensor: Incremental Encoder
  • Rotor Position Encoder Interface: RS422 TTL AB Channels + Zero Index
  • Rotor Position Sensor Measuring Principle: Optical

Accessories



Product

Manufacturer Material ID -
EMMS-ST-28-L-SE
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
CN
UNSPSC -
26101205
Festo

Availability Back Order

£369.26
