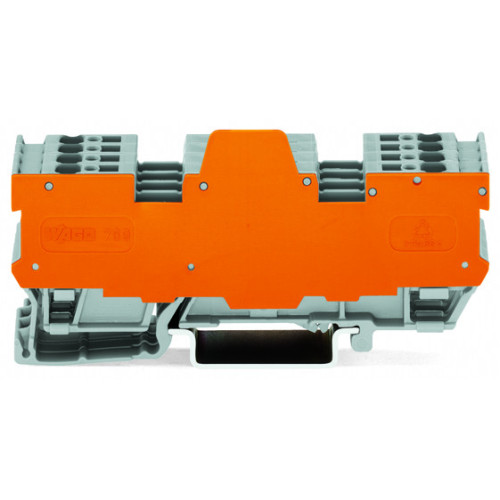

769-194/769-319

1-conductor/1-conductor terminal block for pluggable modules, 8-pole, with 2-conductor terminal blocks, gray

Manufacturer's No: 769-194/769-319     Manufacturer: WAGO
1-conductor/1-conductor terminal block for pluggable modules, 8-pole, with 2-conductor terminal blocks, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£7.33
  • Terminal block type: 1-conductor/1-conductor
  • Number of poles: 8
  • Includes 2-conductor terminal blocks
  • 2 jumper positions
  • Features orange separator plate
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Wire size capacity: 4 mm²
  • Utilizes CAGE CLAMP® technology
  • Color: Gray

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.82
On Request

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

Ferrule, Sleeve for 0.75 mm² / AWG 20, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-102
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / AWG 22, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-101
Price £0.02
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-103
Price £0.02
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-104
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-201
Price £0.05
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-202
Price £0.05
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-203
Price £0.05
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-204
Price £0.05
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-206
Price £0.05
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-301
Price £0.05
On Request

Ferrule, Sleeve for 0.34 mm² / 22 AWG, insulated, light turquoise

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-302
Price £0.05
On Request

Push-in type wire jumper, insulated, 60 mm long, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-125
Price £4.72
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-126
Price £4.75
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-127
Price £4.91
On Request

Staggered jumper, from 1 to 6, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-456
Price £1.29
On Request

Test plug adapter, 5 mm wide, for test plug (2.3 mm Ø), gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-404
Price £1.64
On Request

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-409
Price £0.65
On Request

Staggered jumper, from 1 to 3, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-453
Price £0.80
On Request

Staggered jumper, from 1 to 4, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-454
Price £0.99
On Request

Staggered jumper, from 1 to 5, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-455
Price £1.11
On Request

Spacer module, modular, bridging commoned terminal blocks, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-419
Price £0.33
On Request

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-471
Price £0.11
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-123
Price £4.88
On Request

Test plug module, modular, suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-418
Price £1.38
On Request

End and intermediate plate, 1.1 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-317
Price £0.47
On Request

End and intermediate plate, 1.1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-318
Price POA
On Request

Seperator plate, 1.1 mm thick, oversized, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-319
Price POA
On Request

Pin cover, with marker slot for miniature WSB, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-438
Price £0.27
On Request

Pin cover, with marker slot for miniature WSB, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-439
Price POA
On Request

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-472
Price POA
On Request

Staggered jumper, from 1 to 7, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-457
Price £1.54
On Request

Staggered jumper, from 1 to 8, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-458
Price £1.79
On Request

Empty component plug housing, Type 15, 20 mm wide, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 786-102
Price POA
On Request

Empty component plug housing, Type 16, 25 mm wide, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 786-103
Price POA
On Request


Product

Manufacturer Material ID -
769-194/769-319
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
DE
Minimum Order Quantity -
5
UNSPSC -
39121402

Technical Specification

Length -
87.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
21.1 Millimetre
Height at lowest possible mounting height -
28.5 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
28.5 Millimetre
Height -
87.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
8
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
16 Ampere
Rated voltage -
400 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
21.1 Millimetre
