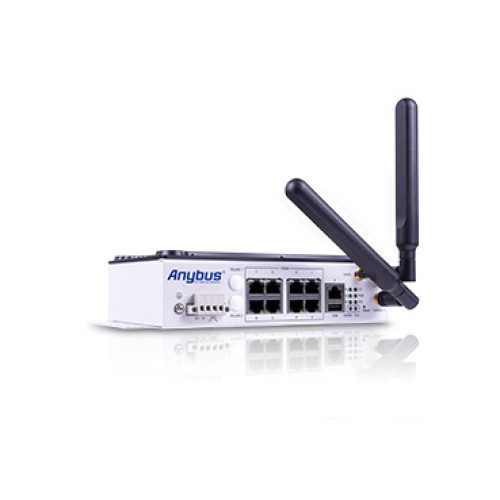

Industrial 4G router

LTE Cat.4 modem 2x2 MIMO, 150 Mbit/s downlink and 50 Mbit/s uplink, 4G/3G/2G full cellular network compatibility

Industrial 4G router
Industrial 4G router

FEATURES & BENEFITS

HIGH THROUGHPUT WIRELESS PERFORMANCE

  • LTE Cat.4 modem 2x2 MIMO, 150 Mbit/s downlink and 50 Mbit/s uplink
  • 4G/3G/2G full cellular network compatibility

ETHERNET ROUTING SWITCH

  • 8 Fast Ethernet LAN ports
  • 1 Gigabit Ethernet WAN port
  • IEEE 802.1p QoS/802.1Q VLAN priority tagging
  • RIPv2
  • Traffic control

ENHANCED SECURITY AND REDUNDANCY FOR CRITICAL APPLICATIONS

  • Firewall for traffic classification, port forwarding
  • VRRP (Virtual Routing Redundancy Protocol).
  • GRE (Generic Routing Encapsulation RFC2784)
  • Supports NAT, DMZ for LAN protection
  • Supports IPsec, OpenVPN and L2TP for secure connection

    RUGGED DESIGN

  • Effective heat dissipation design for operating in -40 to 75°C environments
  • Railway EMC: EN50121-4 compliance
  • IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
  • Vehicle: E-mark compliance
  • Radio: RED for CE Marking
  • Emission: FCC part 15 B Class A

    MANAGEMENT FEATURES

  • Various configuration paths, including WebGUI, CLI and SNMP
  • Diagnostic tools, including LED, Ping/Traceroute, SNMP Trap, E-mail alert and Syslog
  • External backup/restore, Firmware update
Ethernet ports

LAN: 8 x 100 Mbit/s RJ45, auto negotiation, auto MDI/MDI-X
WAN: 1 x 1 Gbit/s RJ45, auto negotiation, auto MDI/MDI-X

USB 1 x USB type A
Operating temp. -40oC-75oC, 5-95 % non-condensing
Cellular standards

LTE cat.4 2x2 MIMO, 4G/3G/2G fall back
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19

Data speeds

LTE-FDD: DL: max. 150 Mbit/s, UL: max. 50 Mbit/s
LTE-TDD: DL: max. 130 Mbit/s, UL: max. 35 Mbit/s
HSPA: DL: max. 42 Mbit/s, UL: max. 5.76 Mbit/s
EDGE: DL: max. 236.8 kbit/s, UL: max. 236.8 kbit/s
GPRS: DL: max. 85.6 kbit/s, UL: max. 85.6 kbit/s

GNSS

GPS
GLONASS
Galileo
BeiDou

Power

8-32 VDC (max. 4.8 W)
4-pin removable terminal block connector
2-pin for power input
2-pin for dry relay output (max 0.5 A/24 VDC)

Weight 1 400 g
Housing material Steel/aluminum
Ingress protection IP31
Dimensions 200 x 126 x 51 mm (without DIN rail clip)
Mounting Panel mount or DIN rail mount (bracket included)
Configuration  CGI WebGUI, SSH, Telnet, SNMP
