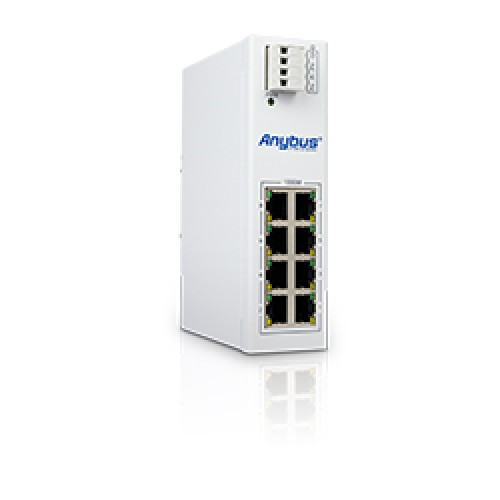

Unmanaged L2 switch

8 port Gigabit Ethernet with Auto Negotiation

Unmanaged L2 switch
Unmanaged L2 switch

FEATURES & BENEFITS

FULL GIGABIT SWITCHING

  • 8 port Gigabit Ethernet with Auto Negotiation
  • 4k MAC address table
  • Supports 9 kB Jumbo Frame
  • IEEE 802.1p QoS/802.1Q VLAN
  • Broadcast storm protection
  • Store and forward with non-blocking switch fabric

IEEE 802.AZ EEE POWER MANAGEMENT

  • Ultra-low power consumption, max 2.6W
  • Energy efficient with idle power saving mode
  • Support for dual power supplies

RUGGED MECHANICAL DESIGN

  • IP40 ingress protection
  • DIN-rail mount
  • Wide operating temperature range, -40 to 70°C

Ethernet ports

8 x 1 Gbit/s RJ45, auto negotiation

Operating temp.

-40oC-70oC, 5-95 % non-condensing

Data speeds

1000Base-TX

100Base-TX

10Base-T

Power

12/24/48 VDC (9.6-60 VDC)

IEEE 802.3az EEE Power management: Ultra low power design (max 2.6 W), Energy efficient Ethernet with idle power saving mode

Support for dual power supplies

Weight

560 g

Housing material

Steel

 Ingress protection

IP40

 Dimensions

145 x 100 x 40 mm (without DIN rail clip)

 Mounting

DIN rail mount (bracket included)
