3RA23178XB302BB4

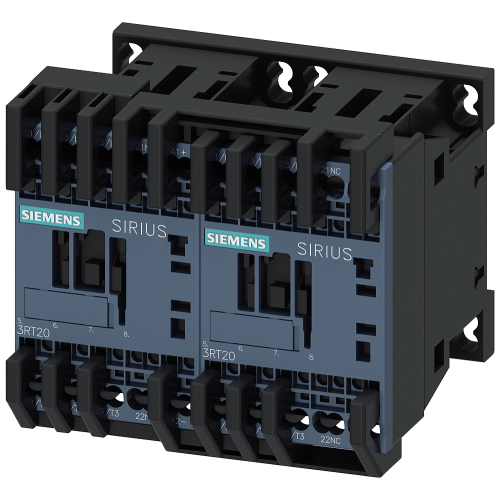

Reversing contactor assembly AC-3, 5.5 kW/400 V 24 V DC 3-pole S00

Manufacturer's No: 3RA2317-8XB30-2BB4     Manufacturer: Siemens
Reversing contactor assembly AC-3, 5.5 kW/400 V 24 V DC 3-pole S00

View 3D

Availability Back Order

£123.94
  • Reversing contactor assembly
  • AC-3e/AC-3 rated
  • 12 A current rating
  • 5.5 kW power rating at 400 V
  • 3-pole configuration
  • 24 V DC control voltage
  • Spring-loaded terminal
  • Electrical and mechanical interlock

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video
Product video
Presentation video
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RA2317-8XB30-2BB4
Net Weight -
0.71kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Function -
Reversing safety
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power NEMA -
5.516240625 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
DC
