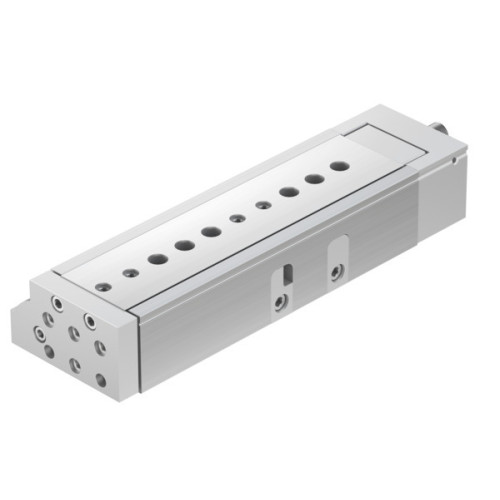

DGSL-25-100-EA Mini slide

Manufacturer's No: DGSL-25-100-EA     Manufacturer: Festo
DGSL-25-100-EA Mini slide

Availability Available to order

£31.06
  • Mini slide with a stroke of 100mm
  • Adjustable end position range: 66.5mm front, 5.5mm rear
  • Piston diameter: 32mm
  • Operating mode: Yoke drive unit
  • Cushioning: Short elastic cushioning rings at both ends
  • Guide: Ball bearing cage guide
  • Position detection via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1 bar, 8 bar
  • Max. speed: 0.8m/s
  • Repetition accuracy: 0.3mm

Read more

  • Double-acting operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 0.55Nm
  • Cushioning length: 1.3mm
  • Max. forces: Fy 4750N, Fz 4750N
  • Max. moments: Mx 130Nm, My 80Nm, Mz 80Nm
  • Theoretical forces at 0.6MPa: Return stroke 415N, Advance stroke 483N
  • Moving mass: 1761g, Product weight: 4600g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • RoHS-compliant materials: Wrought aluminium alloy cover and housing, HNBR seals, High-alloy stainless steel piston rod

Accessories



Product

Manufacturer Material ID -
DGSL-25-100-EA
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Ambient temperature during operating -
-30 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
90 Millimetre
Length of sensor -
33 Millimetre
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Width sensor -
52 Millimetre
