541010

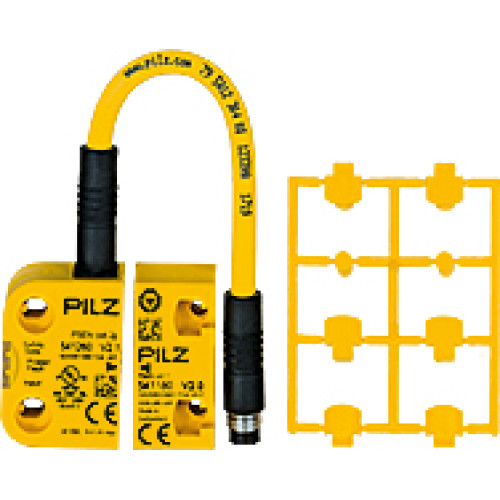

RFiD safety switch 2 safe semiconductor outputs, 8-pin M8 connector, one direction of actuation IP67, operating distance 11 mm, Sa

Manufacturer's No: PSEN cs3.1p /PSEN cs3.1 1unit     Manufacturer: Pilz
RFiD safety switch 2 safe semiconductor outputs, 8-pin M8 connector, one direction of actuation IP67, operating distance 11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece coded switch with actuator.

Availability Back Order

£7.59
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M8 male connector
  • Actuation in one direction
  • Supports SDD
  • IP67 rated for dust and water resistance
  • Switching distance: 11mm
  • Actuation range: Sao = 8mm, Sar = 20mm
  • Package includes 1 piece coded switch with actuator

Accessories



Product

Manufacturer Material ID -
PSEN cs3.1p /PSEN cs3.1 1unit
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
40141609

Technical Specification

-
Pilz
Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Width sensor -
26 Millimetre
Pilz

Availability Back Order

£7.59
