3KD46400QE100

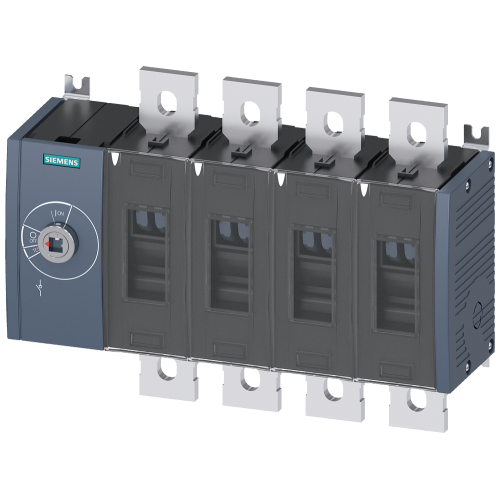

Switch disconnector 630 A, size 4, 4-pole, front operating mechanism on left, basic unit

Manufacturer's No: 3KD4640-0QE10-0     Manufacturer: Siemens
Switch disconnector 630 A, size 4, 4-pole, front operating mechanism on left, basic unit

Availability Back Order

£642.60
  • Switch disconnector
  • 630 A
  • Size 4
  • 4-pole
  • Front operating mechanism on the left
  • Basic unit without handle
  • Flat terminal

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD4640-0QE10-0
Net Weight -
9.20kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Type of control element -
None
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
1000 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
8
Number of auxiliary contacts as normally open contact -
8
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
355 Kilowatt
Rated permanent current at AC-21, 400 V -
630 Ampere
Rated permanent current at AC-23, 400 V -
630 Ampere
Rated permanent current Iu -
630 Ampere
Rated short-time withstand current lcw -
30 kiloampere
Suitable for floor mounting -
Switching power at 400 V -
355 Kilowatt
Type of electrical connection of main circuit -
Flat plug-in connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£642.60
