2000-511

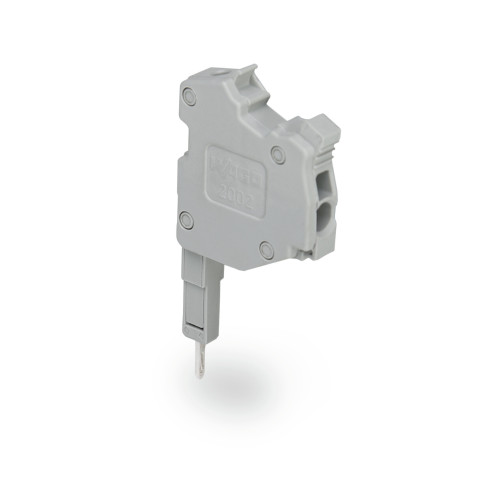

TOPJOB®S L-type test plug module, modular, for jumper contact slot, gray

Manufacturer's No: 2000-511     Manufacturer: WAGO
TOPJOB®S L-type test plug module, modular, for jumper contact slot, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • TOPJOB®S L-type test plug module
  • Modular design for jumper contact slot
  • 1-pole configuration
  • Accommodates wires up to 1.00 mm²
  • Color: Gray

Accessories

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Available to order

WMB marking card, as card, for terminal block width 5 - 17.5 mm, brown

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-5501/000-014
Price POA
Available to order


Product

Manufacturer Material ID -
2000-511
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121410

Technical Specification

Width/grid dimension -
5 Millimetre
Connectable conductor cross section -
0.14 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Model -
Pin insert
Number of poles -
1
Rated current In -
13.5 Ampere
Rated voltage -
500 Volt
Tackable -
Total number of poles (without ground contact) -
1
Type of electric connection -
Spring clamp connection
