2001-511

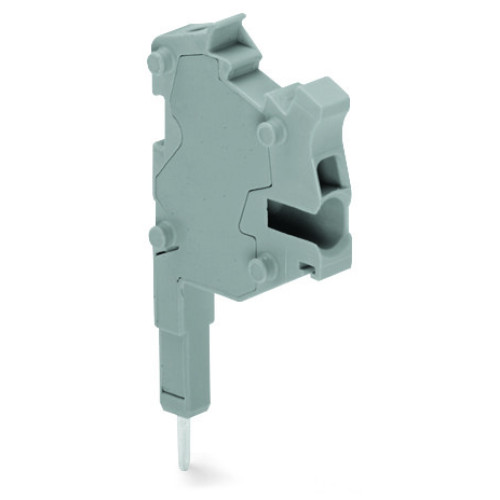

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 1,50 mm²; gray

Manufacturer's No: 2001-511     Manufacturer: WAGO
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 1,50 mm²; gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.2375
List Price £1.65
  • Modular TOPJOB®S connector
  • For jumper contact slot
  • 1-pole
  • 1.50 mm²
  • Color: Gray

Accessories

Price £0.09
Back Order
Price £0.09
Back Order
Price £0.09
Back Order

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-171
Price £0.0825
List Price £0.11
Back Order

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-549
Price £0.2475
List Price £0.33
Back Order

End plate; for modular TOPJOB®S connector; 1.5 mm thick; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2002-541
Price £0.255
List Price £0.34
In Stock

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 793-4501/000-006
Price POA
Back Order

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 793-4501/000-007
Price POA
Back Order

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 793-4501/000-023
Price POA
Back Order


Product

Manufacturer Material ID -
2001-511
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Width/grid dimension -
4.2 Millimetre
Connectable conductor cross section -
0.25 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Model -
Pin insert
Number of poles -
1
Rated current In -
18 Ampere
Rated voltage -
500 Volt
Tackable -
Total number of poles (without ground contact) -
1
Type of electric connection -
Spring clamp connection

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.2375
List Price £1.65
