SINAMICS G120C, frame sizes FSAA to FSF, with Intelligent Operator Panel IOP‑2
SINAMICS G120C compact converters offer a well-balanced combination of features to address a wide range of applications. They are compact, rugged devices that are easy to operate and can be optionally equipped with a basic or advanced operator panel.
SINAMICS G120C converters are especially suitable when it comes to meeting the requirements of system integrators, OEMs and distributors regarding high productivity and tailored performance.
SINAMICS G120C is a compact converter for control cabinet mounting in IP20 degree of protection where the Control Unit (CU) and Power Module (PM) function units are combined in one device.
The compact mechanical design and the high power density allow these devices to be installed in machine control enclosures and control cabinets for maximum space utilization. The SINAMICS G120C compact converter can be butt-mounted directly, without derating at temperatures up to 40 °C (104 °F).

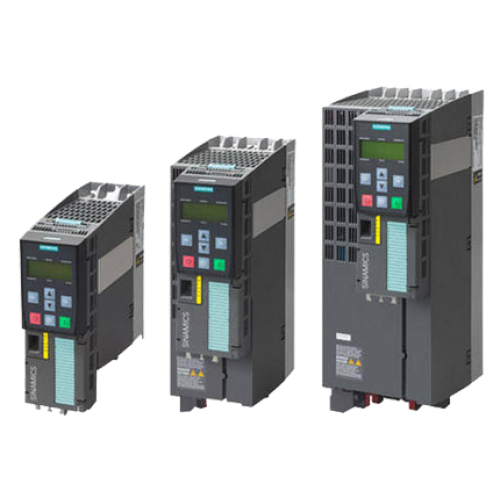

SINAMICS G120C, frame size FSAA with BOP-2
SINAMICS G120C can be integrated into the widest range of applications, either using the integrated digital and analog inputs or via the integrated fieldbus interface (available in USS, Modbus RTU, PROFIBUS, PROFINET, EtherNet/IP versions). Especially the product versions with integrated PROFIBUS/PROFINET interface make full integration into the Siemens TIA family possible, therefore allowing the advantages of the seamless TIA product family to be fully utilized. SINAMICS G120C devices are preset in the factory so that they can be immediately connected to PROFIBUS or PROFINET fieldbus systems without parameterization.
Wireless commissioning, operation and diagnostics via mobile device or laptop thanks to the optional web server module SINAMICS G120 Smart Access enabling user-friendly operation and easy access to the converter, even if this is installed in areas difficult to access.
SINAMICS G120C is also equipped with the safety function STO (Safe Torque Off) as standard, which is used to safely stop drives. As a consequence, machine manufacturers can simply comply with current machinery directives with minimum associated costs.
SINAMICS G120C can control asynchronous (induction) motors in the power range from 0.37 kW up to 132 kW (0.5 hp to 200 hp). Reliable and efficient motor operation is achieved by using state-of-the-art IGBT technology combined with vector control. The extensive range of functions integrated in the SINAMICS G120C also offers a high degree of protection for the converter and motor.
Line filters
SINAMICS G120C can be ordered with or without integrated Class A line filters. Optionally, an external Class B line filter can be used for classifying in a higher interference class.
Line reactors
Line reactors smooth the current drawn by the converter and thus reduce harmonic components in the line current. Through the reduction of the current harmonics, the thermal load on the power components in the rectifier and in the DC link capacitors is reduced as well as the harmonic effects on the supply. The use of a line reactor increases the service life of the converter. A DC link reactor is integrated in frame sizes FSD to FSF, and therefore no line reactor is required.
Recommended line-side overcurrent protection devices
Overcurrent protection devices are absolutely necessary for the operation of the converters. The table listed in the section “Recommended line-side overcurrent protection devices” provides recommendations according to IEC and UL regulations, depending on the area of application. Recommendations on further overcurrent protection devices are available at:
https://support.industry.siemens.com/cs/document/109750343
Additional information about the listed Siemens fuses is available in Catalog LV 10 as well as in the Industry Mall.
Braking resistors
Excess energy in the DC link is dissipated in the braking resistor. The braking resistors are designed for use with the SINAMICS G120C. This has an integrated braking chopper (electronic switch). For the electromagnetically compatible connection of an optionally connectable braking resistor, the corresponding shield connection kit is to be ordered for frame sizes FSD to FSF.
Output reactors
Output reactors reduce the rate of voltage rise (dv/dt) and the height of the current peaks, and enable longer motor cables to be connected.
Sine-wave filter (for frame size FSAA)
Sine-wave filters limit the rate of voltage rise (dv/dt) and the peak voltages on the motor winding. Similar to an output reactor, they enable the connection of longer motor cables. A sine-wave filter 6SE6400‑3TD00-4AD0, suitable for base mounting, is available for SINAMICS G120C, frame size FSAA, 0.55 kW to 2.2 kW. For 2.2 kW, operation of the sine-wave filter that is suitable for base mounting is only permitted for operating the converter with rated power of 1.5 kW based on high overload (HO).
For technical specifications, see the datasheet on the Internet:
https://support.industry.siemens.com/cs/document/24479847
Additional information is available in the Operating Instructions on the Internet at:
http://www.siemens.com/sinamics-g120c/documentation
IOP‑2 Intelligent Operator Panel
Graphics-based, user-friendly and powerful operator panel for commissioning and diagnostics as well as local operator control and monitoring of SINAMICS G120C.
BOP-2 Basic Operator Panel
A 2-line display to provide support when commissioning and troubleshooting the drive. The drive can be locally controlled.
Memory card
The parameter settings for a converter can be stored on the SINAMICS SD memory card. When service is required, e.g. after the converter has been replaced and the data have been downloaded from the memory card, the drive system is immediately ready for use again. The associated memory card holder is integrated in the converter.
SINAMICS G120 Smart Access
Wireless commissioning, operation and diagnostics via mobile device or laptop thanks to the optional web server module SINAMICS G120 Smart Access enabling user-friendly operation and easy access to the converter, even if this is installed in areas difficult to access.
PC converter connection kit 2
For controlling and commissioning a converter directly from a PC if the STARTER commissioning tool or SINAMICS Startdrive has been installed on the PC.
Shield connection kits
A shield connection kit is included in the scope of delivery for frame sizes FSAA to FSC.
A set of shield plates is included in the scope of delivery for the motor and signal cables corresponding to the frame size for the frame sizes FSD to FSF. For the electromagnetically compatible connection of an optionally connectable braking resistor, the corresponding shield connection kit is to be ordered for frame sizes FSD to FSF.
Further selected accessories are available from “Siemens Product Partner for Drives Options”: http://www.siemens.com/drives-options-partner
Shield connection kits
A shield connection kit is supplied as standard with frame sizes FSAA to FSC. These shield connection kits can also be ordered as spare parts.
A set of shield plates is included in the scope of delivery for the motor and signal cables corresponding to the frame size for the frame sizes FSD to FSF. For the electromagnetically compatible connection of an optionally connectable braking resistor, the corresponding shield connection kit is to be ordered for frame sizes FSD to FSF.
Spare parts kit
This kit comprises four I/O terminals, one RS485 terminal, two pairs of Control Unit doors (1 × PN and 1 × other communication versions) and one blanking cover.
Set of connectors
A set of connectors for the line feeder cable, braking resistor and motor cable can be ordered corresponding to the frame size of the SINAMICS G120C converter.
Roof-mounted fan
A roof-mounted fan (at the top of the device) comprising a pre-assembled unit with holder and fan can be ordered corresponding to the frame size of the SINAMICS G120C.
Fan unit
A replacement fan (at the rear of the device; heat sink) comprising a pre-assembled unit with holder and fan can be ordered corresponding to the frame size of the SINAMICS G120C.
Connection example for SINAMICS G120C
USS/Modbus RTU communication interface
PROFIBUS DP communication interface
PROFINET, EtherNet/IP communication interface
The following line-side components, DC link components and load-side power components are optionally available in the appropriate frames sizes:
Frame size | ||||||
---|---|---|---|---|---|---|
FSAA, FSA | FSB | FSC | FSD | FSE | FSF | |
Line-side components | ||||||
Line filter class A | F | F | F | F | F | F |
Line filter class B | U 1) | U | U | – | – | – |
Line reactor | S 1) | S | S | I | I | I |
DC link components | ||||||
Braking resistor | S 1) | S | S | S | S | S |
Load-side power components | ||||||
Output reactor | S 1) | S | S | S | S | S |
Sine-wave filter | 1) | – | – | – | – | – |
U = Base component
S = Lateral mounting
I = Integrated
F = Converter available with and without integrated filter class A
– = Not possible
1) Line filters, line reactors, braking resistors, output reactors and sine-wave filters that are suitable for base mounting are also available for SINAMICS G120C, frame size FSAA, 0.55 kW to 2.2 kW. For 2.2 kW, operation of the line reactors, braking resistors, output reactors and sine-wave filters that are suitable for base mounting is only permitted for operating the converter with rated power of 1.5 kW based on high overload (HO).
Additional information is available in the operating instructions on the Internet at:
http://www.siemens.com/sinamics-g120c/documentation
The following load-side power components are optionally available in the appropriate frame sizes and result in the following maximum cable lengths, if necessary in combination with line filters for complying with EMC requirements:
Maximum permissible motor cable lengths (shielded/unshielded) in m (ft) | |||||||
---|---|---|---|---|---|---|---|
FSAA | FSA | FSB | FSC | FSD | FSE | FSF | |
Without optional power components | |||||||
Versions without integrated line filter | 150 1)/150 (492 1))/492) | 150/150 (492/492) | 150/150 (492/492) | 150/150 (492/492) | 200/300 (656/984) | 200/300 (656/984) | 300/450 (984/1476) |
Versions with integrated line filter class A | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) | 200/300 (656/984) | 200/300 (656/984) | 300/450 (984/1476) |
With optional output reactor | |||||||
At 380 … 415 V 3 AC | 150/225 (492/738) | 150/225 (492/738) | 150/225 (492/738) | 150/225 (492/738) | 200/300 (656/984) 4) | 200/300 (656/984) 4) | 300/450 (984/1476) 4) |
At 440 … 480 V 3 AC | 100/150 (328/492) | 100/150 (328/492) | 100/150 (328/492) | 100/150 (328/492) | 200/300 (656/984) 4) | 200/300 (656/984) 4) | 300/450 (984/1476) 4) |
With integrated line filter class AAccording to EN 55011 to comply with radio interference emissions according to EN 61800‑3 EMC Category C2 | 25 2)/– (82 2))/–) | 25 2)/– (82 2))/–) | 25 2)/– (82 2))/–) | 25 3)/– (82 3))/–) | 150/– (492/–) | 150/– (492/–) | 150/– (492/–) |
With optional, external line filter class BAccording to EN 55011 to comply with cable-conducted radio interference emissions according to EN 61800‑3 EMC Category C1 5), together with versions without integrated line filters | 50/– (164/–) | 25/– (82/–) | 50/– (164/–) | 50/– (164/–) | – | – | – |
With optional, external line filter class BAccording to EN 55011 and output reactor to comply with radio interference emissions according to EN 61800‑3 EMC Category C2 5), together with versions without integrated line filters | |||||||
At 380 … 415 V 3 AC | 150/– (492/–) | 150/– (492/–) | 150/– (492/–) | 150/– (492/–) | – | – | – |
At 440 … 480 V 3 AC | 100/– (328/–) | 100/– (328/–) | 100/– (328/–) | 100/– (328/–) | – | – | – |
1) For SINAMICS G120C frame size FSAA 2.2 kW with low-capacitance CY cable 150 m (492 ft) (shielded) – otherwise 125 m (410 ft) (shielded).
2) With low-capacitance CY cable 50 m (164 ft) (shielded).
3) With low-capacitance CY cable 100 m (328 ft) (shielded).
4) For frame sizes FSD to FSF the maximum permissible cable lengths are not increased with an output reactor. By means of the output reactor, the loading of the motor windings is reduced by lower rates of voltage rise (dv/dt). By means of two output reactors connected in series, the maximum permissible cable lengths for frame sizes FSD and FSE are increased to 350 m (1148 ft) (shielded) and 525 m (1723 ft) (unshielded), and for frame size FSF to 525 m (1723 ft) (shielded) and 800 m (2625 ft) (unshielded).
5) Additional information is available in the operating instructions on the Internet at:
http://www.siemens.com/sinamics-g120c/documentation
The following electronic configuring aids and engineering tools are available for SINAMICS G120C compact converters:
The interactive catalog CA 01 – the offline Industry Mall of Siemens – contains over 100000 products with approximately 5 million possible drive system product variants. The Drive Technology Configurator (DT Configurator) has been developed to facilitate selection of the correct motor and/or converter from the wide spectrum of drives. It is integrated as a selection tool in Catalog CA 01.
In addition, the DT Configurator can be used on the Internet without requiring any installation. The DT Configurator can be found in the Siemens Industry Mall at the following address:
http://www.siemens.com/dt-configurator
The SIZER for Siemens Drives engineering tool makes it easy to configure the SINAMICS drive family. It provides support when selecting the hardware and firmware components necessary to implement a drive task. SIZER for Siemens Drives is designed to support configuring of the entire drive system.
You can find further information on the SIZER for Siemens Drives engineering tool in the section Engineering tools.
The SIZER for Siemens Drives engineering tool is available free on the Internet at
http://www.siemens.com/sizer
The STARTER commissioning tool allows menu-prompted commissioning, optimization and diagnostics. Apart from the SINAMICS drives, STARTER is also suitable for MICROMASTER 4 devices.
You can find further information on the STARTER commissioning tool in the section Engineering tools.
More information about the STARTER commissioning tool is available on the Internet at
http://www.siemens.com/starter
SINAMICS Startdrive is a tool for configuring, commissioning, and diagnosing the SINAMICS family of drives and is integrated into the TIA Portal. SINAMICS Startdrive can be used to implement drive tasks with the SINAMICS G110M, SINAMICS G120, SINAMICS G120C, SINAMICS G120D and SINAMICS G120P converter series. The commissioning tool has been optimized with regard to user friendliness and consistent use of the TIA Portal benefits of a common working environment for PLC, HMI and drives.
You can find further information on the SINAMICS Startdrive commissioning tool in the section Engineering tools.
The SINAMICS Startdrive commissioning tool is available free on the Internet at
http://www.siemens.com/startdrive
Drive ES is the engineering system that can be used to integrate the communication, configuration and data management functions of Siemens drive technology into the SIMATIC automation world easily, efficiently and cost-effectively. Two software packages are available for SINAMICS – Drive ES Basic Maintenance and Drive ES PCS.
You can find further information on the Drive ES engineering system in the section Engineering tools.
More information about the Drive ES engineering system is available on the Internet at
http://www.siemens.com/drive-es
Unless explicitly specified otherwise, the following technical specifications are valid for all SINAMICS G120C compact converters.
General technical specifications | |
---|---|
Mechanical specifications | |
Vibratory load | |
Transport acc. to EN 60721‑3‑2 1) | Class 1M2 |
Operation acc. to EN 60721‑3‑3 | Class 3M1 |
Shock load | |
Transport acc. to EN 60721‑3‑2 1) | Class 1M2 |
Operation acc. to EN 60721‑3‑3 | Class 3M2 |
Degree of protection | IP20/ UL open type |
Permissible mounting position | Vertical wall mounting |
Ambient conditions | |
Protection classAccording to EN 61800‑5‑1 | Class III (PELV1) |
Touch protectionAccording to EN 61800‑5‑1 | Class I (with protective conductor system) |
Humidity, max. | 95 % at 40 °C (104 °F), condensation and icing not permissible |
Ambient temperature | |
Storage 1) acc. to EN 60068‑2‑1 | -40 … +70 °C (-40 … +158 °F) |
Transport 1) acc. to EN 60068‑2‑1 | -40 … +70 °C (-40 … +158 °F) |
Operation acc. to EN 60068‑2‑2 | |
Frame sizes FSAA to FSC | -10 … +40 °C (14 … 104 °F) without derating |
Frame sizes FSD to FSF | -20 … +40 °C (-4 … +104 °F) without derating |
All frame sizes | >40 … 50 °C (104 … 122 °F) see derating characteristics |
All frame sizes with operator panel | 0 … 50 °C (32 … 122 °F) see also derating characteristics |
Environmental class in operation | |
Harmful chemical substances | Class 3C2 to EN 60721‑3‑3 |
Organic/biological pollutants | Class 3B1 to EN 60721‑3‑3 |
Degree of pollution | 2 acc. to EN 61800 |
Standards | |
Compliance with standards 2) | CE, UL, cUL, RCM, SEMI F47, RoHS, EAC |
Fail-safe certification | Function: Safe Torque Off (STO) |
According to IEC 61508 | SIL 2 |
According to EN ISO 13849‑1 | PL d and Category 3 |
CE marking, according to | EMC Directive 2014/30/EULow Voltage Directive 2014/35/EU |
EMC Directive 2)According to EN 61800‑3 | |
Interference immunity | The SINAMICS G120C compact converters are tested according to the interference immunity requirements for environments according to Category C3. |
Interference emissions | |
Frame sizes FSAA to FSF without integrated line filter |
3) |
Frame sizes FSAA to FSC with integrated line filter class A |
Observance of the limit values according to Category C3Observance of the limit values for conducted interferences and field-conducted interference emissions according to Category C2 4) 5) |
Frame sizes FSAA to FSC without integrated line filter with optional line filter class B |
Observance of the limit values for conducted interferences according to Category C1 and field-conducted interference emissions according to Category C2 4) 5) |
Frame sizes FSD to FSF with integrated line filter class A |
Observance of the limit values according to Category C3 and C2 4) |
Note:The EMC product standard EN 61800-3 does not apply directly to a frequency converter but to a PDS (Power Drive System), which comprises the complete circuitry, motor and cables in addition to the converter. The frequency converters on their own do not generally require identification according to the EMC Directive. |
1) In product packaging.
2) More information is available in the operating instructions on the Internet at: http://www.siemens.com/sinamics-g120c/documentation
3) Non-filtered devices are designed for operation in IT systems or in conjunction with an RCD. The customer must provide suitable RI suppression equipment to ensure that these devices comply with the limits defined for Category C3 or C2.
4) Max. permissible cable lengths see Technical specifications for power electronics.
5) SINAMICS G120C compact converters, frame size FSB, with PROFINET interface (Article No.: 6SL3210-1KE21-.AF1) additionally require a line reactor.
SINAMICS G120C compact converter | USS, Modbus RTU version | PROFIBUS DP version | PROFINET, EtherNet/IP version |
---|---|---|---|
6SL3210-1KE..-..B1 6SL3210-1KE..-..B2 |
6SL3210-1KE..-..P1 6SL3210-1KE..-..P2 |
6SL3210-1KE..-..F1 6SL3210-1KE..-..F2 |
|
Integrated bus interface | |||
Fieldbus protocols | USSModbus RTU (switchable using a parameter) |
PROFIBUS DP | PROFINETEtherNet/IPODVA AC/DC driveSINAMICS profiles |
Profiles | – | PROFIdrive Profile V4.1PROFIsafe | PROFIdrive Profile V4.1PROFIsafePROFIenergy |
Hardware | Plug-in terminal, insulated, USS: max. 187.5 kBaud Modbus RTU: 19.2 kBaud, Bus terminating resistor that can be switched in |
9-pin SUB-D socket, insulated, max. 12 Mbit/s Slave address can be set using DIP switches |
2 × RJ45, max. 100 Mbit/s (full duplex), the device name can be stored on the device |
I/O interfaces | |||
Signal cable cross-section | 0.15 … 1.5 mm2 (28 … 16 AWG) | ||
Digital inputs – Standard | 6 isolated inputsOptically isolated; Free reference potential (own potential group) NPN/PNP logic can be selected using the wiring |
||
Switching level: 0 → 1 | 11 V | ||
Switching level: 1 → 0 | 5 V | ||
Digital inputs, fail-safe | 1When using the standard digital inputs (DI4+DI5) Safety function: Safe Torque Off (STO) |
||
Digital outputs | 1 relay changeover contact 30 V DC, 0.5 A (ohmic load)1 transistor 30 V DC, 0.5 A (ohmic load) |
||
Analog inputs | 1 analog inputDifferential input Switchable between voltage (-10 … +10 V) and current (0/4 … 20 mA) using a DIP switch 10‑bit resolution Can be used as additional digital inputAnalog inputs are protected in a voltage range of ± 30 V and have a common-mode voltage in the ± 15 V range. |
||
Switching threshold: 0 → 1 | 4 V | ||
Switching threshold: 1 → 0 | 1.6 V | ||
Analog outputs | 1 analog outputNon-isolated output Switchable between voltage (0 … 10 V) and current (0/4 … 20 mA) using a parameter Voltage mode: 10 V, min. burden 10 kΩ Current mode: 20 mA, max. burden 500 ΩThe analog outputs have short-circuit protection |
||
PTC/KTY interface | 1 motor temperature sensor inputConnectable sensors PTC, Pt1000, KTY and bimetal, accuracy ±5 °C |
||
Voltage supply for the integrated Control Unit | 24 V DC via the Power Module or by connecting to an external 20.4 … 28.8 V DC power supplyTypical input current: 500 mA at 24 V DC | ||
Tool interfaces | |||
Memory card | Optional SINAMICS SD card |
||
Operator panels | Optional BOP‑2 Basic Operator Panel or Intelligent Operator Panel IOP‑2 or SINAMICS G120 Smart Access |
||
PC interface | USB |
SINAMICS G120C compact converter | |
---|---|
Open-loop/closed-loop control techniques | |
V/f linear/quadratic/parameterizable | ✓ |
V/f with flux current control (FCC) | ✓ |
V/f ECO; linear/quadratic | ✓ |
Vector control, sensorless | ✓ |
Vector control, with sensor | – |
Torque control, sensorless | – |
Torque control, with sensor | – |
Software functions | |
Setpoint input | ✓ |
Fixed frequencies | 16, parameterizable |
JOG | ✓ |
Digital motorized potentiometer (MOP) | ✓ |
Ramp smoothing | ✓ |
Extended ramp-function generator (with ramp smoothing Off3) | ✓ |
Positioning down ramp | – |
Slip compensation | ✓ |
Signal interconnection with BICO technology | ✓ |
Free function blocks (FFB)for logical and arithmetic operations | ✓ |
Switchable drive data sets (DDS) | ✓ (2) |
Switchable command data sets (CDS) | ✓ (2) |
Flying restart | ✓ |
Automatic restartafter line supply failure or operating fault (AR) | ✓ |
Technology controller (internal PID) | ✓ |
Energy consumption counter | ✓ |
Energy saving computer | ✓ |
Thermal motor protection | ✓ (I2t, sensor: PTC, Pt1000, KTY and bimetal) |
Thermal converter protection | ✓ |
Motor identification | ✓ |
Motor holding brake | ✓ |
Auto-ramping (Vdc_max controller) | ✓ |
Kinetic buffering (Vdc_min controller) | ✓ |
Braking functions | |
DC braking | ✓ |
Compound braking | ✓ |
Dynamic braking with integrated braking chopper | ✓ |
General technical specifications of the power electronics | |
---|---|
System operating voltage | 380 … 480 V 3 AC +10 % -20 % |
Line supply requirements Short-circuit power ratio RSC |
No restriction |
Input frequency | 47 … 63 Hz |
Output frequency | |
Control mode V/f | 0 … 550 Hz |
Control mode Vector | 0 … 240 Hz |
Pulse frequency | 4 kHz, 2 kHz for converters with a rated power ≥75 kW Higher pulse frequencies up to 16 kHz see derating data |
Power factor λ | |
Frame sizes FSAA to FSC | 0.7 … 0.85 |
Frame sizes FSD to FSF | >0.9 |
Offset factor cos φ | ≥0.95 |
Output voltage, max.as % of input voltage | 95 % |
Overload capability | |
Low overload LO Note: No reduction in base-load current IL for use of overload |
1.5 × base-load current IL (i. e. 150 % overload) for 3 s plus 1.1 × base-load current IL (i. e. 110 % overload) for 57 s within a cycle time of 300 s |
High overload HO Note: No reduction in base-load current IH for use of overload |
2 × base-load current IH (i. e. 200 % overload) for 3 s plus 1.5 × base-load current IH (i. e. 150 % overload) for 57 s within a cycle time of 300 s |
Cooling | Air cooling using an integrated fan |
Installation altitude | Up to 1000 m (3281 ft) above sea level without derating, > 1000 m (3281 ft) see derating characteristics |
Short Circuit Current Rating (SCCR) 1), max. acc. to UL | 100 kA See Recommended line-side overcurrent protection devices – the value depends on the fuses and circuit breakers used |
Protection functions | UndervoltageOvervoltageOverloadGround faultShort-circuitStall protectionMotor blocking protectionMotor overtemperatureConverter overtemperature |
1) Applies to industrial control panel installations to NEC Article 409 or UL 508A.
Line voltage 380 … 480 V 3 AC | SINAMICS G120C power electronics | ||||
---|---|---|---|---|---|
6SL3210-1KE11-8..2 | 6SL3210-1KE12-3..2 | 6SL3210-1KE13-2..2 | 6SL3210-1KE14-3..2 | ||
Output currentat 400 V 3 AC | |||||
Rated current Irated 1) | A | 1.8 | 2.3 | 3.2 | 4.3 |
Base-load current IL 2) | A | 1.7 | 2.2 | 3.1 | 4.1 |
Base-load current IH 3) | A | 1.3 | 1.7 | 2.2 | 3.1 |
Maximum current Imax | A | 2.6 | 3.4 | 4.4 | 6.2 |
Rated power | |||||
Based on IL | kW (hp) | 0.55 (0.75) | 0.75 (1) | 1.1 (1.5) | 1.5 (2) |
Based on IH | kW | 0.37 | 0.55 | 0.75 | 1.1 |
Rated pulse frequency | kHz | 4 | 4 | 4 | 4 |
Efficiency η | % | 97 | 97 | 97 | 97 |
Power loss 4)At rated current | kW | 0.034 | 0.039 | 0.049 | 0.062 |
Cooling air requirement | m3/s (ft3/s) | 0.005 (0.18) | 0.005 (0.18) | 0.005 (0.18) | 0.005 (0.18) |
Sound pressure level LpA (1 m) | dB | <49 | <49 | <49 | <49 |
Rated input current 5) | |||||
Based on IL | A | 2.3 | 2.9 | 4.1 | 5.5 |
Based on IH | A | 1.9 | 2.5 | 3.2 | 4.5 |
Length of cable to braking resistor, max. | m (ft) | 15 (49) | 15 (49) | 15 (49) | 15 (49) |
Line supply connectionU1/L1, V1/L2, W1/L3 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
Motor connectionU2, V2, W2 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
Connection for braking resistorR1, R2 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
PE connection | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | |
Motor cable length, max. 6) | |||||
Without filter, shielded/unshielded | m (ft) | 150/150 (492/492) | 150/150 (492/492) | 150/150 (492/492) | 150/150 (492/492) |
With integrated filter class A, shielded/unshielded | m (ft) | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) |
Dimensions | |||||
Width | mm (in) | 73 (2.87) | 73 (2.87) | 73 (2.87) | 73 (2.87) |
Height | mm (in) | 173 (6.81) | 173 (6.81) | 173 (6.81) | 173 (6.81) |
Depth | |||||
Without operator panel | mm (in) | 155 (6.10) (PN version: 178 (7.01)) | 155 (6.10) (PN version: 178 (7.01)) | 155 (6.10) (PN version: 178 (7.01)) | 155 (6.10) (PN version: 178 (7.01)) |
With BOP‑2/IOP‑2 | mm (in) | 166 (6.54) (PN version: 189 (7.44)) | 166 (6.54) (PN version: 189 (7.44)) | 166 (6.54) (PN version: 189 (7.44)) | 166 (6.54) (PN version: 189 (7.44)) |
Frame size | FSAA | FSAA | FSAA | FSAA | |
Weight, approx. | |||||
Without filter | kg (lb) | 1.1 (2.43) (PN version: 1.2 (2.65)) | 1.1 (2.43) (PN version: 1.2 (2.65)) | 1.1 (2.43) (PN version: 1.2 (2.65)) | 1.1 (2.43) (PN version: 1.2 (2.65)) |
With integrated filter class A | kg (lb) | 1.3 (2.87) (PN version: 1.4 (3.09)) | 1.3 (2.87) (PN version: 1.4 (3.09)) | 1.3 (2.87) (PN version: 1.4 (3.09)) | 1.3 (2.87) (PN version: 1.4 (3.09)) |
1) The rated output current Irated can be used up to 100 %; however, without overload.
2) The base-load current IL is based on the duty cycle for low overload (LO).
3) The base-load current IH is based on the duty cycle for high overload (HO).
4) Typical values. More information can be found on the Internet at https://support.industry.siemens.com/cs/document/94059311
5) The rated input currents are valid for an input voltage of 400 V 3 AC and a line impedance corresponding to uK = 1 % (without line reactor). The rated input current based on IL is stamped on the converter rating plate. In the particular application, the input current depends on the motor load and line impedance. The input current is reduced when using a line reactor.
6) The maximum motor cable lengths are valid for an input voltage of 400 V 3 AC and operation with a 4 kHz pulse frequency. When a converter with an integrated line filter class A is used to comply with the limits of EN 61800-3 Category C2 for line-conducted interference emission, the maximum permissible motor cable length is 25 m (82 ft) (shielded) as standard – and 50 m (164 ft) with low-capacitance CY cable (shielded).
Line voltage 380 … 480 V 3 AC | SINAMICS G120C power electronics | ||||
---|---|---|---|---|---|
6SL3210-1KE15-8..2 | 6SL3210-1KE17-5..1 | 6SL3210-1KE18-8..1 | 6SL3210-1KE21-3..1 | ||
Output currentat 400 V 3 AC | |||||
Rated current Irated 1) | A | 5.8 | 7.5 | 9 | 13 |
Base-load current IL 2) | A | 5.6 | 7.3 | 8.8 | 12.5 |
Base-load current IH 3) | A | 4.1 | 5.6 | 7.3 | 8.8 |
Maximum current Imax | A | 8.2 | 11.2 | 14.6 | 17.6 |
Rated power | |||||
Based on IL | kW (hp) | 2.2 (3) | 3 (4) | 4 (5) | 5.5 (7.5) |
Based on IH | kW | 1.5 | 2.2 | 3 | 4 |
Rated pulse frequency | kHz | 4 | 4 | 4 | 4 |
Efficiency η | % | 97 | 97 | 97 | 97 |
Power loss 4)At rated current | kW | 0.073 | 0.099 | 0.122 | 0.174 |
Cooling air requirement | m3/s (ft3/s) | 0.005 (0.18) | 0.005 (0.18) | 0.005 (0.18) | 0.009 (0.32) |
Sound pressure level LpA (1 m) | dB | <49 | <52 | <52 | <63 |
Rated input current 5) | |||||
Based on IL | A | 7.4 | 9.5 | 11.4 | 16.5 |
Based on IH | A | 6 | 8.2 | 10.6 | 12.8 |
Length of cable to braking resistor, max. | m (ft) | 15 (49) | 15 (49) | 15 (49) | 15 (49) |
Line supply connectionU1/L1, V1/L2, W1/L3 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
4 .. 6 (12 … 10 AWG) |
Motor connectionU2, V2, W2 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
4 … 6 (12 … 10 AWG) |
Connection for braking resistorR1, R2 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
1 … 2.5 (18 … 14 AWG) |
4 … 6 (12 … 10 AWG) |
PE connection | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | |
Motor cable length, max. 6) | |||||
Without filter, shielded/unshielded | m (ft) | 125 7)/150 (410 7)/492) | 150/150 (492/492) | 150/150 (492/492) | 150/150 (492/492) |
With integrated filter class A, shielded/unshielded | m (ft) | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) |
Dimensions | |||||
Width | mm (in) | 73 (2.87) | 73 (2.87) | 73 (2.87) | 100 (3.94) |
Height | mm (in) | 173 (6.81) | 196 (7.72) | 196 (7.72) | 196 (7.72) |
Depth | |||||
Without operator panel | mm (in) | 155 (6.10) (PN version: 178 (7.01)) | 203 (7.99) (PN version: 226 (8.90)) | 203 (7.99) (PN version: 226 (8.90)) | 203 (7.99) (PN version: 226 (8.90)) |
With BOP‑2/IOP‑2 | mm (in) | 166 (6.54) (PN version: 189 (7.44)) | 214 (8.43) (PN version: 237 (9.33)) | 214 (8.43) (PN version: 237 (9.33)) | 214 (8.43) (PN version: 237 (9.33)) |
Frame size | FSAA | FSA | FSA | FSB | |
Weight, approx. | |||||
Without filter | kg (lb) | 1.1 (2.43) (PN version: 1.2 (2.65)) | 1.7 (3.75) | 1.7 (3.75) | 2.3 (5.07) |
With integrated filter class A | kg (lb) | 1.3 (2.87) (PN version: 1.4 (3.09)) | 1.9 (4.19) | 1.9 (4.19) | 2.5 (5.51) |
1) The rated output current Irated can be used up to 100 %; however, without overload.
2) The base-load current IL is based on the duty cycle for low overload (LO).
3) The base-load current IH is based on the duty cycle for high overload (HO).
4) Typical values. More information can be found on the Internet at https://support.industry.siemens.com/cs/document/94059311
5) The rated input currents are valid for an input voltage of 400 V 3 AC and a line impedance corresponding to uK = 1 % (without line reactor). The rated input current based on IL is stamped on the converter rating plate. In the particular application, the input current depends on the motor load and line impedance. The input current is reduced when using a line reactor.
6) The maximum motor cable lengths are valid for an input voltage of 400 V 3 AC and operation with a 4 kHz pulse frequency. When a converter with an integrated line filter class A is used to comply with the limits of EN 61800‑3 Category C2 for line-conducted interference emissions, the maximum permissible motor cable length is 25 m (82 ft) (shielded) as standard – for frame sizes FSAA to FSB with low-capacitance CY cable (shielded) it is 50 m (164 ft).
7) With low-capacitance CY cable 150 m (492 ft) (shielded).
Line voltage 380 … 480 V 3 AC | SINAMICS G120C power electronics | ||||
---|---|---|---|---|---|
6SL3210-1KE21-7..1 | 6SL3210-1KE22-6..1 | 6SL3210-1KE23-2..1 | 6SL3210-1KE23-8..1 | ||
Output currentat 400 V 3 AC | |||||
Rated current Irated 1) | A | 17 | 26 | 32 | 38 |
Base-load current IL 2) | A | 16.5 | 25 | 31 | 37 |
Base-load current IH 3) | A | 12.5 | 16.5 | 25 | 31 |
Maximum current Imax | A | 25 | 33 | 50 | 62 |
Rated power | |||||
Based on IL | kW (hp) | 7.5 (10) | 11 (15) | 15 (20) | 18.5 (25) |
Based on IH | kW | 5.5 | 7.5 | 11 | 15 |
Rated pulse frequency | kHz | 4 | 4 | 4 | 4 |
Efficiency η | % | 97 | 97 | 97 | 97 |
Power loss 4)At rated current | kW | 0.236 | 0.301 | 0.373 | 0.45 |
Cooling air requirement | m3/s (ft3/s) | 0.009 (0.32) | 0.018 (0.64) | 0.018 (0.64) | 0.018 (0.64) |
Sound pressure level LpA (1 m) | dB | <63 | <66 | <66 | <66 |
Rated input current 5) | |||||
Based on IL | A | 21.5 | 33 | 40.6 | 48.2 |
Based on IH | A | 18.2 | 24.1 | 36.4 | 45.2 |
Length of cable to braking resistor, max. | m (ft) | 15 (49) | 15 (49) | 15 (49) | 15 (49) |
Line supply connectionU1/L1, V1/L2, W1/L3 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 4 … 6 (12 … 10 AWG) |
6 … 16 (10 … 5 AWG) |
10 … 16 (7 … 5 AWG) |
10 … 16 (7 … 5 AWG) |
Motor connectionU2, V2, W2 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 4 … 6 (12 … 10 AWG) |
6 … 16 (10 … 5 AWG) |
10 … 16 (7 … 5 AWG) |
10 … 16 (7 … 5 AWG) |
Connection for braking resistorR1, R2 | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | Plug-in screw terminals | |
Conductor cross-section | mm2 | 4 … 6 (12 … 10 AWG) |
6 … 16 (10 … 5 AWG) |
10 … 16 (7 … 5 AWG) |
10 … 16 (7 … 5 AWG) |
PE connection | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | |
Motor cable length, max. 6) | |||||
Without filter, shielded/unshielded | m (ft) | 150/150 (492/492) | 150/150 (492/492) | 150/150 (492/492) | 150/150 (492/492) |
With integrated filter class A, shielded/unshielded | m (ft) | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) | 50/100 (164/328) |
Dimensions | |||||
Width | mm (in) | 100 (3.94) | 140 (5.51) | 140 (5.51) | 140 (5.51) |
Height | mm (in) | 196 (7.72) | 295 (11.61) | 295 (11.61) | 295 (11.61) |
Depth | |||||
Without operator panel | mm (in) | 203 (7.99) (PN version: 226 (8.90)) | 203 (7.99) (PN version: 226 (8.90)) | 203 (7.99) (PN version: 226 (8.90)) | 203 (7.99) (PN version: 226 (8.90)) |
With BOP‑2/IOP‑2 | mm (in) | 214 (8.43) (PN version: 237 (9.33)) | 214 (8.43) (PN version: 237 (9.33)) | 214 (8.43) (PN version: 237 (9.33)) | 214 (8.43) (PN version: 237 (9.33)) |
Frame size | FSB | FSC | FSC | FSC | |
Weight, approx. | |||||
Without filter | kg (lb) | 2.3 (5.07) | 4.4 (9.70) | 4.4 (9.70) | 4.4 (9.70) |
With integrated filter class A | kg (lb) | 2.5 (5.51) | 4.7 (10.4) | 4.7 (10.4) | 4.7 (10.4) |
1) The rated output current Irated can be used up to 100 %; however, without overload.
2) The base-load current IL is based on the duty cycle for low overload (LO).
3) The base-load current IH is based on the duty cycle for high overload (HO).
4) Typical values. More information can be found on the Internet at https://support.industry.siemens.com/cs/document/94059311
5) The rated input currents are valid for an input voltage of 400 V 3 AC and a line impedance corresponding to uK = 1 % (without line reactor). The rated input current based on IL is stamped on the converter rating plate. In the particular application, the input current depends on the motor load and line impedance. The input current is reduced when using a line reactor.
6) The maximum motor cable lengths are valid for an input voltage of 400 V 3 AC and operation with a 4 kHz pulse frequency. When a converter with an integrated line filter class A is used to comply with the limits of EN 61800-3 Category C2 for line-conducted interference emission, the maximum permissible motor cable length is 25 m (82 ft) (shielded) as standard – with low-capacitance CY cable for frame size FSB 50 m (164 ft) (shielded), for FSC 100 m (328 ft) (shielded).
Line voltage 380 … 480 V 3 AC | SINAMICS G120C power electronics | ||||
---|---|---|---|---|---|
6SL3210-1KE24-4.F1 | 6SL3210-1KE26-0.F1 | 6SL3210-1KE27-0.F1 | 6SL3210-1KE28-4.F1 | ||
Output currentat 400 V 3 AC | |||||
Rated current Irated 1) | A | 43 | 58 | 68 | 82.5 |
Base-load current IL 2) | A | 43 | 58 | 68 | 82.5 |
Base-load current IH 3) | A | 37 | 43 | 58 | 68 |
Maximum current Imax | A | 74 | 87 | 116 | 136 |
Rated power | |||||
Based on IL | kW (hp) | 22 (25) | 30 (30) | 37 (40) | 45 (50) |
Based on IH | kW | 18.5 | 22 | 30 | 37 |
Rated pulse frequency | kHz | 4 | 4 | 4 | 4 |
Efficiency η | % | 98 | 98 | 98 | 98 |
Power loss 4)At rated current | kW | 0.65 | 0.933 | 1.032 | 1.304 |
Cooling air requirement | m3/s (ft3/s) | 0.055 (1.94) | 0.055 (1.94) | 0.055 (1.94) | 0.055 (1.94) |
Sound pressure level LpA (1 m) | dB | 71.6 | 71.6 | 71.6 | 71.6 |
Rated input current 5) | |||||
Based on IL | A | 41 | 53 | 64 | 76 |
Based on IH | A | 39 | 44 | 61 | 69 |
Length of cable to braking resistor, max. | m (ft) | 10 (32.8) | 10 (32.8) | 10 (32.8) | 10 (32.8) |
Line supply connectionU1/L1, V1/L2, W1/L3 | Screw terminals | Screw terminals | Screw terminals | Screw terminals | |
Conductor cross-section | mm2 | 10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
Motor connectionU2, V2, W2 | Screw terminals | Screw terminals | Screw terminals | Screw terminals | |
Conductor cross-section | mm2 | 10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
Connection for braking resistorR1, R2 | Screw terminals | Screw terminals | Screw terminals | Screw terminals | |
Conductor cross-section | mm2 | 10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
10 … 35 (20 … 10 AWG) |
PE connection | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | |
Motor cable length, max. 6) | |||||
Without filter, shielded/unshielded | m (ft) | 200/300 (656/984) | 200/300 (656/984) | 200/300 (656/984) | 200/300 (656/984) |
With integrated filter class A, shielded/unshielded | m (ft) | 200/300 (656/984) | 200/300 (656/984) | 200/300 (656/984) | 200/300 (656/984) |
Dimensions | |||||
Width | mm (in) | 200 (7.87) | 200 (7.87) | 200 (7.87) | 200 (7.87) |
Height | mm (in) | 472 (18.58) | 472 (18.58) | 472 (18.58) | 472 (18.58) |
Depth | |||||
Without operator panel | mm (in) | 237 (9.33) | 237 (9.33) | 237 (9.33) | 237 (9.33) |
With BOP‑2/IOP‑2 | mm (in) | 248 (9.76) | 248 (9.76) | 248 (9.76) | 248 (9.76) |
Frame size | FSD | FSD | FSD | FSD | |
Weight, approx. | |||||
Without filter | kg (lb) | 17 (37.5) | 17 (37.5) | 18 (39.7) | 18 (39.7) |
With integrated filter class A | kg (lb) | 19 (41.9) | 19 (41.9) | 20 (44.1) | 20 (44.1) |
1) The rated output current Irated can be used up to 100 %; however, without overload.
2) The base-load current IL is based on the duty cycle for low overload (LO).
3) The base-load current IH is based on the duty cycle for high overload (HO).
4) Typical values. More information can be found on the Internet at https://support.industry.siemens.com/cs/document/94059311
5) The rated input currents are valid for an input voltage of 400 V 3 AC and a line impedance corresponding to uK = 1 %. The rated input current based on IL is stamped on the converter rating plate. In the particular application, the input current depends on the motor load and line impedance.
6) The maximum motor cable lengths are valid for an input voltage of 400 V 3 AC and operation with a 4 kHz pulse frequency. When a converter with an integrated line filter class A is used to comply with the limits of EN 61800‑3 Category C2 for line-conducted interference emissions, the maximum permissible motor cable length is 150 m (492 ft) (shielded) as standard.
Line voltage 380 … 480 V 3 AC | SINAMICS G120C power electronics | |||||
---|---|---|---|---|---|---|
6SL3210-1KE31-1.F1 | 6SL3210-1KE31-4.F1 | 6SL3210-1KE31-7.F1 | 6SL3210-1KE32-1.F1 | 6SL3210-1KE32-4.F1 | ||
Output currentat 400 V 3 AC | ||||||
Rated current Irated 1) | A | 103 | 136 | 164 | 201 | 237 |
Base-load current IL 2) | A | 103 | 136 | 164 | 201 | 237 |
Base-load current IH 3) | A | 83 | 103 | 136 | 164 | 201 |
Maximum current Imax | A | 165 | 206 | 272 | 328 | 402 |
Rated power | ||||||
Based on IL | kW (hp) | 55 (60) | 75 (75) | 90 (100) | 110 (125) | 132 (150) |
Based on IH | kW | 45 | 55 | 75 | 90 | 110 |
Rated pulse frequency | kHz | 4 | 2 | 2 | 2 | 2 |
Efficiency η | % | 98 | 99 | 99 | 99 | 99 |
Power loss 4)At rated current | kW | 1.476 | 1.474 | 1.885 | 2.245 | 2.803 |
Cooling air requirement | m3/s (ft3/s) | 0.083 (2.93) | 0.153 (5.40) | 0.153 (5.40) | 0.153 (5.40) | 0.153 (5.40) |
Sound pressure level LpA (1 m) | dB | 70.6 | 67.7 | 67.7 | 67.7 | 67.7 |
Rated input current 5) | ||||||
Based on IL | A | 96 | 134 | 156 | 187 | 221 |
Based on IH | A | 85 | 112 | 144 | 169 | 207 |
Length of cable to braking resistor, max. | m (ft) | 10 (32.8) | 10 (32.8) | 10 (32.8) | 10 (32.8) | 10 (32.8) |
Line supply connectionU1/L1, V1/L2, W1/L3 | Screw terminals | Screw terminals | Screw terminals | Screw terminals | Screw terminals | |
Conductor cross-section | mm2 | 25 … 70 (6 … 3/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
Motor connectionU2, V2, W2 | Screw terminals | Screw terminals | Screw terminals | Screw terminals | Screw terminals | |
Conductor cross-section | mm2 | 25 … 70 (6 … 3/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
Connection for braking resistorR1, R2 | Screw terminals | Screw terminals | Screw terminals | Screw terminals | Screw terminals | |
Conductor cross-section | mm2 | 25 … 70 (6 … 3/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
35 … 2×120 (1 … 2×4/0 AWG) |
PE connection | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | On housing with M4 screw | |
Motor cable length, max. 6) | ||||||
Without filter, shielded/unshielded | m (ft) | 200/300 (656/984) | 300/450 (984/1476) | 300/450 (984/1476) | 300/450 (984/1476) | 300/450 (984/1476) |
With integrated filter class A, shielded/unshielded | m (ft) | 200/300 (656/984) | 300/450 (984/1476) | 300/450 (984/1476) | 300/450 (984/1476) | 300/450 (984/1476) |
Dimensions | ||||||
Width | mm (in) | 275 (10.83) | 305 (12.01) | 305 (12.01) | 305 (12.01) | 305 (12.01) |
Height | mm (in) | 551 (21.69) | 708 (27.87) | 708 (27.87) | 708 (27.87) | 708 (27.87) |
Depth | ||||||
Without operator panel | mm (in) | 237 (9.33) | 357 (14.06) | 357 (14.06) | 357 (14.06) | 357 (14.06) |
With BOP‑2/IOP‑2 | mm (in) | 248 (9.76) | 368 (14.49) | 368 (14.49) | 368 (14.49) | 368 (14.49) |
Frame size | FSE | FSF | FSF | FSF | FSF | |
Weight, approx. | ||||||
Without filter | kg (lb) | 27 (59.5) | 59 (130) | 59 (130) | 64 (141) | 64 (141) |
With integrated filter class A | kg (lb) | 29 (63.9) | 62 (137) | 62 (137) | 66 (146) | 66 (146) |
1) The rated output current Irated can be used up to 100 %; however, without overload.
2) The base-load current IL is based on the duty cycle for low overload (LO).
3) The base-load current IH is based on the duty cycle for high overload (HO).
4) Typical values. More information can be found on the Internet at https://support.industry.siemens.com/cs/document/94059311
5) The rated input currents are valid for an input voltage of 400 V 3 AC and a line impedance corresponding to uK = 1 %. The rated input current based on IL is stamped on the converter rating plate. In the particular application, the input current depends on the motor load and line impedance.
6) The maximum motor cable lengths are valid for an input voltage of 400 V 3 AC and operation with a 4 kHz pulse frequency. When a converter with an integrated line filter class A is used to comply with the limits of EN 61800‑3 Category C2 for line-conducted interference emissions, the maximum permissible motor cable length is 150 m (492 ft) (shielded) as standard.
Pulse frequency
Rated powerbased on low overload (LO) | Rated output current in Afor a pulse frequency of | ||||||||
---|---|---|---|---|---|---|---|---|---|
kW | hp | 2 kHz | 4 kHz | 6 kHz | 8 kHz | 10 kHz | 12 kHz | 14 kHz | 16 kHz |
0.55 | 0.75 | 1.7 | 1.7 | 1.4 | 1.2 | 1 | 0.9 | 0.8 | 0.7 |
0.75 | 1 | 2.2 | 2.2 | 1.9 | 1.5 | 1.3 | 1.1 | 1 | 0.9 |
1.1 | 1.5 | 3.1 | 3.1 | 2.6 | 2.2 | 1.9 | 1.6 | 1.4 | 1.2 |
1.5 | 2 | 4.1 | 4.1 | 3.5 | 2.9 | 2.5 | 2.1 | 1.8 | 1.6 |
2.2 | 3 | 5.6 | 5.6 | 4.8 | 3.9 | 3.4 | 2.8 | 2.5 | 2.2 |
3 | 4 | 7.3 | 7.3 | 6.2 | 5.1 | 4.4 | 3.7 | 3.3 | 2.9 |
4 | 5 | 8.8 | 8.8 | 7.5 | 6.2 | 5.3 | 4.4 | 4 | 3.5 |
5.5 | 7.5 | 12.5 | 12.5 | 10.6 | 8.8 | 7.5 | 6.3 | 5.6 | 5 |
7.5 | 10 | 16.5 | 16.5 | 14 | 11.6 | 9.9 | 8.3 | 7.4 | 6.6 |
11 | 15 | 25 | 25 | 21.3 | 17.5 | 15 | 12.5 | 11.3 | 10 |
15 | 20 | 31 | 31 | 26.4 | 21.7 | 18.6 | 15.5 | 14 | 12.4 |
18.5 | 25 | 37 | 37 | 31.5 | 25.9 | 22.2 | 18.5 | 16.7 | 14.8 |
22 | 25 | 43 | 43 | 36.6 | 30.1 | 25.8 | 21.5 | 19.4 | 17.2 |
30 | 30 | 58 | 58 | 49.3 | 40.6 | 34.8 | 29 | 26.1 | 23.2 |
37 | 40 | 68 | 68 | 57.8 | 47.6 | 40.8 | 34 | 30.6 | 27.2 |
45 | 50 | 82.5 | 82.5 | 70.1 | 57.8 | 49.5 | 41.3 | 37.1 | 33 |
55 | 60 | 103 | 103 | 87.6 | 72.1 | – | – | – | – |
75 | 75 | 136 | 136 | 115.6 | 95.2 | – | – | – | – |
90 | 100 | 164 | 164 | 139.4 | 114.8 | – | – | – | – |
110 | 125 | 201 | 140.7 | – | – | – | – | – | – |
132 | 150 | 237 | 165.9 | – | – | – | – | – | – |
The permissible motor cable length depends on the cable type and the pulse frequency.
Ambient temperature
Permissible output current as a function of the ambient temperature, frame sizes FSAA to FSC
Permissible output current as a function of the ambient temperature, frame sizes FSD to FSF
For the frame sizes FSA to FSC, the PROFINET version can be butt-mounted at temperatures up to 55 °C.
The frame sizes FSAA and FSD to FSF can be butt-mounted at temperatures up to 50 °C.
Installation altitude
Permissible line supplies as a function of the installation altitude
The connected motors, power elements and components must be considered separately.
Permissible output current as a function of the installation altitude, frame sizes FSAA to FSF at 40 °C for low overload (LO)
Current/power derating as a function of the line voltage
The SINAMICS G120C compact converter supplies a constant power in the line voltage range 380 V to 480 V 3 AC. The constant power results in current derating as a function of the line voltage.
Current derating as a function of the line voltage
More information on the derating data of the SINAMICS G120C compact converter can be found in the operating instructions on the Internet at:
http://www.siemens.com/sinamics-g120c/documentation
SINAMICS G120C, frame size FSAA
Mounted with 2 M4 bolts, 2 M4 nuts, 2 M4 washers.
When the shield plate is mounted, the drilling pattern is compatible with frame size FSA.
Ventilation clearance required at the top: 80 mm (3.15 inches).
Ventilation clearance required at the bottom: 100 mm (3.94 inches).
Ventilation clearance required at the side: 0 mm (0 inches).
When the BOP‑2/IOP‑2 is plugged on, the overall depth increases by 11 mm (0.43 inches).
All dimensions in mm (values in brackets are in inches).
SINAMICS G120C, frame size FSA
Mounted with 3 M4 bolts, 3 M4 nuts, 3 M4 washers.
Ventilation clearance required at the top: 80 mm (3.15 inches).
Ventilation clearance required at the bottom: 100 mm (3.94 inches).
Ventilation clearance required at the side: 0 mm (0 inches).
When the BOP‑2/IOP‑2 is plugged on, the overall depth increases by 11 mm (0.43 inches).
All dimensions in mm (values in brackets are in inches).
SINAMICS G120C, frame size FSB
Mounted with 4 M4 bolts, 4 M4 nuts, 4 M4 washers.
Ventilation clearance required at the top: 80 mm (3.15 inches).
Ventilation clearance required at the bottom: 100 mm (3.94 inches).
Ventilation clearance required at the side: 0 mm (0 inches).
When the BOP‑2/IOP‑2 is plugged on, the overall depth increases by 11 mm (0.43 inches).
All dimensions in mm (values in brackets are in inches).
SINAMICS G120C, frame size FSC
Mounted with 4 M5 bolts, 4 M5 nuts, 4 M5 washers.
Ventilation clearance required at the top: 80 mm (3.15 inches).
Ventilation clearance required at the bottom: 100 mm (3.94 inches).
Ventilation clearance required at the side: 0 mm (0 inches).
When the BOP‑2/IOP‑2 is plugged on, the overall depth increases by 11 mm (0.43 inches).
All dimensions in mm (values in brackets are in inches).
SINAMICS G120C frame sizes FSD to FSF
SINAMICS G120C | Dimensionsin mm (inches) | Drilling dimensionsin mm (inches) | Cooling clearancein mm (inches) | Mounting | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Frame size | a (width) |
b (height) |
c (depth) |
d | e | f | top | bottom | front | With bolts |
FSD | 200 (7.87) |
472 (18.58) |
237 (9.33) |
170 (6.69) |
430 (16.93) |
15 (0.59) |
300 (11.81) |
350 (13.78) |
100 (3.94) |
4 × M5 |
FSE | 275 (10.83) |
551 (21.69) |
237 (9.33) |
230 (9.06) |
509 (20.04) |
11 (0.43) |
300 (11.81) |
350 (13.78) |
100 (3.94) |
4 x M6 |
FSF | 305 (12.01) |
708 (27.87) |
357 (14.06) |
270 (10.63) |
680 (26.77) |
13 (0.51) |
300 (11.81) |
350 (13.78) |
100 (3.94) |
4 × M8 |
When the BOP‑2/IOP‑2 is plugged on, the overall depth increases by 11 mm (0.43 inches).
Did you know, we are an entrusted Siemens approved partner?
All goods supplied by us are sold upon the following conditions. This agreement applies as between you, the User of this Web Site or Purchaser and Parmley Graham Limited the owner(s) of this Web Site. Your agreement to comply with and be bound by these Terms and Conditions is deemed to occur upon your first use of the Web Site. If you do not agree to be bound by these Terms and Conditions, you should stop using the Web Site immediately. No part of this Web Site is intended to constitute a contractual offer capable of acceptance. The Purchaser's order constitutes a contractual offer and our acceptance of that offer is deemed to occur upon our sending an email to the Purchaser indicating that the order has been accepted for processing. Unless expressly agreed by us in writing, any other terms or conditions, including any which may be contained in your orders, are excluded. Unless expressly incorporated in our quotation or tender, all descriptions, illustrations, drawings, dimensions, weights, measures, specifications, standards of performance or other descriptive matter of precontractual statement are approximate only and shall not form part of the contract.
These Terms and Conditions apply to business customers only.
If Goods are being ordered from outside Parmley Graham Limited's country of residence, import duties and taxes may be incurred once the Goods reach their destination. Parmley Graham Limited is not responsible for these charges and we undertake to make no calculations or estimates in this regard. If a Purchaser is buying internationally, they are advised to contact their local customs authorities for further details on costs and procedures. The Purchaser of the Goods will also be the importer of record and as such should ensure that the purchase is in full compliance with the laws of the country into which the Goods are being imported. Please be aware that Goods may be inspected on arrival at port for customs purposes and Parmley Graham Limited gives no guarantee that the packaging of the Goods will be free of signs of tampering.
Any such order placed via our website will be considered to be an “Invitation to Treat” and any payment made as a refundable deposit, until such time as the order is reviewed and confirmed. During our contract review we are legally obliged to take into account any Export Restrictions, Sanctions or Embargoes in force at the time from the UK Government, European Union or UN ( US export regulations may also apply to some products) and such restrictions may prevent supply of the goods. In some cases we may require End-User details and/or Dual Use WMD statements prior to supply. Should an Export License be required, or additional documentation including Certificates of Origin, it may be necessary to apply additional costs.
In order to purchase Goods on this Web Site and to use the other facilities Users are required to create an Account which will contain certain personal details and Payment Information which may vary based upon a User's use of the Web Site as we may not require payment information until a purchase is to be made. By continuing to use this Web Site you represent and warrant that:
All information you submit is accurate and truthful;
If you are buying on behalf of your employers, you have the authority to submit Payment Information where any such authority is required; and
You will keep this information accurate and up-to-date. Your creation of an Account is further affirmation of your representation and warranty.
It is recommended that you do not share your Account details, particularly your username and password. Parmley Graham Limited accepts no liability for any losses or damages incurred as a result of your Account details being shared by you. If you use a shared computer, it is recommended that you do not save your Account details in your internet browser. If you have reason to believe that your Account details have been obtained by another without consent, you should contact Parmley Graham Limited immediately to suspend your Account and cancel any unauthorised purchases that may be pending. Please be aware that purchases can only be cancelled until they are dispatched. In the event that an unauthorised purchase is dispatched prior to your notifying us of the unauthorised nature of the purchase, Parmley Graham Limited accepts no liability or responsibility and you should make contact with the Carrier detailed in the Purchase Information.
All goods are sold subject to the prices ruling at the date of despatch.
The price of the Goods shall be subject to the addition of the applicable delivery prices as indicated on the Web Site, Value Added Tax and other applicable taxes and the cost of any special packing required by the Customer.
A small order charge may be applied to orders less than £25 (ex VAT).
Payment must be made by the 28th day of the month subsequent to the month following delivery on a "Strictly Net" basis. We shall be entitled to charge interest on overdue accounts at the rate of 1.5% per month. (b) Where the contract is to be or may be fulfilled in separate installments deliveries or parts, payment for each such installment, delivery or part shall be made as if the same constituted a separate contract.
The risk in all goods passes to you when they first enter the premises stipulated on the order. We reserve the right to choose the method of transport, to charge for deliveries, and charge you with manufacturers' carriage charges for special items.
The Company may deliver the Goods in instalments and invoice the Customer as if each instalment comprised a separate Contract upon the terms of these Conditions.
Notification of any shortage or damage must be received at our branch within seven days after the date of delivery; otherwise no claim will be entertained. Written notice of any non delivery must be received at our branch within seven days after the date of invoice. Time is of the essence of this clause. Our liability in respect of any claim accepted under this clause is limited to making up the shortage or replacing any goods proven to have been damaged or lost in transit to the point of delivery, and we accept no liability for any loss or damage suffered by you whether direct or consequential and howsoever arising.
Any delivery dates quoted by the Company are approximate only and will not form part of the contract. Stock indications are provided on the Web Site; however these may not take into account sales that have taken place during your visit to the web site. If the customer fails for whatever reason to take delivery of the goods on the due date the Company will be entitled to store the goods and then risk in the goods will pass to the customer, delivery will be deemed to have taken place and the customer will pay all costs and expenses including storage and insurance charges arising from its failure.
Notwithstanding delivery, all goods supplied by us will remain our absolute property until you pay in full for them and for all other goods previously supplied by us. You will store the goods in such a way that they are readily identifiable as our property, but you may, as trustees for us, sell them to a third party in the normal course of your business. Upon any sale by you of the goods (either alone or with other items) all rights which you have against the buyer shall automatically vest in us. We shall be entitled immediately after giving notice of our intention to repossess, to enter upon any premises with such transport as may be necessary and repossess any goods to which we have title under this clause.
It is your responsibility to determine that the goods are sufficient and suitable for the purpose to which they are to be put. We cannot accept any responsibility either in respect of the installation of any goods or as to the ultimate performance of any product in which the goods may be installed. We shall in no way be liable for any direct or consequential damage, loss or expense arising from any defect or inefficiency caused by the manner in which the goods are used.
All goods supplied by us are manufactured by others. Accordingly, we shall pass on to you the benefit of the warranty, if any, given by the manufacturer of the goods. Our liability under this clause shall be in lieu of any warranty or condition implied by law as to the quality or fitness for any particular purpose of the goods, and we shall not be under any liability, whether in contract, tort or otherwise, in respect of any defects in goods delivered or for any injury, damage or loss resulting from such defects or from anything done or omitted in connection with the goods or from any work done in connection therewith.
In no circumstances may goods supplied against a firm order be returned without our prior written consent and the receipt of your advice note stating the reason for return and date and number of our invoice. All goods returned must be securely packed and consigned carriage paid. In all cases we reserve the right to make a handling charge, and the issue of our goods received note will not bind us to issue any credit in respect of the goods.
We may, without prejudice to our other rights and remedies determine the contract or any unfulfilled part of it or withhold further deliveries or make partial deliveries if: (a) You fail to make payment on the due date under this or any other contract between us. (b) You purport to cancel or suspend, or commit any breach of this or any other contract between us. (c) You become insolvent, or make any composition with your creditors or have a receiver appointed of all or any part of your undertaking or assets or go into liquidation (save for the purposes of amalgamation or reconstruction) and we shall be entitled to recover from you all our loss including any loss of profit or loss on resale.
Any failure by us to enforce any of all these Conditions shall not be construed as a waiver of any of our rights hereunder.
The information contained in this website is for general information purposes only. The information is provided by Parmley Graham Limited and whilst we endeavour to keep the information up-to-date and correct, we make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such information is therefore strictly at your own risk.
In no event will we be liable for any loss or damage including without limitation, indirect or consequential loss or damage, or any loss or damage whatsoever arising from loss of data or profits arising out of or in connection with the use of this website
Every effort is made to keep the website up and running smoothly. However, Parmley Graham Limited takes no responsibility for and will not be liable for the website being temporarily unavailable due to technical issues beyond our control.
Data controller: Parmley Graham Limited,
South Shore Road, Gateshead, Tyne and Wear, NE8 3AE
Parmley Graham Limited collects and processes your personal data when you interact with us. For the purposes of this Privacy Policy, references to “we”, “us” or “the organisation” shall refer to Parmley Graham Limited. The organisation is the data controller of your personal data and is responsible for complying with data protection laws. The organisation is committed to being transparent about how it collects and uses that data and to meeting its data protection obligations.
This notice applies to all suppliers, customers and other parties who utilise the services of Parmley Graham Limited.
By providing your personal data, you acknowledge that we may use it only in the ways set out in this Privacy Policy.
From time to time we may need to make changes to this Privacy Policy, for example as the result of government regulation, new technologies, or other developments in data protection laws or privacy generally and will provide you with a new privacy notice when we make substantial updates.
Our privacy principles
When we collect and use your personal data, we ensure we look after it properly and use it in accordance with our privacy principles below whereby the personal information we hold about you must be:
· processed fairly and lawfully and in a transparent way;
· obtained only for specific, lawful purposes;
· adequate, relevant and not excessive;
· accurate and kept up to date;
· not held for any longer than necessary;
· processed in accordance with the rights of data subjects;
· protected in appropriate ways;
· not be transferred outside the European Economic Area (EEA), unless where necessary and that country or territory also ensures an adequate level of protection.
What personal data do we collect?
We collect and process a range of data about you. This may include:
· contact details such as name, email address, postal address and telephone number;
· financial information and information about the nature of your business, such as bank details, credit card details and information obtained as a result of our credit checks;
· details of your interactions with us through our branches or online;
· information about the nature of your business and commercial assets;
· your image may be recorded on CCTV when you visit a Parmley Graham site;
· information obtained through our use of cookies. You can find out more about this in our cookies policy; and
· your marketing preferences.
How do we collect your personal data?
We collect, store and process personal data directly from you:
· via enquiry;
· when you create an account with us;
· when you purchase any of our products or services;
· through quotes;
· via our telephone calls with you;
· via emails;
· when you provide your details to us either online or offline;
· when you engage with us on social media;
How do we use your personal data?
We mainly use your personal data to provide you with goods and services. There are a number of other reasons we use your personal data, as explained in the list below.
In specific situations we require your data to pursue our legitimate interests in a way which might reasonably be expected as part of running our business, whilst ensuring that such business needs do not interfere with your rights and freedoms and do not cause you any harm. Where we list legitimate interests as a reason, we also describe below what we believe these legitimate interests are.
In specific situations, we can collect and process your data with your consent. We will usually only ask for your consent when providing marketing information to you, including information about other products and services. This will be made clear when you provide your personal information. If we ask for your consent we will explain why it is necessary.
What we use your personal data for |
Our reasons (legal basis) |
Explanation of our legitimate interests |
Set up your customer account |
Legitimate interest |
Process efficiency in dealing with such activity |
Provide you with quotes |
Legitimate interest |
Process efficiency in dealing with such activity |
Process your order, to supply you with goods and services |
Contractual obligation |
Fulfil the contract |
Notify you of your order status |
Legitimate interest |
Process efficiency in dealing with such activity |
Manage your account |
Legitimate interest |
Maintaining our business records |
Detect, investigate and report financial crime (eg Fraud) |
Legal compliance |
NA |
Undertake marketing communication, to inform you about other products and services |
Legitimate interest |
To keep subscribed customers up to date with information on related services and products. |
The use of CCTV to record images for security. |
Legitimate interest |
To protect our customers, premises, assets and employees from crime |
Who has access to the data?
Your information may be shared internally within the organisation, including with the Directors, members of the HQ finance team, IT staff and branch employees if access to the data is necessary for performance of their roles.
Also, we may sometimes share your data with trusted third parties that process the data on our behalf. We share only the personal information they need to perform their specific services and they may only use your data for the reasons we’ve described.
We work closely with the third party data processors to ensure your privacy is respected and protected at all times.
How do we protect the data?
The organisation takes the security of your data seriously. We have internal policies and controls in place to try to ensure that your data is not lost, accidentally destroyed, misused or disclosed, and is not accessed except by its employees in the performance of their duties.
We secure access to our systems and access to your personal data is password protected.
We regularly monitor our system for possible vulnerabilities and attacks, and we carry out penetration testing to identify ways to further strengthen security.
We work closely with the third party data processors to ensure your privacy is respected and protected at all times.
For how long do we keep the data?
We will only retain your personal data for as long as is necessary to fulfil the purposes for which it is collected.
When assessing what retention period is appropriate for your personal data, we take into consideration:
· the requirements of our business and the services provided;
· any statutory or legal obligations;
· the purposes for which we originally collected the personal data;
· the lawful grounds on which we based our processing;
· the types of personal data we have collected;
· the amount and categories of your personal data; and
· whether the purpose of the processing could reasonably be fulfilled by other means.
Your duty to inform us of changes
It is important that the personal information we hold about you is accurate and current. Please keep us informed if your personal information changes during your working relationship with us.
Your rights / contacting the regulator
As a data subject, you have the following rights in relation to our use of your personal data:
- The right to access your personal data
You are entitled to a copy of the personal data we hold about you and certain details of how we use it
- The right to rectification
We take reasonable steps to ensure that the personal information we hold about you is accurate and complete. However, if you do not believe this is the case, please contact us by using the details shown in your documentation and you can ask us to update or amend it.
- The right to erasure
In certain circumstances, you have the right to ask us to erase your personal information, for example where the personal information we collected is no longer necessary for the original purpose or where you withdraw your consent. However, this will need to be balanced against other factors, for example according to the type of personal information we hold about you and why we have collected it, there may be some legal and regulatory obligations which mean we cannot comply with your request.
- The right to restriction of processing
In certain circumstances, you are entitled to ask us to stop using your personal information, for example where you think that the personal information we hold about you may be inaccurate or where you think that we no longer need to process your personal information.
- The right to data portability
In certain circumstances, you have the right to ask that we transfer any personal information that you have provided to us to another third party of your choice. Once transferred, the other party will be responsible for looking after your personal information.
- The right to object to direct marketing
You can ask us to stop sending you marketing messages at any time. Please see the Marketing section at the end of this page for more information.
- The right not to be subject to automated decision-making
We do not use automated decision-making
- The right to withdraw consent
For certain uses of your personal information, we will ask for your consent. Where we do this, you have the right to withdraw your consent to further use of your personal information.
If you would like to exercise any of these rights, please contact email: privacy@parmley-graham.co.uk, address: Parmley Graham Ltd, South Shore Road, Gateshead, Tyne and Wear, NE8 3AE.
If we choose not to action your request we will explain to you the reasons for our refusal.
If you feel that your data has not been handled correctly, or you are unhappy with our response to any requests you have made to us regarding the use of your personal data, you have the right to lodge a complaint with the Information Commissioner’s Office.
You can contact them by calling 0303 123 1113.
Or go online to https://ico.org.uk/make-a-complaint/ (opens in a new window; please note we can't be responsible for the content of external websites)
If you are based outside the UK, you have the right to lodge your complaint with the relevant data protection regulator in your country of residence.
Marketing
We are committed to only sending you marketing communications that you have clearly expressed an interest in receiving. If you wish to unsubscribe from emails sent by us, you may do so at any time by following the unsubscribe instructions that appear in all emails or by sending an email, from the email address you wish to have unsubscribed, to unsubscribe@parmley-graham.co.uk.
Date of last review: 19/05/2023
