SINAMICS G120P - Pump & Fan

SINAMICS G120P - Pump & Fan

Overview

Easy handling, productivity and energy efficiency – Siemens offers an answer to these trends with the SINAMICS G120P series. SINAMICS G120P is an innovative and user-friendly converter series that has been specifically optimized for pump, fan and compressor applications in the industrial environment, but also for tasks in building automation.

SINAMICS G120P offers efficient drive solutions for a wide range of applications. With their easy handling, the drives support the user not only in optimizing existing frequency-controlled drives, but also in converting fixed-speed drives and in retrofitting.

The SINAMICS G120P converter series features advanced hardware and software functions that make a substantial contribution towards saving energy and thus make more careful use of our natural resources.

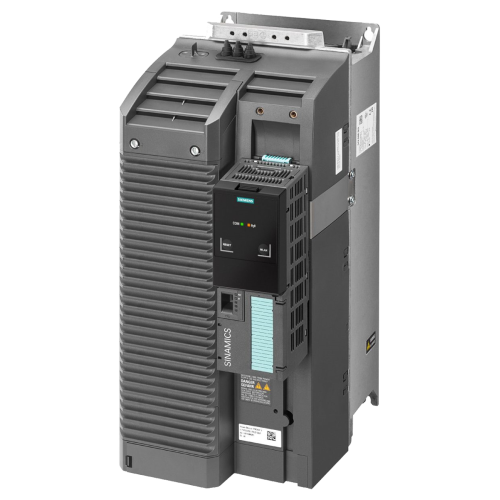

SINAMICS G120P in degree of protection IP20, PM230 Power Module, frame size FSB

SINAMICS G120P in degree of protection IP20, PM240P-2 Power Module, frame size FSD

SINAMICS G120P in degree of protection IP20, PM330 Power Module, frame size GX

SINAMICS G120P in degree of protection IP20, PM230 Power Module, frame size FSC Push Through (with Control Unit and BOP‑2 operator panel)

SINAMICS G120P in degree of protection IP55, PM230 Power Module, frame size FSB

SINAMICS G120P Cabinet converter cabinet units, versions A and C

User-friendliness

A high degree of user-friendliness is one of the main characteristics of the SINAMICS G120P:

  • Operator panel with color display and extensive diagnostics functions (IOP‑2)
  • Simple application-specific commissioning wizard “on board” the IOP‑2 (Intelligent Operator Panel)
  • Plain text scripts for integration in the STARTER commissioning tool for more demanding applications
  • SINAMICS SD card for storing parameter settings, cloning and local commissioning

Guided operation using wizards

SINAMICS G120P offers two basic options for guided parameterization/setting in a target application:

Commissioning simple applications
using application wizards optionally available in the IOP‑2 operator panel 1)

The following wizards are available:

  • Basic commissioning
  • Pump with/without PID control
  • Fan with/without PID control
  • Compressor with/without PID control
  • PID setting
  • Boost setting

An appropriate connection diagram for the standard wiring can be found in the documentation of the IOP‑2 operator panel.

Commissioning of more demanding applications
using plain text scripts through solution-based dialog prompting in the STARTER commissioning tool

The wizards support setpoint input for process values and setpoint exchanges using timers. They also allow easy integration of technological functions, such as cascade connection or hibernation mode. The connection diagrams for standard wiring that are required for the wizards are also supplied.

The following wizards are available:

  • Fan for exhaust air with closed-loop control of pressure/air quality
  • Fan for cooling tower with closed-loop control of cooling water temperature
  • Fan for stairwell with closed-loop control of pressure and essential service mode
  • Fan for tunnel/parking garage with closed-loop control of air quality and essential service mode
  • Fan for supply air with closed-loop control of pressure/temperature/air quality/flowrate
  • Pumps with closed-loop control of pressure
  • Pumps with closed-loop control of level
  • Pumps for cooling circuits with closed-loop control of temperature
  • Compressor with closed-loop control of pressure

1) More information is available on the Internet at
https://support.industry.siemens.com/cs/document/67273266

Benefits

Energy efficiency

SINAMICS G120P increases the efficiency and minimizes energy consumption in the complete process chain. The converter has integrated hardware as well as software functions as standard. The main features are:

  • PM230 Power Modules up to 90 kW: Extremely high active power component of apparent power thanks to efficient converter topology. For the same drive power, the converter requires a lower line current than comparable converters
  • Flux reduction through automatic adaptation of the motor current to the prevailing load conditions with closed-loop control modes U/f (ECO) and vector without sensor (SLVC) and savings of up to 5 % under partial load conditions
  • Hibernation mode dependent on setpoints in the process
  • Automatic switchover to line operation is possible at rated speed (bypass mode)

Optimum energy management through innovative technology

Optimized converter topology for PM230 Power Modules

  • Compliance with limits for line harmonic distortion in accordance with EN 61000‑3‑12 (RSCE > 250) without a line reactor
  • Reduced apparent power as a result of high power factor λ = 0.9
  • Smaller cable cross-sections can be used because mains power consumption is reduced

Flux reduction

  • Energy-saving capability through automatic adaptation of the magnetic flux in the motor to prevailing load conditions (lower motor losses under partial load conditions)

Hibernation mode

  • Energy-saving capability: The drive is started/stopped in line with the currently applicable setpoints, thereby avoiding excessive mechanical loads

High efficiency

  • η ≥ 98 % with PM330 Power Module
  • η > 97 % with PM240P-2 Power Module
  • η ≤ 97 % with PM230 Power Module

Straightforward, application-specific commissioning and operation using operator panel

  • Local commissioning without specialized knowledge of converters using application-specific wizards
  • Unique: SINAMICS SD memory card for pre-parameterization and cloning of converter data sets
  • Data backup for easy replacement
  • USB port integrated on the CU230P‑2 Control Unit for commissioning and easy diagnostics using the STARTER commissioning tool
  • Commissioning/diagnostics and controlling of converters

Flexible deployment of integrated functions

  • PLC functions for local control tasks
    Flexible use of integrated function blocks → No need for additional, external components
  • 4 integrated PID controllers
    Distributed closed-loop control for motor-independent process control without higher-level controller (PLC)
  • 3 freely programmable digital timer switches
    Control for freely selectable daily and weekly programs

Flexible deployment across a wide range of applications

  • Isolated digital inputs with separate potential group
  • Isolated analog inputs
    • Potential transfer avoided
    • EMC-compliant design without the need for additional components in line with process industry requirements
  • Pt1000/LG-Ni1000/DIN-Ni1000 temperature sensor interface
    • Direct connection of temperature sensors without external interface unit
  • 230 V AC relay
    • Direct control for auxiliary equipment, e.g. reactor or valve actuators
  • Safety functions
    • PM230 Power Modules, frame sizes FSA to FSC: In conjunction with the CU240E-2 Control Unit 1) Control of the STO safety function acc. to SIL 2
    • PM240P-2 Power Modules: Terminals for controlling STO and SS1 safety functions acc. to SIL 3
    • PM330 Power Modules: Terminals for controlling STO and SS1 safety functions 2) acc. to SIL 2 and SIL 3
  • Terminal strip X9 at PM330 Power Module
    • Input for external 24 V DC supply
    • Input for external alarm/fault
    • Input for EMERGENCY OFF/EMERGENCY STOP
    • Output for 24 V DC
    • Control of the main contactor
    • Feedback message “DC link charged”

1) More information on the CU240E‑2 Control Unit is available in Catalog D 31.1, Chapter SINAMICS G120.

2) The safety functions are only available as from function release FS 04 of the PM330 Power Modules.

Flexible, modular system for challenging environmental conditions

  • Operation possible at ambient temperatures of up to +60 °C (140 °F)
  • Modular design of power and control electronics
    • Power range can be easily extended
    • Fast exchange of power units
  • Removable operator panel for built-in and wall-mounted units
    • Protection against unauthorized access
    • Degree of protection IP55/UL Type 12 with IOP‑2, BOP‑2 operator panel or blanking cover
    • Degree of protection IP20 with IOP‑2 or BOP‑2 operator panel or blanking cover
    • Degree of protection IP20 Push Through variant with IOP‑2 or BOP‑2 operator panel or blanking cover
  • Replacement of individual components without the need for reinstallation

Application

The specialist for pump, fan and compressor applications

SINAMICS G120P is ideally suited to pump applications (centrifugal pumps, oscillating and rotating pumps), fan applications (axial and radial fans) and compressor applications (cooling compressors, air and gas compressors). They are deployed in industrial environments, in the process industry and water industry and in building automation.

SINAMICS G120P is ideally suited for the following applications:

  • Circulating pumps for heating and cooling systems
  • Pumps for pressure boosting stations
  • Level control
  • Fans in cooling towers
  • Fans for air intake and discharge
  • Fans for tunnels and multi-storey car parks
  • Fans for stairwells
  • Compressors for supplying compressed air

Reliable operation in harsh environments

SINAMICS G120P is suitable for use under harsh environmental conditions:

  • High degree of protection IP55 for installation outside the control cabinet
  • Degree of protection IP20 for use in the control cabinet
  • Degree of protection IP20 Push Through variant for space-saving design when installed in the control cabinet; power losses are dissipated using an external heat sink, separate internal air circulation
  • Operation possible at ambient temperatures of up to 60 °C (140 °F)
  • Coated modules for increased resistance to humidity and dust

Design

SINAMICS G120P is a modular converter system comprising the following components.

  • CU230P‑2 Control Unit
  • Power Module
  • Operator panel or blanking cover

CU230P‑2 Control Unit

The converter communication interface is defined when selecting the Control Unit (FW V4.5 and higher).

  • CU230P‑2 HVAC → USS, Modbus RTU, BACnet MS/TP, FLN P1
  • CU230P‑2 DP → PROFIBUS
  • CU230P‑2 PN → PROFINET, EtherNet/IP

The CU230P-2 Control Unit controls and monitors the Power Module and the connected motor using several different closed-loop control modes that can be selected. It supports communication to a local or central controller as well as to the monitoring equipment, and allows all process-related auxiliary equipment and external components to be connected (sensors, valves, contactors, etc.).

Power Modules

The Power Module is selected depending on the power requirement and the application. State-of-the-art IGBT technology with pulse-width modulation is used for reliable and flexible motor operation. Comprehensive protection functions provide a high degree of protection for the Power Module and the motor.

Power Modules for use in building technology for heating, air conditioning and ventilation applications

The Power Modules in degree of protection IP20 are intended for installation in a control cabinet:

  • PM230 with integrated filter class A, 0.37 kW to 75 kW
  • PM230 without integrated line filter, 0.37 kW to 75 kW
  • PM230 with integrated filter class A, Push Through variant, 3 kW to 18.5 kW
  • PM230 without integrated line filter, Push Through variant, 3 kW to 18.5 kW

The Power Modules in degree of protection IP55 can be erected as distributed units outside a control cabinet.

  • PM230 with integrated filter class A, degree of protection IP55/UL Type 12, 0.37 kW to 90 kW
  • PM230 with integrated filter class B, degree of protection IP55/UL Type 12, 0.37 kW to 90 kW

Power Modules for use in the water/wastewater sector as well as in industrial applications

The Power Modules in degree of protection IP20 are intended for installation in a control cabinet:

Line voltage 380 V to 480 V 3 AC

  • PM240P-2 with integrated filter class A, 22 kW to 132 kW
  • PM240P-2 without integrated line filter, 22 kW and 132 kW
  • PM330 without integrated line filter, 160 kW to 560 kW

Line voltage 500 V to 690 V 3 AC

  • PM240P-2 with integrated filter class A, 11 kW to 132 kW
  • PM240P-2 without integrated line filter, 11 kW and 132 kW
  • PM330 without integrated line filter, 315 kW to 630 kW

SINAMICS G120P Cabinet

SINAMICS G120P units rated for outputs of 75 kW and higher are also available in the control cabinet version SINAMICS G120P Cabinet for line voltages of 380 V to 480 V 3 AC and 500 V to 690 V 3 AC.

  • SINAMICS G120P Cabinet, degrees of protection IP20/IP21/IP23/IP43/IP54, 75 kW to 630 kW, with and without line filter

Operator panel or blanking cover

  • Intelligent Operator Panel IOP‑2, degree of protection IP55/UL Type 12
    The IOP‑2: supports entry-level personnel and drive experts. Thanks to the color display, menu-based operation and the application wizards, it is easy to commission, diagnose and locally control standard drives. Optionally available wizards 1) interactively guide users through the commissioning process.
  • Basic Operator Panel BOP‑2, degree of protection IP55/UL Type 12
    The menu prompting and the 2-line display facilitate fast and user-friendly commissioning of the converter. Simultaneous display of the parameter and parameter value, as well as parameter filtering, means that basic commissioning of a drive can also be performed without a printed parameter list.
  • Blanking cover, degree of protection IP55/UL Type 12
    The blanking cover is mounted on the Power Module in place of an operator panel, provided that an operator panel is not required.

The operator panel supports user-friendly local commissioning, control and diagnostics and enables complete converter data sets to be pre-parameterized and cloned.

Note regarding PM230 Power Modules in degree of protection IP55/UL Type 12:
It is essential to plug on an operator panel or the blanking cover in order to achieve degree of protection IP55.

1) Additional information is available on the Internet at
https://support.industry.siemens.com/cs/document/67273266

Line-side power components

The following line-side power components are available for the SINAMICS G120P converters:

  • Line filters for PM230 and PM330 Power Modules and SINAMICS G120P Cabinet
    With an additional line filter, the Power Module complies with a higher radio interference class.
  • Line reactors for PM330 Power Modules and SINAMICS G120P Cabinet
    Line reactors smooth the current drawn by the converter and thus reduce harmonic components in the line current. Through the reduction of the current harmonics, the thermal load on the power components in the rectifier and in the DC link capacitors is reduced as well as the harmonic effects on the supply. The use of a line reactor increases the service life of the converter.
    SINAMICS G120P Cabinet units feature a cabinet-integrated line-side reactor as standard.

Note:
A line reactor must not be used in combination with a PM230 Power Module.

Recommended line-side overcurrent protection devices and power components

This section contains recommendations for additional line-side components, such as Siemens fuses and circuit breakers (line-side components must be dimensioned in accordance with IEC standards).

Additional information about the listed fuses and circuit breakers is available in the Catalogs LV 10, IC 10 and IC 10 AO as well as in the Industry Mall.

DC link components

The following DC link components are available for the SINAMICS G120P converters:

  • Braking Module for PM330 Power Modules and SINAMICS G120P Cabinet
    A Braking Module and the matching braking resistor are required to achieve controlled braking of a drive. The Braking Module houses the power electronics and the associated control circuit.
  • Braking resistors for PM330 Power Modules and SINAMICS G120P Cabinet
    Excess energy in the DC link is dissipated via the braking resistor.

Load-side power components

Various load-side power components are available for the SINAMICS G120P converters. These allow the use of longer shielded motor cables and increase the motor service life:

  • Output reactors
    Output reactors reduce the rate of voltage rise (dv/dt) and the height of the current peaks, and enable longer motor cables to be connected.
  • Sine-wave filters for PM230 Power Modules
    Sine-wave filters limit the rate of voltage rise (dv/dt) and the peak voltages on the motor winding. Similar to an output reactor, they enable the connection of longer motor cables.
  • dv/dt filters plus VPL for PM240P-2 and PM330 Power Modules
    dv/dt filters plus VPL (Voltage Peak Limiter) limit the voltage rate-of-rise dv/dt to values <500 V/μs and the typical voltage peaks to values according to the limit value curve as per IEC/TS 60034‑17: 2006.
    Standard motors with standard insulation and without insulated bearings can be used for converter operation if a dv/dt filter plus VPL is used.
  • dv/dt filters compact plus VPL for PM330 Power Modules and SINAMICS G120P Cabinet
    dv/dt filters compact plus VPL (Voltage Peak Limiter) limit the voltage rate-of-rise dv/dt to values of <1600 V/μs and the typical voltage peaks to values according to the limit value curve A to IEC 60034‑25: 2007.
    Standard motors with standard insulation and without insulated bearings can be used for converter operation if a dv/dt filter compact plus VPL is used.

Optional accessories

  • Line-side cable connection, left, for PM330 Power Modules
  • Push Through mounting frame for PM230 Power Modules
  • SINAMICS memory card (SD card)
  • PC converter connection kit 2
  • Shield connection kits for CU230P‑2 Control Units (for PM230 and PM240P-2 Power Modules)
  • Shield connection kits and shield plates for PM230 and PM240P-2 Power Modules

Spare parts

  • Spare parts kit for Control Units
  • Shield connection kits for PM240P-2 Power Modules
  • Shield plates for PM230 Power Modules
  • Mounting set for PM230 Power Modules
  • Terminal Cover Kit for PM230 Power Modules
  • Fan units and replacement fans

Function

Technology function

Functions specific to pumps, fans and compressors are already integrated, e.g.:

  • Automatic restart
    Application restart after a power failure or fault occurrence
  • Flying restart
    Connection of the converter when the motor is running
  • Flux reduction
    Automatic adaptation of the motor current to the prevailing load conditions in U/f control mode (ECO mode) as well as in sensorless vector control mode
  • Cascade connection
    Load-dependent connection and disconnection of a maximum of three additional motors by the converter in order to provide a largely constant output power (implemented by means of an additional external circuit)
  • Hibernation mode
    Startup or shutdown of the drive when the relevant value drops below an external setpoint or the internal PID controller setpoint
  • Real-time clock
    For time-dependent process controls, e.g. to reduce the temperature of a heating control at night and with automatic daylight saving/standard time switchover
  • Freely programmable logical function blocks
    For simulating simple PLC functions

Functions especially for building technology as well as heating/air conditioning/ventilation applications

  • 4 integrated PID controllers
    One PID controller for controlling the drive speed as a function of pressure, temperature, flowrate, fill level, air quality and other process variables, and a further three PID controllers with freely configurable outputs, e.g. for controlling valves (heating, cooling) or flaps
  • Emergency mode
    Special converter operating mode that enhances the availability of the drive system in the event of a fire
  • Closed-loop control of a zone with up to 3 sensors for pressure or temperature, or
  • Closed-loop control of two independent zones, each with one sensor
  • Bypass mode
    When the setpoint is reached or a fault occurs, the system changes over to line operation (implemented by means of an additional external circuit)
  • Programmable time switches

Configuration

The following electronic configuring guides and engineering tools are available for SINAMICS G120P converters:

SinaSave energy efficiency tool

Use SinaSave to calculate potential energy savings

The web-based tool SinaSave can be used to estimate the potential savings which can be achieved over the entire lifecycle, e.g. for pump and fan applications, thanks to SINAMICS. The tool takes into consideration all important plant-specific quantities, such as the power and load data of the application, the relevant control mode and the operation profile for the application in question. The result delivered by the tool specifies the potential energy savings which can be achieved with the specific application in conjunction with the Integrated Drive System or the drive component. The tool also provides a monetary evaluation of the potential savings and estimates the payback period.

Drive Technology Configurator (DT Configurator)

Drive Technology Configurator (DT Configurator) within the CA 01

The interactive catalog CA 01 – the offline Industry Mall of Siemens on DVD‑ROM – contains over 100 000 products with approximately 5 million possible drive system product variants. The Drive Technology Configurator (DT Configurator) has been developed to facilitate selection of the correct motor and/or converter from the wide spectrum of drives. It is integrated as a selection tool in Catalog CA 01.

Online DT Configurator

In addition, the DT Configurator can be used on the Internet without requiring any installation. The DT Configurator can be found in the Siemens Industry Mall at the following address:
http://www.siemens.com/dt-configurator

SIZER for Siemens Drives engineering tool

Configuring made simple and systematic

The SIZER for Siemens Drives engineering tool is used to configure low-voltage drive systems: Using the application as the prime reference, this tool provides step-by-step support in defining the mechanical system and designing converters, motors and gear units. It also helps the user to configure other system components and to design open-loop and closed-loop control functions. In addition to engineering results such as characteristics, technical specifications and installation and dimensional drawings, SIZER for Siemens Drives also provides calculations pertaining to performance and load-dependent power requirements.

SIZER WEB ENGINEERING engineering tool

Drive engineering – flexible, customized and user-friendly

A solution for a drive task can be identified quickly with the web-based tool: menu-prompted workflows guide the user through the technical selection and dimensioning of products and drive systems, including the accessories.

Based on an integrated inquiry functionality, SIZER WEB ENGINEERING also offers you special customized solutions for applications which cannot be addressed using “Standard Products”; i.e. the focus is on flexibility and customized solutions.

Comprehensive documentation, such as data sheets, startup calculations, dimensional drawings, offer documentation and a lot more are integrated in the tool. The result: Customized solutions for any drive task.

The product groups supported are:

  • High-voltage motors
  • Low-voltage motors
  • Medium-voltage converters
  • Low-voltage converters
  • DC converters

The tool can also be used to design the following drive systems:

  • Medium-voltage systems
  • Low-voltage systems
    • Basic single-axis applications for pumps, fans, and compressors
    • Complex applications (on condition that: SIZER for Siemens Drives is installed)

STARTER commissioning tool

Commissioning and diagnostics – intelligent and easy

The STARTER commissioning tool allows menu-prompted commissioning, optimization and diagnostics. Apart from the SINAMICS drives, STARTER is also suitable for MICROMASTER 4 devices.

SINAMICS Startdrive commissioning tool

SINAMICS engineering in the TIA Portal

SINAMICS Startdrive is a tool for configuring, commissioning, and diagnosing the SINAMICS family of drives and is integrated into the TIA Portal. SINAMICS Startdrive can be used to implement drive tasks with the SINAMICS G120, SINAMICS G120C, SINAMICS G110M, SINAMICS G120D and SINAMICS G120P drives. The commissioning tool has been optimized with regard to user-friendliness and consistent use of the TIA Portal benefits of a common working environment for PLC, HMI and drives.

Drive ES engineering system

Drive ES is the engineering system that can be used to integrate the communication, configuration and data management functions of Siemens drive technology into the SIMATIC automation world easily, efficiently and cost-effectively. Two software packages are available for SINAMICS – Drive ES Basic and Drive ES PCS 7.

You can find more information about the Drive ES engineering system in the chapter Engineering Tools.

Additional information about the Drive ES engineering system is available on the internet at
http://www.siemens.com/drive-es

Technical specifications

Unless explicitly specified otherwise, the following technical specifications are valid for all the following components of the SINAMICS G120P and SINAMICS G120P Cabinet pump, fan, compressor converters.

SINAMICS G120P
Mechanical specifications
Vibratory load
Storage acc. to EN 60721‑3‑1
Drives and components, frame sizes FSA to FSF Class 1M2Deflection: 1.5 mm at 5 … 9 Hz
Acceleration: 0.5 × g at 9 … 200 Hz
Drives and components, frame sizes GX to JX Class 1M2Deflection: 1.5 mm at 5 … 9 Hz
Acceleration: 0.5 × g at 9 … 200 Hz
SINAMICS G120P Cabinet Class 1M2Deflection: 1.5 mm at 5 … 9 Hz
Acceleration: 0.5 × g at 9 … 200 Hz
Transport 1) acc. to EN 60721-3-2
Drives and components, frame sizes FSA to FSC 2) Class 2M2
Drives and components, frame sizes FSD to FSF 2) Class 2M3
Drives and components, frame sizes GX to JX Test FC according to EN 60068‑2‑6Deflection: ±1.5 mm at 5 … 9 Hz
Acceleration: 0.5 × g at 9 … 200 Hz
SINAMICS G120P Cabinet Class 2M2
Operation acc. to EN 60721‑3‑3
Drives and components, frame sizes FSA to FSF Class 3M1
Drives and components, frame sizes GX to JX Test FC according to EN 60068‑2‑6Deflection: 0.075 mm at 10 … 58 Hz
Acceleration:10 m/s2 (1 × g) at 58 … 200 Hz
SINAMICS G120P Cabinet Class 3M2
Shock load
Storage acc. to EN 60721‑3‑1
Drives and components, frame sizes FSA to FSF Class 1M2
Drives and components, frame sizes GX and JX Test FC according to EN 60068‑2‑6Deflection: ±1.5 mm at 5 … 9 Hz
Acceleration: 0.5 × g at 9 … 200 Hz
SINAMICS G120P Cabinet Class 1M2Acceleration: 40 m/s2 (4 × g) at 22 ms
Transport 1) acc. to EN 60721-3-2
Drives and components, frame sizes FSA to FSC 2) Class 2M2
Drives and components, frame sizes FSD to FSF 2) Class 2M3
Drives and components, frame sizes GX to JX Test FC according to EN 60068‑2‑6Deflection: ±1.5 mm at 5 … 9 Hz
Acceleration: 0.5 × g at 9 … 200 Hz
SINAMICS G120P Cabinet Class 2M2
Operation acc. to EN 60721‑3‑3
Drives and components, frame sizes FSA to FSC Class 3M2
Drives and components, frame sizes FSD to FSF Class 3M1
Drives and components, frame sizes GX and JX Test Ea according to EN 60068‑2‑27Acceleration: 49 m/s2 (5 × g) at 30 ms
or 147 m/s2 (15 × g) at 11 ms
SINAMICS G120P Cabinet Class 3M2
Ambient conditions
Protection classAccording to EN 61800‑5‑1 Class I (with protective conductor system) and class III (PELV)
Touch protection According to EN 50274 and DGUV Regulation 3 when used for the intended purpose
Permissible ambient and coolant temperature (air) during operation for line-side power components and Power Modules
Low overload (LO) Frame sizes FSA to FSC: -10 … +40 °C (14 … 104 °F) without derating
Frame sizes FSD to FSF (PM230): 0 … 40 °C (32 … 104 °F) without derating
Frame sizes FSD to FSF (PM240P-2): -20 … +40 °C (-4 … +104 °F) without derating
Frame sizes FSA to FSF: >40 … 60 °C (>104 … 140 °F) see derating characteristicsFrame size GX to JX: 0 … 45 °C (32 … 113 °F) without derating
>45 … 55 °C (>113 … 131 °F) see derating characteristicsSINAMICS G120P Cabinet 0 … 40 °C (32 … 104 °F) without derating
>40 … 50 °C (>104 … 122 °F) see derating characteristics
High overload (HO) Frame sizes FSA to FSC: -10 … +50 °C (14 … 122 °F) without derating
Frame sizes FSD to FSF (PM230): 0 … 50 °C (32 … 122 °F) without derating
Frame sizes FSD to FSF (PM240P-2): -20 … +50 °C (-4 … +122 °F) without derating
>50 … 60 °C (>122 … 140 °F) see derating characteristicsFrame size GX to JX: 0 … 45 °C (32 … 113 °F) without derating
>45 … 55 °C (>113 … 131 °F) see derating characteristicsSINAMICS G120P Cabinet 0 … 40 °C (32 … 104 °F) without derating
>40 … 50 °C (>104 … 122 °F) see derating characteristics
Installation altitude Up to 1000 m (3281 ft) above sea level without derating,
> 1000 m (3281 ft) see derating characteristics
Permissible ambient and coolant temperature (air) during operation for Control Units and supplementary system components With CU230P‑2 HVAC/DP with/without blanking cover: -10 … +60 °C (14 … 140 °F)With CU230P‑2 PN with/without blanking cover: -10 … +55 °C (14 … 131 °F)With IOP‑2/BOP‑2: 0 … 50 °C (32 … 122 °F)Derating of 3 K/1000 m applies to Control Units as of an installation altitude of 1000 m (3281 ft) above sea level.
Climatic ambient conditions
Storage 1) acc. to EN 60721‑3‑1
Drives and components, frame sizes FSA to FSF for PM230 Temperature -40 … +70 °C (-40 … +158 °F)
Relative air humidity <95 %, condensation not permissible
Drives and components, frame sizes FSD to FSF for PM240P-2 Class 1K3
Temperature -25 … +55 °C (-13 … +131 °F)
Relative air humidity 5 … 95 %, condensation not permissible
Drives and components, frame sizes GX to JX and SINAMICS G120P Cabinet Class 1K4
Temperature -25 … +55 °C (-13 … +131 °F)
Relative air humidity 5 … 95 %, condensation not permissible
Transport 1) acc. to EN 60721-3-2
Drives and components, frame sizes FSA to FSF Class 2K4
Temperature -40 … +70 °C (-40 … +158 °F)
Max. air humidity 95 % at 40 °C (104 °F)
Drives and components, frame sizes GX to JX and SINAMICS G120P Cabinet Class 2K3
Temperature -25 … +70 °C (-13 … +158 °F), -40 °C (104 °F) permissible for 24 h
Relative air humidity 5 … 95 % at 40 °C (104 °F)
Operation acc. to EN 60721‑3‑3
Drives and components, frame sizes FSA to FSF Class 3K3
Condensation, splashwater, and ice formation not permitted (EN 60204, Part 1)
Drives and components, frame sizes GX to JX Class 3K3
Temperature 0 … 45 °C (32 … 113 °F), up to 55 °C (131 °F) with derating
Relative air humidity 5 … 95 %
Condensation, splashwater and ice formation are not permitted (EN 60204, Part 1)
SINAMICS G120P Cabinet Class 3K3
Temperature 0 … 40 °C (32 … 104 °F), up to 50 °C (122 °F) with derating
Relative air humidity 5 … 95 %
Condensation, splashwater and ice formation are not permitted (EN 60204, Part 1)
Environmental class/harmful chemical substances
Storage 1) acc. to EN 60721‑3‑1 Class 1C2
Transport 1) acc. to EN 60721-3-2 Class 2C2
Operation acc. to EN 60721‑3‑3 Class 3C2
Organic/biological influences
Storage 1) acc. to EN 60721‑3‑1 Class 1B1
Transport 1) acc. to EN 60721-3-2 Class 2B1
Operation acc. to EN 60721‑3‑3 Class 3B1
Degree of pollutionAccording to EN 61800‑5‑1 2
Standards
Compliance with standards
Drives and components, frame sizes FSA to FSF UL, cUL 3), CE, RCM, SEMI F47
Drives, frame sizes GX to JX cULus, CE, RCM, EAC, KC, SEMI F47 4)
SINAMICS G120P Cabinet CE, RCM, EAC, KC, SEMI F47 4)
CE marking According to Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
EMC DirectiveAccording to EN 61800-3
PM230: Frame sizes FSA to FSF with integrated line filter class A, degree of protection IP20/UL Open Type and IP55/UL Type 12 The Power Modules comply with Category C2 according to EN 61800‑3.
PM230: Frame sizes FSA to FSF with integrated line filter class B, degree of protection IP55/UL Type 12 The Power Modules comply with the limit values for low-frequency line harmonics and conducted interference according to Category C1. They comply with the limit values for field-conducted interference emissions according to Category C2.
PM240P-2: Frame sizes FSD to FSF (380 … 480 V 3 AC) with integrated line filter class A The Power Modules comply with Category C2 according to EN 61800‑3.
PM240P-2: Frame size FSF (500 … 690 V 3 AC) with integrated line filter class A The Power Modules comply with Category C3 according to EN 61800‑3.
PM330: Frame sizes GX to JX Category C3 5)
PM330: Frame sizes GX to JX with additional line filter class A Category C2 6)
SINAMICS G120P Cabinet Category C3 7)
SINAMICS G120P Cabinet with additional line filter class A Category C2 7)

Deviations from the specified classes are underlined.

1) In transport packaging.

2) In product packaging.

3) Applies to PM230 Power Modules frame sizes FSA to FSC and PM240P‑2 Power Modules with integrated line filter class A.

4) SEMI F47 for PM330 Power Modules, frame sizes HX (500 V to 690 V) and JX, available soon.

5) Standard configuration: Devices installed in the control cabinet with EMC-compatible configuration, line reactor uK = 2 %, shielded motor cable (e.g. Protoflex EMC) with max. 150 m cable length. Line harmonics acc. to EN 61000‑2‑4: Class 3, THD(U) total = 10 % for typical line conditions (RSC > 10);THD(I) total: typically 30 … 45 % (15 > RSC > 50).

6) Use in the second environment, for boundary conditions refer to 6).

7)For boundary conditions see 6), cabinet is configured accordingly in version A.

Note:

The EMC product standard EN 61800-3 does not apply directly to a frequency converter but to a PDS (Power Drive System), which comprises the complete circuitry, motor and cables in addition to the converter. The frequency converters on their own do not generally require identification according to the EMC Directive.

Compliance with standards

CE marking

The SINAMICS G120P and SINAMICS G120P Cabinet converters meet the requirements of the Low-Voltage Directive 2014/35/EC.

Low-Voltage Directive

The converters comply with the following standards listed in the official journal of the EU:

  • EN 60204
    Safety of machinery, electrical equipment of machines
  • EN 61800‑5‑1
    Electrical power drive systems with variable speed – Part 5‑1: Requirements regarding safety – electrical, thermal, and energy requirements

UL listing

Converters in UL category NMMS certified to UL and cUL, in compliance with UL508C or ULC61800‑5‑1. UL File Number E121068 and E192450.

For use in environments with pollution degree 2.

See also on the Internet at http://www.ul.com

Machinery directive

The converters are suitable for installation in machines. Compliance with the Machinery Directive 2006/42/EC requires a separate certificate of conformity. This must be provided by the plant construction company or the organization marketing the machine.

Functional safety

SINAMICS G120P and SINAMICS G120P Cabinet are not intended for use in installations with functional safety as defined by ISO 13849‑1, IEC 61508‑x.

EMC Directive

  • EN 61800‑3
    Variable-speed electric drives
    Part 3: EMC product standard including specific test methods

The following explanatory information applies to SINAMICS G120P and SINAMICS G120P Cabinet converters supplied by Siemens AG:

  • The EMC product standard EN 61800-3 does not apply directly to a converter but to a PDS (Power Drive System), which comprises the complete circuitry, motor and cables in addition to the converter.
  • Converters are normally only supplied to experts for installation in machines or systems. A converter must, therefore, only be considered as a component which, on its own, is not subject to the EMC product standard EN 61800-3. The converter’s operating instructions, however, specifies the conditions regarding compliance with the product standard if the converter is expanded to become a PDS. For a PDS, the EMC Directive in the EU is complied with by observing the product standard EN 61800-3 for variable-speed electric drive systems. The converters on their own do not generally require identification according to the EMC Directive.
  • Different categories C1 to C4 have been defined in accordance with the environment of the PDS at the operating location:
    • Category C1: Drive systems for rated voltages < 1000 V for use in the first environment
    • Category C2: Stationary drive systems not connected by means of a plug connector for rated voltages < 1000 V. When used in the first environment, the system must be installed and commissioned by personnel familiar with EMC requirements. A warning note is required.
    • Category C3: Drive systems for rated voltages < 1000 V for exclusive use in the second environment. A warning note is required.
    • Category C4: Drive systems for rated voltages ≥ 1000 V or for rated currents ≥ 400 A or for use in complex systems in the second environment. An EMC plan must be created.
  • The EMC product standard EN 61800‑3 also defines limit values for conducted interference and radiated interference for the “second environment” (= industrial power supply systems that do not supply households). These limit values are below the limit values of filter class A to EN 55011. Unfiltered converters can be used in industrial environments as long as they are part of a system that contains line filters on the higher-level infeed side.
  • With SINAMICS G120P and SINAMICS G120P Cabinet, Power Drive Systems (PDS) that fulfill the EMC product standard EN 61800-3 can be configured when observing the installation instructions in the product documentation.
  • A differentiation must be made between the product standards for electrical drive systems (PDS) of the range of standards EN 61800 (of which Part 3 covers EMC topics) and the product standards for the devices/systems/machines, etc. This will probably not result in any changes in the practical use of converters. Since converters are always part of a PDS and these are part of a machine, the machine manufacturer must observe various standards depending on their type and environment (e.g. EN 61000‑3‑2 for line harmonics and EN 55011 for radio interference). The product standard for PDS on its own is, therefore, either insufficient or irrelevant.
  • With respect to the compliance with limits for line supply harmonics, the EMC product standard EN 61800‑3 for PDS refers to compliance with the EN 61000‑3‑2 and EN 61000‑3‑12 standards. EN 61000‑2‑4 applies for devices >75 A.
  • Regardless of the configuration with SINAMICS G120P and SINAMICS G120P Cabinet and its components, the machine construction company (OEM) can also apply other measures to ensure that the machine complies with the EU EMC Directive. The EU EMC Directive is generally fulfilled when the relevant EMC product standards are observed. If they are not available, the generic standards (e.g. EN 61000‑x‑x) can be used instead. It is important that the conducted and emitted interference at the line supply connection point and outside the machine remain below the relevant limit values. Any suitable technical measures can be applied to ensure this.

SEMI F47

SEMI F47 is an industry standard relating to the immunity to voltage dips. This includes the requirement that industrial equipment must be able to tolerate defined dips or drops of the line supply voltage. As a result, industrial equipment that fulfills this standard is more reliable and productive.

All Power Modules of the SINAMICS G120P product family fulfill the latest standard SEMI F47-0706 1). In the case of a voltage dip, defined in accordance with SEMI F47‑0706, these drives either continue to supply a defined output current, or using an automatic restart function, continue to operate as expected.

1) SEMI F47 for PM330 Power Modules, frame sizes HX (500 V to 690 V) and JX, available soon

EAC approval for Russia/Belarus/Kazakhstan/Armenia

Since 2013-02-15, Russia, Kazakhstan, Belarus and Armenia have been united in the Eurasian EAC customs union. An EAC approval as replacement for the GOST mark is required for all products that are to be sold in Russia.

All devices delivered to the customs union must have these customs certifications.

RCM approval for Australia

The RCM mark is required for marketing Siemens electronic devices in Australia. Electronic devices must provide proof of EMC clearance in Australia, similar to the CE marking of conformity laid down by the EMC directive applicable in the EU. The converters must be marked accordingly. These requirements have been in force since October 1, 1999.

On March 1, 2016, the C-Tick mark was replaced by the RCM mark.

KC approval for South Korea

KC approval (formerly KCC) is required for the distribution of our electrical equipment in South Korea. Electronic devices that are covered by the EU Directive on Electromagnetic Compatibility must provide an EMC certificate issued by a resident authority in South Korea. The converters must be marked accordingly. This requirement has been in force since January 24, 2011.

Power Modules

General technical specifications

Power Modules PM230 PM240P-2 PM330 Cabinet
System operating voltage 380 … 480 V 3 AC ±10 % 380 … 480 V 3 AC ±10 %500 … 690 V 3 AC ±10 % 380 … 480 V 3 AC ±10 %500 … 690 V 3 AC ±10 % 380 … 480 V 3 AC ±10 %500 … 690 V 3 AC ±10 %
Grid requirement
Short-circuit power RSC
>100 >25 >33 line reactor recommended >33 1) line reactors installed as standard
Input frequency 47 … 63 Hz 47 … 63 Hz 47 … 63 Hz 47 … 63 Hz
Output frequency
Control mode U/f 0 … 550 Hz 0 … 550 Hz 0 … 150 Hz 0 … 150 Hz
Control type Vector 0 … 240 Hz 0 … 200 Hz 0 … 150 Hz 0 … 150 Hz
Pulse frequency 4 kHzHigher pulse frequencies up to 16 kHz, see derating data At 380 … 480 V 3 AC:
Up to 90 kW LO: 4 kHz
From 110 kW LO: 2 kHzHigher pulse frequencies up to 16 kHz, see derating dataAt 500 … 690 V 3 AC:
2 kHz, can be adjusted to 4 kHz
Self-adjusting up to 4 kHz Self-adjusting up to 4 kHz
Power factor λ 0.9 0.9 … 0.95 0.75 … 0.93 0.75 … 0.93
Offset factor cos φ 0.95 0.99 0.96 0.96
Efficiency ≤97 % >97 % >98 % >98 %
Output voltage, max.In % of input voltage 95 % 95 % 97 % 97 %
Overload capability
Low overload (LO)
Note:When the overload capability is used, the base-load current IL is not reduced.
FSA to FSC:
1.5 × base-load current IL (i. e. 150 % overload) for 3 s plus 1.1 × base-load current IL (i. e. 110 % overload) for 57 s within a cycle time of 300 sFSD to FSF:
1.1 × base-load current IL (i.e. 110 % overload) for 60 s within a cycle time of 300 s
1.35 × base-load current IL (i.e. 135 % overload) for 3 s plus 1.1 × base-load current IL (i.e. 110 % overload) for 57 s within a cycle time of 300 s 1.35 × base-load current IL (i.e. 135 % overload) for 3 s or1.1 × base-load current IL (i.e. 110 % overload) for 60 s within a cycle time of 300 s 1.35 × base-load current IL (i.e. 135 % overload) for 3 s or1.1 × base-load current IL (i.e. 110 % overload) for 60 s within a cycle time of 300 s
High overload (HO)
Note:When the overload capability is used, the base-load current IH is not reduced.
FSA to FSC:
2 × base-load current IH (i. e. 200 % overload) for 3 s plus 1.5 × base-load current IH (i. e. 150 % overload) for 57 s within a cycle time of 300 sFSD to FSF:
1.5 × base-load current IH (i.e. 150 % overload) for 60 s within a cycle time of 300 s
1.5 × base-load current IH (i. e. 150 % overload) for 60 s within a cycle time of 300 s 1.5 × base-load current IH (i. e. 150 % overload) for 60 s within a cycle time of 300 s 1.5 × base-load current IH (i. e. 150 % overload) for 60 s within a cycle time of 300 s
Possible braking methods DC braking DC brakingCompound braking DC brakingDynamic braking with optional Braking Module DC brakingDynamic braking with optional Braking Module
Overvoltage category acc. to IEC 61800‑5‑1 III III Supply circuits: III
Non-supply circuits: II
III
Degree of protection IP55/UL Type 12 (with IOP‑2, BOP‑2 or blanking cover)IP20 (Standard or Push Through) IP20 IP20 Standard: IP20Optional: IP21, IP23, IP43 and IP54
Cooling Power units with increased air cooling using integrated fans Internal air cooling, power units with increased air cooling by built-in fans Internal air cooling, power units with increased air cooling by built-in fans Internal air cooling, power units with increased air cooling by built-in fans
Protection functions UndervoltageOvervoltageOvercurrent/overloadOvertemperatureGround faultShort-circuitStall protectionMotor blocking protectionMotor overtemperatureParameter locking
Short-Circuit Current Rating SCCRacc. to UL(Short-Circuit Current Rating) 2) Degree of protection IP55 frame sizes FSA to FSC: 40 kADegree of protection IP55 frame sizes FSD to FSF and degree of protection IP20: 65 kA 100 kA 100 kA 3)
Short-Circuit Current Rating ICCacc. to IEC 3) 100 kA 100 kA 3) 65 kA 3)

1) Does not apply in conjunction with option L01.

2) Applies to industrial control panel installations according to NEC Article 409 or UL 508A/508C or UL 61800-5-1.

3) In combination with the fuses specified in section Recommended line-side overcurrent protection devices and/or Load-side power components.

Accessories

Optional accessories

Shield connection kit 1 for CU230P‑2 HVAC/DP Control Units

Shield connection kit 1 offers optimum shield connection and strain relief for all signal and communication cables. It includes a matching shield connection plate and all of the necessary connecting and retaining elements for mounting.

Shield connection kit 3 for CU230P‑2 PN, CU240E‑2 PN and CU240E‑2 PN‑F Control Units

Shield connection kit 3 offers optimum shield connection and strain relief for all signal and communication cables. It includes a matching shield connection plate and all of the necessary connecting and retaining elements for mounting.

SINAMICS memory card (SD card)

The parameter settings for a converter can be stored on the SINAMICS SD memory card. The SINAMICS SD card can be used to pre-parameterize converters and to clone complete converter data sets. When service is required, e.g. after the converter has been replaced and the data have been downloaded from the memory card the drive system is immediately ready for use again. The associated slot is located on the top of the Control Unit.

PC converter connection kit 2

For controlling and commissioning the converter directly from a PC, if the STARTER commissioning tool has been installed on the PC.

Installation kit for line-side cable connection, left, for PM330 Power Modules

This installation kit allows supply cables to be brought in from the left-hand side of frame size GX and HX PM330 Power Modules. It is then possible to install the Power Module in the cabinet without any clearance at the top.

Spare parts

Mounting set for PM230 and PM240P-2 Power Modules

Depending on the frame size, different mounting sets are available for PM230 and PM240P-2 Power Modules.

Fan units for PM230 Power Modules

The PM230 Power Module is equipped with an internal and an external fan unit. Both of these can be replaced if necessary.

Replacement fans

The fans for PM240P-2 and PM330 Power Modules are available to order as replacement fans.

Did you know, we are an entrusted Siemens approved partner?

Loading...
