2001-1321/1000-434

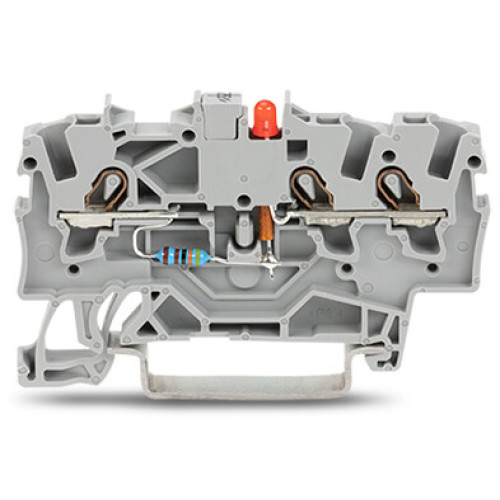

Component terminal block, 3-conductor, LED (red), gray

Manufacturer's No: 2001-1321/1000-434     Manufacturer: WAGO
Component terminal block, 3-conductor, LED (red), gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.25
  • Component: Terminal block
  • Conductor: 3
  • LED color: Red
  • Voltage: 24 VDC
  • DIN-rail compatibility: 35 x 15 and 35 x 7.5
  • Conductor size: 1.5 mm²
  • Connection type: Push-in CAGE CLAMP®
  • Color: Gray

Accessories

Seperator plate, 2 mm thick, oversized, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-1393
Price £0.44
List Price £0.44
On Request

Seperator plate, 2 mm thick, oversized, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-1394
Price £0.45
List Price £0.45
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-242
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-244
Price £0.09
On Request

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2001-171
Price £0.11
List Price £0.11
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-005
Price £4.15
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-006
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-007
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-012
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-023
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-024
Price POA
On Request


Product

Manufacturer Material ID -
2001-1321/1000-434
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Length -
59.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
4.2 Millimetre
Height at lowest possible mounting height -
33 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
32.9 Millimetre
Height -
59.2 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
0.025 Ampere
Rated voltage -
24 Volt
Type of component -
LED
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
4.2 Millimetre
