2001-1441

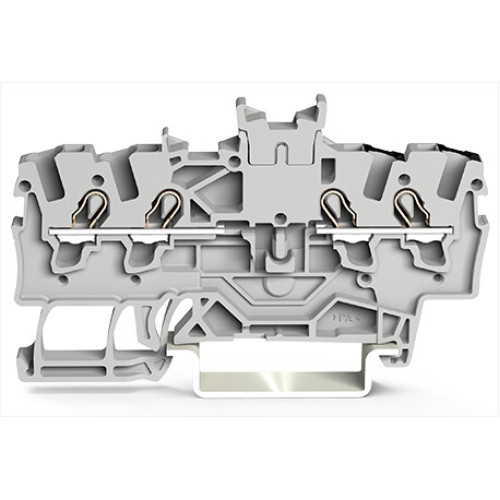

Double potential terminal block, 1.5 mm², with double, center marker slot, gray

Manufacturer's No: 2001-1441     Manufacturer: WAGO
Double potential terminal block, 1.5 mm², with double, center marker slot, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£0.9825
List Price £1.31
  • Double potential terminal block
  • Accommodates wire size up to 1.5 mm²
  • Features double center marker slot
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes Push-in CAGE CLAMP® technology
  • Color: gray

Accessories

Seperator plate, 2 mm thick, oversized, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-1493
Price £0.345
List Price £0.46
Available to order

Seperator plate, 2 mm thick, oversized, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-1494
Price £0.3675
List Price £0.49
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501
Price £3.06
Available to order

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-244
Price £0.09
Available to order

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2001-171
Price £0.0825
List Price £0.11
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-002
Price £4.22
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-005
Price £4.22
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-006
Price POA
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-007
Price POA
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-012
Price POA
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-023
Price POA
Available to order

WMB marking card, as card, stretchable 4 - 4.2 mm, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-024
Price POA
Available to order


Product

Manufacturer Material ID -
2001-1441
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Length -
70 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
4.2 Millimetre
Height at lowest possible mounting height -
37.4 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
37.4 Millimetre
Explosion-tested version 'Ex e' -
Height -
69.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
18 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
4.2 Millimetre
