2201-1441

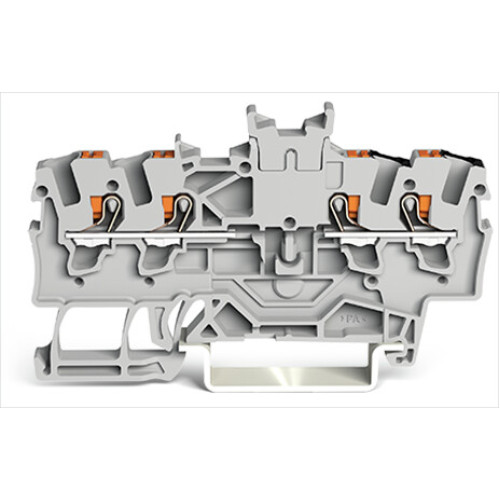

Double potential terminal block, with push-button, 1.5 mm², gray

Manufacturer's No: 2201-1441     Manufacturer: WAGO
Double potential terminal block, with push-button, 1.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Double terminal block with push-button
  • Accommodates wire size up to 1.5 mm²
  • Features double center marker slot
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes Push-in CAGE CLAMP® technology
  • Color: Gray

Accessories

Seperator plate, 2 mm thick, oversized, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-1493
Price £0.45
List Price £0.45
On Request

Seperator plate, 2 mm thick, oversized, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-1494
Price £0.48
List Price £0.48
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-242
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-244
Price £0.09
On Request

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2001-171
Price £0.11
List Price £0.11
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-005
Price £4.15
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-006
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-007
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-012
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-023
Price POA
On Request

WMB marking card, as card, stretchable 4 - 4.2 mm, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-4501/000-024
Price POA
On Request


Product

Manufacturer Material ID -
2201-1441
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
37.4 Millimetre
Height -
69.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
18 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
4.2 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
