6GF35300CD10

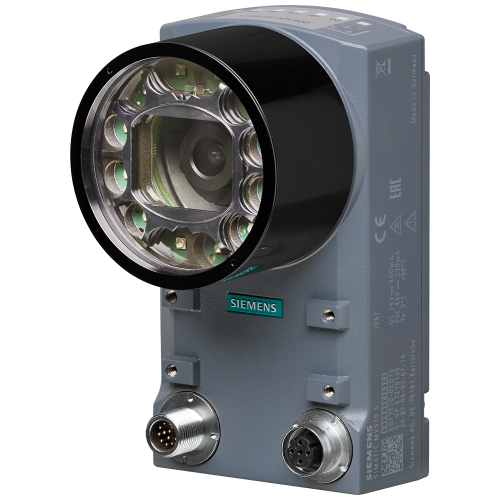

Optical Reader MV530 S

Manufacturer's No: 6GF3530-0CD10     Manufacturer: Siemens
Optical Reader MV530 S

Availability On Request

£2,951.00
  • Resolution: 800 x 600 pixels
  • Function: 1D/2D code reading
  • Operating range: 30 to 250 mm (depending on dot size)
  • Image field: 40 x 30 mm to 185 x 140 mm
  • Power over Ethernet (PoE)
  • IP67 rated
  • Delivery includes: complete reader with built-in ring lamp (green), pole filter, Optic 5.6 mm (fixed focus, fixed cover), and protective barrel

Accessories



Product

Manufacturer Material ID -
6GF3530-0CD10
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Degree of protection (IP rating) -
IP67
Depth -
45 Millimetre
Height -
122 Millimetre
Max. electricity consumption -
0.2 Ampere
Max. image capture frequency -
100 Hertz
Max. transmission range -
250 Millimetre
Model -
Fix mounted
Nominal voltage DC -
24 Volt
Number of digital outputs -
3
Width -
68 Millimetre
With exchange lens -
