6GF35600LE10

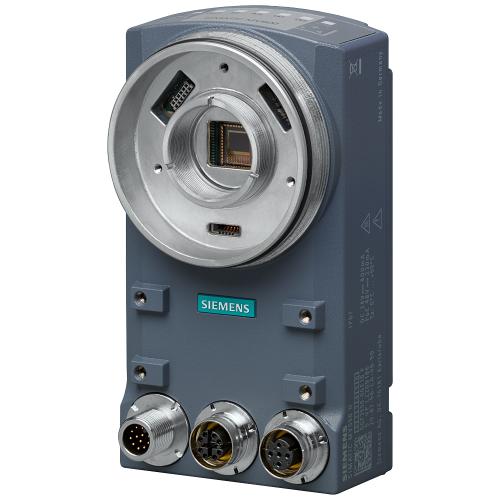

SIMATIC MV560 U code reader, resolution: 1920 x 1200 pixels, for 1D/2D codes

Manufacturer's No: 6GF3560-0LE10     Manufacturer: Siemens
SIMATIC MV560 U code reader, resolution: 1920 x 1200 pixels, for 1D/2D codes

Availability Available to order

£4,070.00
  • Model: SIMATIC MV560 U code reader
  • Resolution: 1920 x 1200 pixels
  • Code reading capability: 1D/2D codes
  • Maximum processing and communication speed
  • Variable image field and distance (lens)
  • Power over Ethernet (PoE) support
  • IP67 protection rating with 6GF3540-8ACxx
  • Delivery: reader included
  • Fixed mounting
  • Model: SIMATIC MVCode Reader MV560 U

Accessories



Product

Manufacturer Material ID -
6GF3560-0LE10
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
DE
Export Control Regulations -
5A991X / N
UNSPSC -
39121527

Technical Specification

Type of interface -
UN
Degree of protection (IP) -
IP67
Number of digital inputs -
3
Type of fastening -
With screws
Interface type -
Other
Degree of protection (IP rating) -
IP67
Depth -
45 Millimetre
Height -
122 Millimetre
Max. electricity consumption -
0.2 Ampere
Max. image capture frequency -
60 Hertz
Max. transmission range -
3000 Millimetre
Model -
Fix mounted
Nominal voltage DC -
24 Volt
Number of digital outputs -
3
Width -
68 Millimetre
With exchange lens -

Availability Available to order

£4,070.00
