6D000013

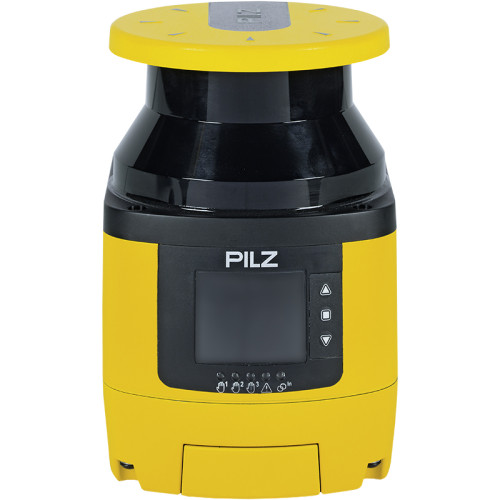

Light model 30 mm/40 mm/50 mm/70 mm/150 mm detection capability muting override EDM

Manufacturer's No: PSEN sc L 5.5 08-12     Manufacturer: Pilz
Light model 30 mm/40 mm/50 mm/70 mm/150 mm detection capability muting override EDM

Availability Back Order

£3,969.71
  • Light model with 30 mm/40 mm/50 mm/70 mm/150 mm detection capability
  • Muting, override, EDM, restart applications in accordance with EN ISO61496-3
  • Vertical applications supported
  • Reference markers for precise measurements
  • Measurement data output (UDP)
  • Rapid exchange facilitated by exchangeable memory block
  • Safety zone of 5.5 m
  • Maximum of 2 safety zones and 2 warning zones parallel active
  • Up to 10 configurable zone sets

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN sc L 5.5 08-12
Net Weight -
1.53kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
IT
UNSPSC -
43233603

Technical Specification

Suitable for safety functions -
Scanning interval -
33 Hertz
Number of semiconductor outputs with signalling function -
1
Number of safety fields -
10
Type of switching output of the OSSD -
PNP
Type of electric connection -
Connector M12
Rated control supply voltage at DC -
19.2 Volt
Operation agent-safety class -
Safety class 2
Detection capability for test bodies -
30 Millimetre
With configurable message output -
Laser protection class -
Class 1
Max. output current at protected output -
250 Milliampere
With restart blockage -
Transmission range of the measuring range -
40 Metre
Transmission range of the safety field -
5.5 Metre
Transmission range of the alert field -
40 Metre
Scan angle -
275 Degrees
Switching voltage of OSSD at state "high" -
17.2 Volt
With alert field output -
Wavelength of the sensor -
905 Nanometre
Thumbnail of product picture -
Medien_800/Pictures_800/6D000013_800.jpg
Ambient temperature -
-10 Degrees celsius
Height of sensor -
152 Millimetre
Length of sensor -
112.5 Millimetre
Number of protected semiconductor outputs -
4
Reaction time -
62 Millisecond
Type of safety acc. IEC 61496-1 -
3
Voltage type -
DC
Width sensor -
102 Millimetre
Pilz

Availability Back Order

£3,969.71
