Productive area monitoring – including in series!
PITreader Keys – New colours for simpler handling
PITreader card unit – Greater flexibility thanks to new RFID transponders in card and sticker format
PITreader (S) card units offer the same wide application area you have come to expect from PITreader (S). However, the transponder type is new. The PITreader card and PITreader sticker use RFID transponders in card or sticker format. The company’s existing RFID-capable cards, plus the familiar PITreader keys, can also be used for authentication, offering you even greater flexibility when choosing the transponder.
One clever feature of the PITreader cards is the transparent window, which means the LED status indicator on the PITreader is visible at all times, even when a card is held to the machine.

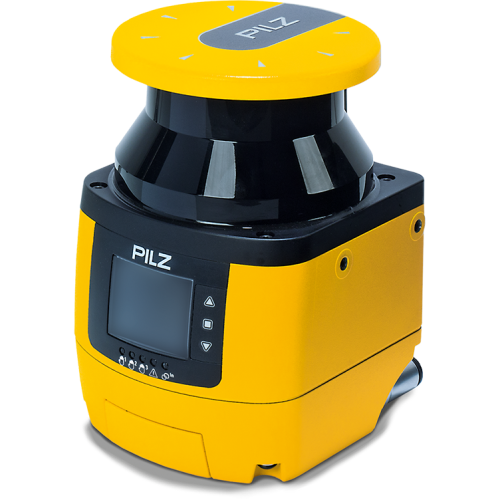

The safety laser scanner PSENscan offers two-dimensional area monitoring with an opening angle of 275 degrees and a protected field range of up to 5.5 metres. Thanks to the free configuration of warning fields and protected fields, plus the ability to adapt to structural conditions, the safety laser scanners are ideal for integrating into the widest range of applications. The safety laser scanner PSENscan is especially suitable for stationary and mobile area guarding as well as access monitoring.
Use the PSENscan Configurator for fast, easy configuration of all the parameters required to operate your safety laser scanner PSENscan! When combined with configurable small controllers PNOZmulti or the controllers PSSuniversal, you have a complete, economical, one-stop solution.
Optimum protection for danger zones – with safety laser scanners
Stationary safeguarding of danger zones
Safety laser scanners PSENscan detect when a person approaches a hazardous movement. If a warning field is accessed, there is controlled braking of the hazardous movement; if the protected field is accessed, the movement is stopped.
Watch the Video: Safeguarding of danger zones
Rear access protection
Where it is difficult to see into danger zones, safety laser scanners PSENscan detect a person’s current location. So they effectively prevent the hazardous movement from re-starting.
Watch the Video: Rear access protection
Access guarding
The safety laser scanners PSENscan provide optimum protection against people entering at access points to danger zones. Thanks to integrated muting inputs, they are also suitable for applications in which material is transported in and out simultaneously.
Watch the Video: Access guarding
Everything within view – Benefits of the safety laser scanner PSENscan
- Easy to integrate due to compact housing and free configuration of the protected fields and warning fields
- Simultaneous monitoring of up to three separate safety zones, plus up to 70 switchable configurations can be set up
- Up to 4 scanners can be connected in series
- Integrated operating display for receiving information directly
