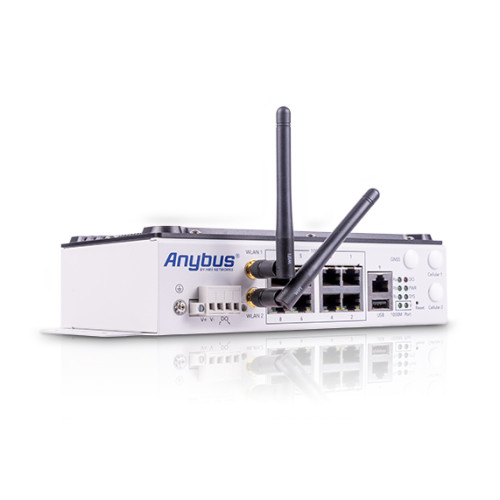

Industrial Wireless LAN router

Dual radio, 2.4 GHz or 5 GHz WLAN for local coverage, up to 866 Mbit/s, IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n

Industrial Wireless LAN router
Industrial Wireless LAN router

FEATURES & BENEFITS

HIGH THROUGHPUT WIRELESS PERFORMANCE

  • Dual radio, 2.4 GHz or 5 GHz WLAN for local coverage, up to 866 Mbit/s
  • IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n

ETHERNET ROUTING SWITCH

  • 8 Fast Ethernet LAN ports
  • 1 Gigabit Ethernet WAN port
  • IEEE 802.1p QoS/802.1Q VLAN priority tagging
  • RIPv2
  • Traffic control

ENHANCED SECURITY AND REDUNDANCY FOR CRITICAL APPLICATIONS

  • Firewall for traffic classification, port forwarding
  • VRRP (Virtual Routing Redundancy Protocol).
  • GRE (Generic Routing Encapsulation RFC2784)
  • Supports NAT, DMZ for LAN protection
  • Supports IPsec, OpenVPN and L2TP for secure connection

    RUGGED DESIGN

  • Effective heat dissipation design for operating in -40 to 75°C environments
  • Railway EMC: EN50121-4 compliance
  • IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
  • Vehicle: E-mark compliance
  • Radio RED for CE Marking
  • Emission: FCC part 15 B Class A

    MANAGEMENT FEATURES

  • Various configuration paths, including WebGUI, CLI and SNMP
  • Diagnostic tools, including LED, Ping/Traceroute, SNMP Trap, E-mail Alert and Syslog
  • External backup/restore, Firmware update
Ethernet ports

LAN: 8 x 100 Mbit/s RJ45, auto negotiation, auto MDI/MDI-X

WAN: 1 x 1 Gbit/s RJ45, auto negotiation, auto MDI/MDI-X

USB 1 x USB type A
Operating temp. -40oC-75oC, 5-95 % non-condensing
Data speeds

802.11ac: MCS 0-9, max. 866 Mbit/s

802.11b: 11 Mbit/s

802.11a/g: 54 Mbit/s

802.11n: MCS 0-15, max. 300 Mbit/s

Power

8-32 VDC (max. 4.8 W)

4-pin removable terminal block connector

2-pin for power input

2-pin for dry relay output (max 0.5 A/24 VDC)

Weight 1 400 g
Housing material Steel/aluminum
Ingress protection IP31
Dimensions 200 x 126 x 51 mm (without DIN rail clip)
Mounting Panel mount or DIN rail mount (bracket included)
Configuration  CGI WebGUI, SSH, Telnet, SNMP
