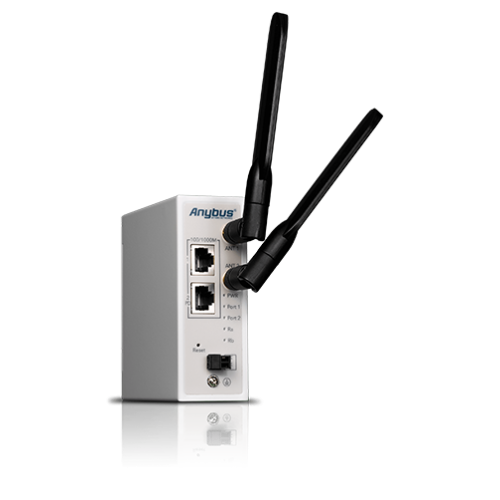

Wireless Access Point IP30 with Mesh

Concurrent dual-band 2.4 GHz and 5 GHz WLAN, up to 867 Mbit/s + 300 Mbit/s bandwidth, IEEE 802.11ac Wave 2 compliant, backward compatible with 802.11a/b/g/n

Wireless Access Point IP30 with Mesh
Wireless Access Point IP30 with Mesh

FEATURES & BENEFITS

HIGH THROUGHPUT WIRELESS PERFORMANCE

  • Concurrent dual-band 2.4 GHz and 5 GHz WLAN, up to 867 Mbit/s + 300 Mbit/s bandwidth
  • IEEE 802.11ac Wave 2 compliant, backward compatible with 802.11a/b/g/n

MESH SUPPORT

  • Based on Qualcomm® Wi-Fi SON Technology
  • Self-healing auto-rerouting through multi-hop (up to 8 hops)

RUGGED DESIGN FOR INDUSTRIAL APPLICATIONS

  • Rugged design with IP30 or IP67 classed housing
  • Waterproof cable glands for IP67 housing
  • Effective heat dissipation design for operations in -40 to 70oC environments
  • Support for Power over Ethernet, IEEE 802.3af

ENHANCED SECURITY AND REDUNDANCY

  • Firewall for inbound/outbound traffic
  • 1:1 NAT, port forwarding for local traffic protection
  • Works seamlessly with the Anybus Wireless Bridge and Bolt

Ethernet

LAN: 1 x 10/100/1000MBase-T RJ45, auto negotiation, auto-MDI/MDIX
WAN: 1 x 10/100/1000MBase-T RJ45, auto negotiation, auto-MDI/MDIX

Antenna connector

2 x RP-SMA Female

Operating Temperature

-40 to 70 oC, 5 to 95 % RH non-condensing

WLAN standards

IEEE 802.11ac Wave 2 compliant, backward compatible with 802.11a/b/g/n
2.4 GHz / 5 GHz: 2T2R MU-MIMO DBDC (Dual-band dual-concurrent)

Data rates

802.11ac: MCS 0-9, max. 867 Mbit/s

802.11b: 11Mbit/s, 802.11a/g: 54 Mbit/s, 802.11n: MCS 0-15, max. 300 Mbit/s

Mesh

Qualcomm® Wi-Fi SON Technology

USB

-

Power supply

10 - 60 VDC (terminal block) or IEEE 802.3af (48 VDC PoE, Max 11.5W)

Weight

660 g

Housing material

Metal

IP class

IP30

Dimensions

110 x 106 x 40 mm without DIN rail clip

Mounting

DIN rail mount

Configuration

CGI WebGUI, Command Line Interface (CLI), SNMP, Telnet

Security

TLS v1.2, HTTPs/SSH, First login password management
WLAN AP Security: WPA/WPA2-PSK, WPA/WPA2 Enterprise
DMZ, IP/Port Filter
NAT: 1-1 NAT, NAPT(SNAT/DNAT), Port forwarding
VPN: IPSec, OpenVPN, L2TP, GRE

Traffic management

Flow control, Traffic shaping

Network management

IPv4, SNMP v1/v2c/v3, DHCP server/client, SysLog, DDNS, DHCP relay, TFTP, SMTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS client/proxy

Standards

CE Radio: RED Compliance
CE Safety: IEC/EN60950-1,EN 55032, EN55035, EN51000-3-2,
EN61000-3-3, EN301489-1/17, EN300328, EN301893, EN300400,
N62311MPE
FCC part 15B Class A

Product parts included

1 x access point with DIN rail clip
AWB5141: Antennas NOT included
